Bobrick B-4221 Surface-Mounted Seat-Cover Dispenser,Bobrick B-4221 Surface-Mounted Seat-Cover Dispenser
Product Details

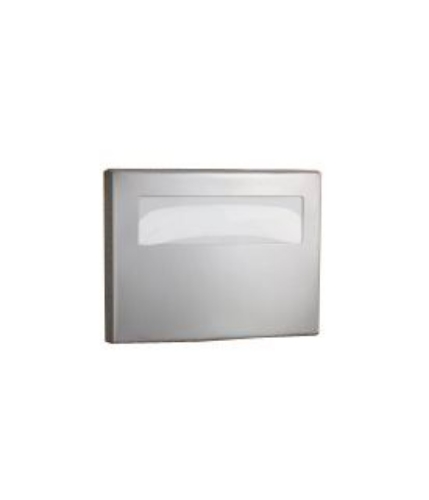

Bobrick B-4221 ConturaSeries ®Surface-Mounted Seat-Cover Dispenser
OPERATION:
Dispenser holds single- or half-fold paper toilet-seat covers. Dispenser fills from bottom through concealed opening. Capacity:
250 toilet seat covers.
INSTALLATION:
Mount unit on wall or partition of toilet compartment with two screws (not furnished) at points indicated by an S. For plaster
or dry wall construction, provide concealed backing to comply with local building codes and secure with #8 x 1-1/2'' (4.2 x
38mm) sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws,
or provide 1/8'' (3mm) toggle bolts or expansion bolts.
Note: Provide a 5'' (125mm) minimum clearance from bottom of dispenser to top of any horizontal projection to provide room
for filling dispenser from bottom.
MATERIALS:
18-8 S, type-304, 20-gauge (1.0mm) stainless steel with satin finish. Drawn, one-piece, seamless construction. Front of dispenser
has same degree of arc as other Bobrick ConturaSeries washroom accessories. Radius on corners and edges complement
other ConturaSeries accessories.
Model:Bobrick B4221
