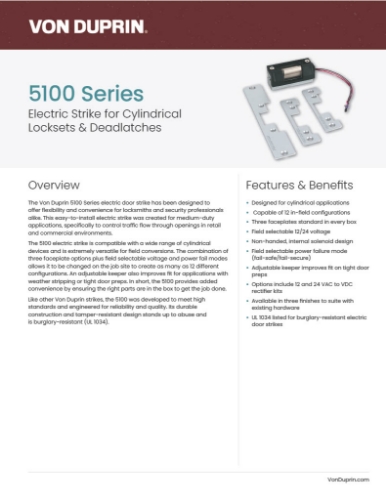

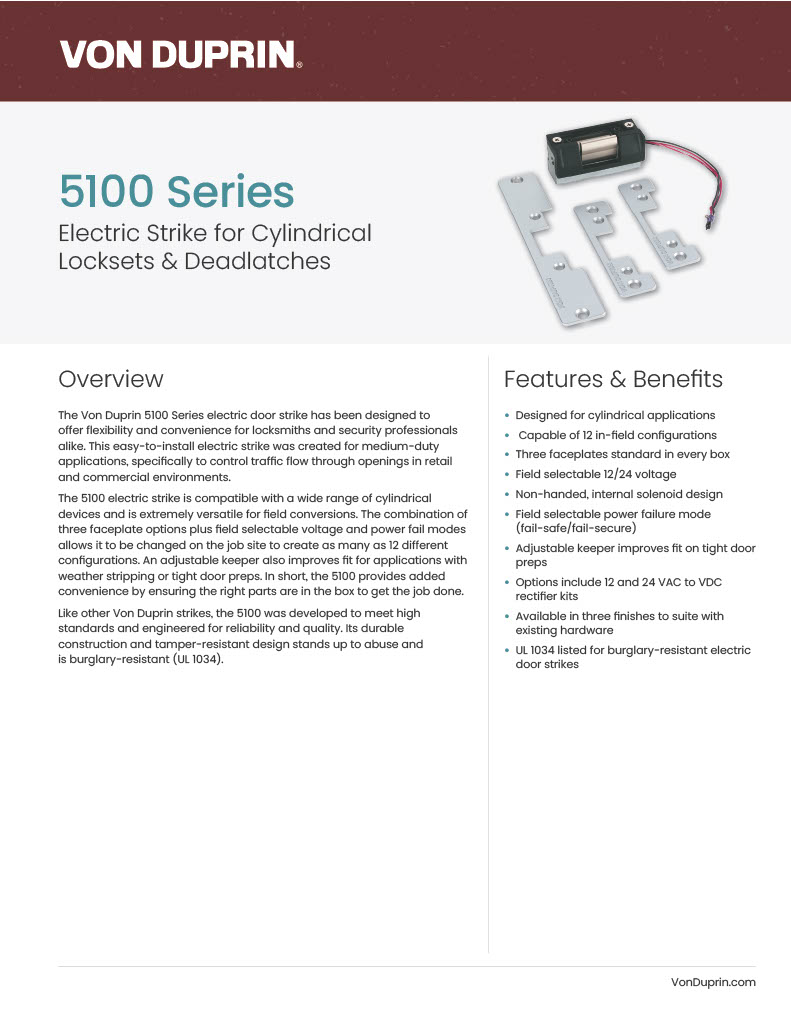

Von Duprin 5100 Series Electric Strike

Von Duprin 5100 Series Electric Strike

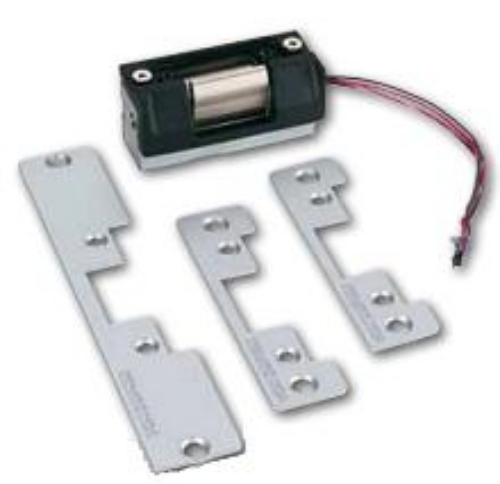

Three faceplates included for hollow metal, wood or aluminum frames.

Fail-safe/fail-secure selectability.

Developed with Von Duprin's high standards and engineering expertise.

Heavy-duty construction Tamper resistant design Tested to over one million cycles 1000 lbs. holding strength 70 lbs. impact strength.

Features and Benefits

12/24 dual-voltage  Adjustable keeper  Internal solenoid  Non-handed  Backbox depth of 1 11/16"   Keeper depth of 1/2" Mounting tabs  Retrofit kit  Illustrated installation instructions  Tamper resistant  1 year electrical product warranty  Continuous duty operation  Heavy duty construction

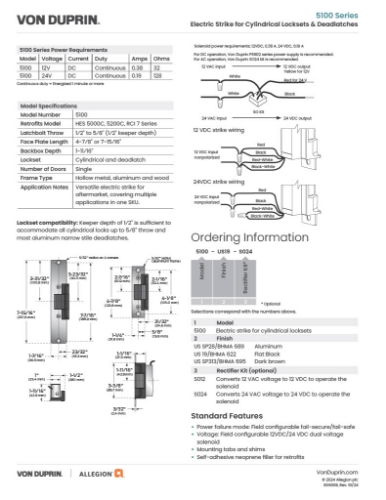

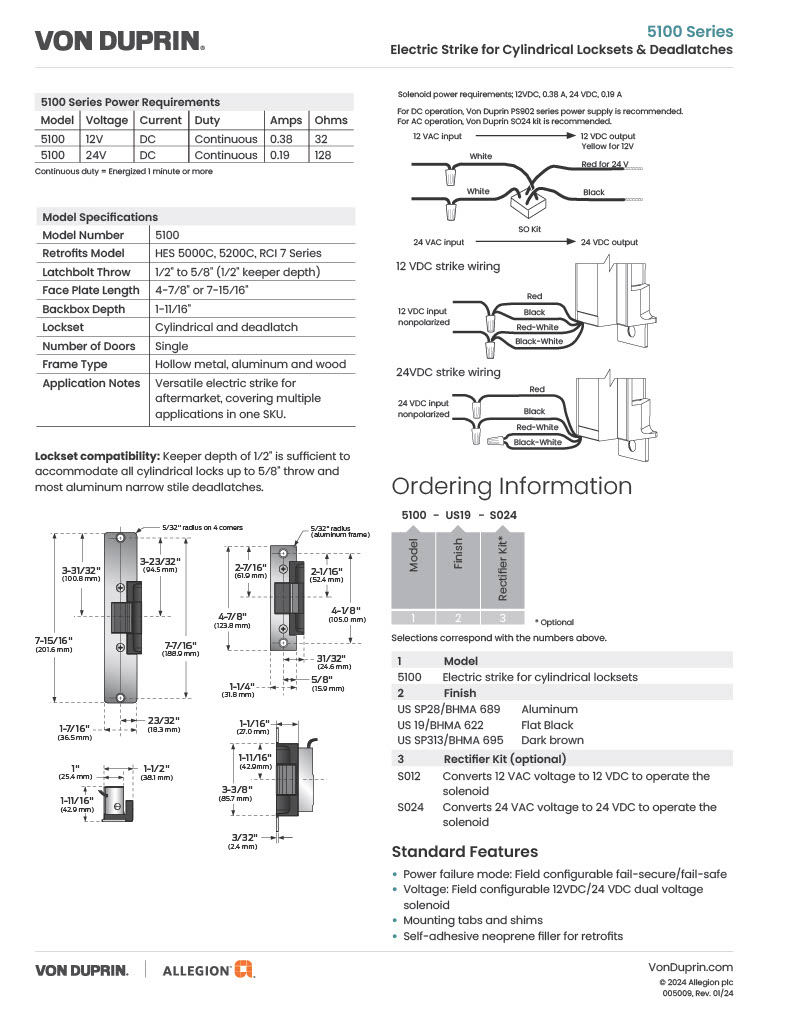

Dimensions

Backbox: 3 3/8" x 1x 1 11/32" -  Overall Strike Depth: 1 11/16"

Faceplates: - 4 7/8" round corner ANSI A115.2 standard frame prep - 4 7/8" square corner ANSI A115.2 standard frame prep - 7 15/16" long, round corner wood frame prep

Keeper pocket: 1 7/16-L x 1/2-D x 11/16- 13/16-W (adjustable) Lip Attachment cut-out depth: 1 1/16-

Power Options

DC: Regulated Power Supplies (Recommended) - PS902 Power Supply

DC: 24V Unregulated Power Supplies (Acceptable) - Schlage 593 PI-24DC (Plug-In) - Schlage 592-24RC (Hard-Wired)

AC/DC Conversion: - Von Duprin SO-24 Kit

Model:Von Duprin, 5100, 150028, 5100313, 5100BLK, 15002812/24V, 150031312/24V, 1500BLK12/24V.

Specifications

ANSI/BHMA 156.5 Grade 1

UL 1034 Burglary Listing

12VDC - Resistance (Ohms) 32, Power (watts) 4.5, Current (amps) 0.38

24VDC  - Resistance (Ohms) 128, Power (watts) 4.5, Current (amps) 0.19

All specs - 10% @77-F/25-C
