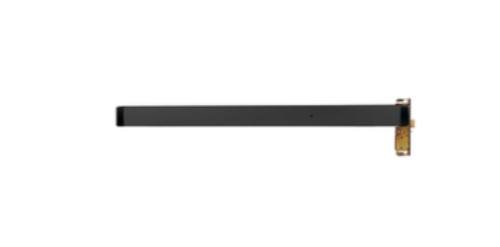

Adams Rite 8430 Narrow Stile Mortise Exit Device - Black Anodized Faceplate

Adams Rite 8430 Narrow Stile Mortise Exit Device -  Black Anodized Faceplate

Specifications:

Stile Width: Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

8400 Series Certifications: UL 305 Panic Hardware, ANSI/BHMA A156.3 Grade 1, California State Fire Marshall,New York City MEA

Handing: Specify handing and bevel if applicable.

Pushbar Length: Standard sizes: dimensioned for 30", 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width.

Backset: Backsets available in 31/32", 1-1/8", and 1-1/2"

Face Shape:  Flat, Radius, Beve

Door Thickness: Suits 1-3/4" standard. Can be modified for thicker doors.

Projection: 2-5/8" when fully projected, 1-5/8"when dogged.

Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam (not included).

For Mortise CylindersClick Here.

Dogging: Standard dogging with hex key or cylinder dogging option.

Fasteners: Standard self-tapping screws.

Warranty: Five year limited.

Strike: Standard strike included.

Features:

• Heavy duty deadlatching mechanism

• Strong, durable construction for a high level of security

• Easy to install

• Clean, unobtrusive design

• Fits standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors

Model:8430-27130, 8430-37130, 8430-47130, 8430-28130, 8430-38130, 8430-48130, 8430-27136, 8430-37136, 8430-47136, 8430-28136, 8430-38136, 8430-48136, 8430-27142, 8430-37148, 8430-47142, 8430-28148, 8430-38142, 8430-48148
