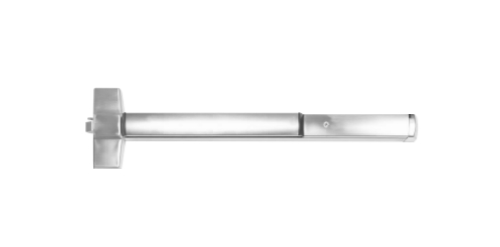

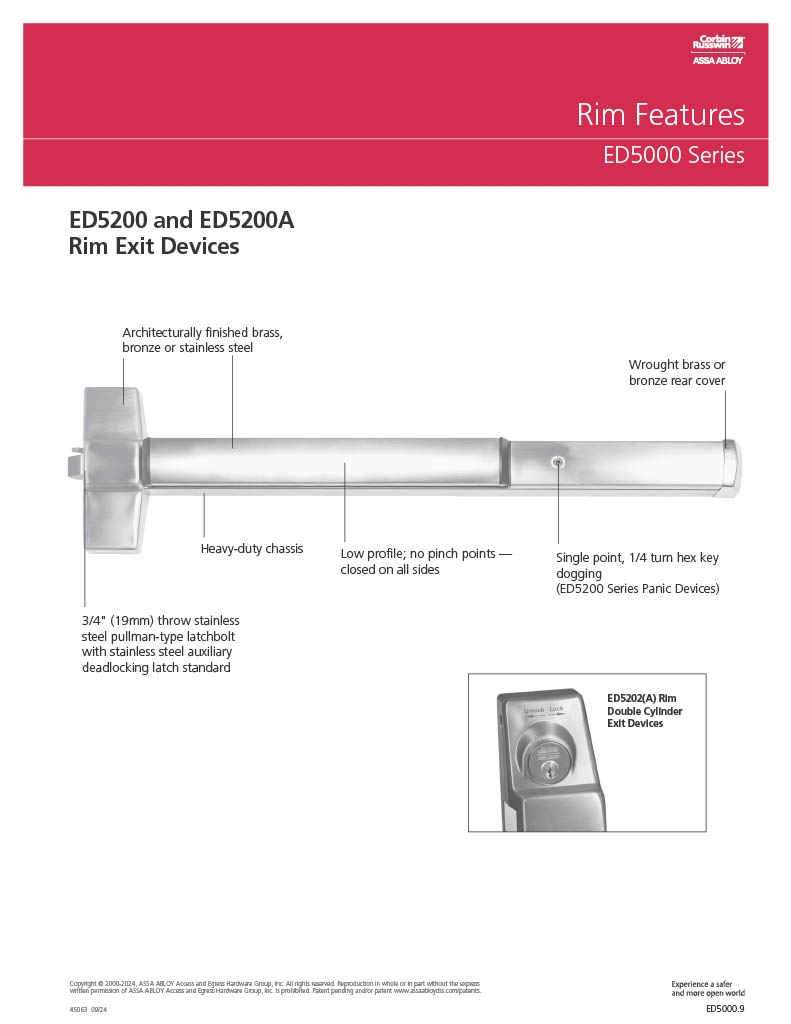

Corbin Russwin ED5200/5200A Rim Exit Device

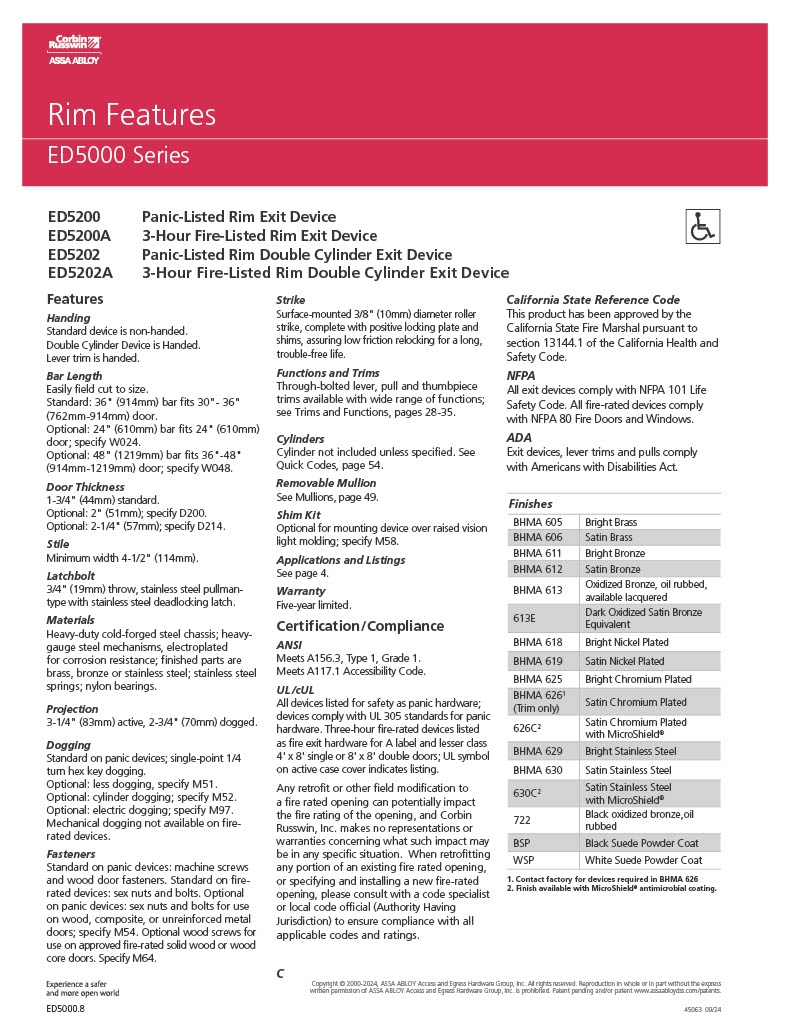

**Features

**Handing:Device is non-handed. Lever trim is handed.

*Bar Length:*Easily field cut to size. Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.

Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.

*Door Thickness:*1-3/4" (44mm) standard.

*Stile:*Minimum width 4-1/2" (114mm).

*Latchbolt:*3/4" (19mm) throw, stainless steel pullman type with stainless steel deadlocking latch.

*Projection:*3-1/4" (83mm) active, 2-3/4" (70mm) dogged.

*Dogging*Standard on panic devices; single-point 1/4 turn hex key dogging.

Optional: cylinder dogging; specify M52.

Mechanical dogging not available on firerated devices.

**Fasteners

**Standard on panic devices: machine screws and wood door fasteners, sex nuts and bolts for use on wood, composite, or unreinforced metal doors.

Standard on fire-rated devices: sex nuts and bolts.

Strike:Surface-mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.

*Functions and Trims:*Through-bolted lever, knob, pull and thumbpiece trims available with wide range of functions; see trims below

Removable Mullion:See below**

*Warranty:*Five-year limited.

ED5200 Corbin Russwin, Corbin Russwin ED5200, ED5200, ED5200CorbinRusswin, CorbinRusswinED5200,ED5200630 Corbin Russwin, Corbin Russwin ED5200630, ED5200630,ED5200630CorbinRusswin, CorbinRusswinED5200630,ED5200 630 Corbin Russwin, Corbin Russwin ED5200 630, ED5200 630,ED5200630CorbinRusswin, CorbinRusswinED5200054,Corbin Russwin ED5000, ED5000 Corbin Russwin, Corbin Russwin ED5000

Materials:Heavy-duty cold-forged steel chassis; heavy-gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Certification/Compliance

ANSI:Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code.

*UL /cUL:*All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on active case cover indicates listing.

**California State Reference Code

**This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

*NFPA:*All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.

*ADA:*Exit devices, lever trims and pulls comply with Americans with Disabilities Act.
