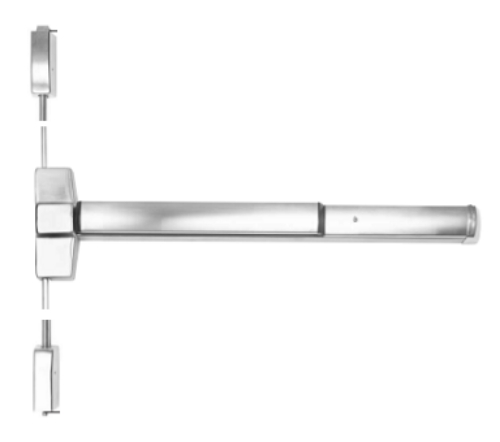

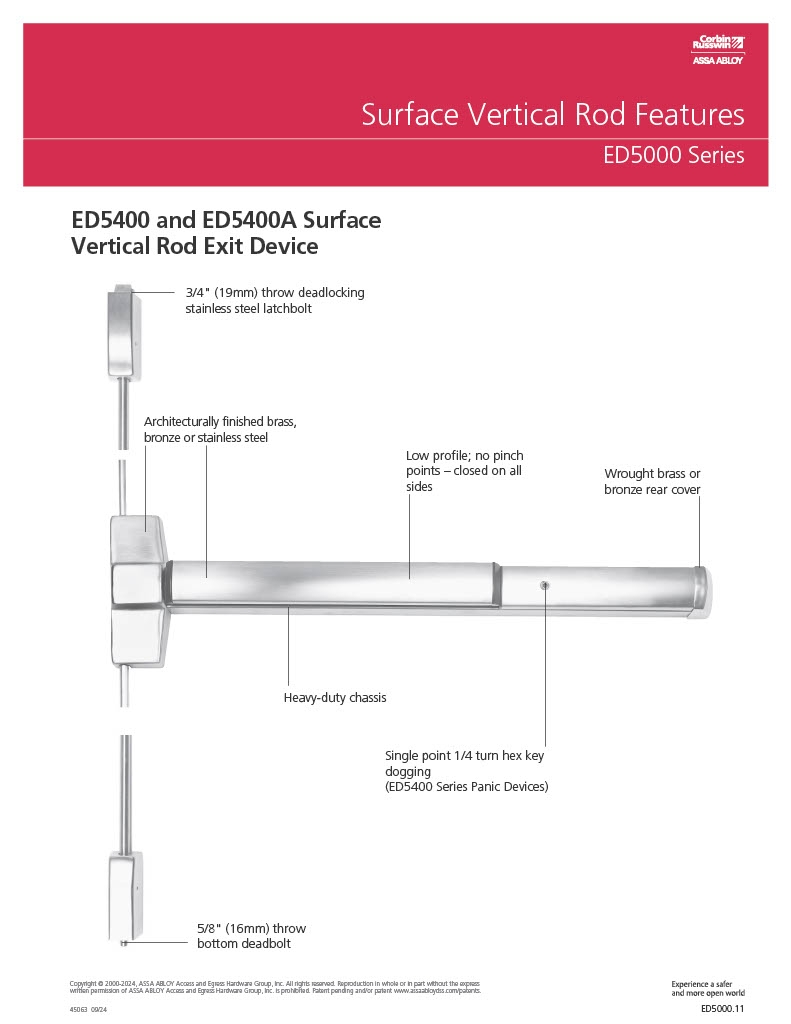

Corbin Russwin ED5400 Panic-Listed Surface Vertical Rod Exit DeviceED5400A 3-Hour Fire-Listed Surface Vertical Rod Exit Device

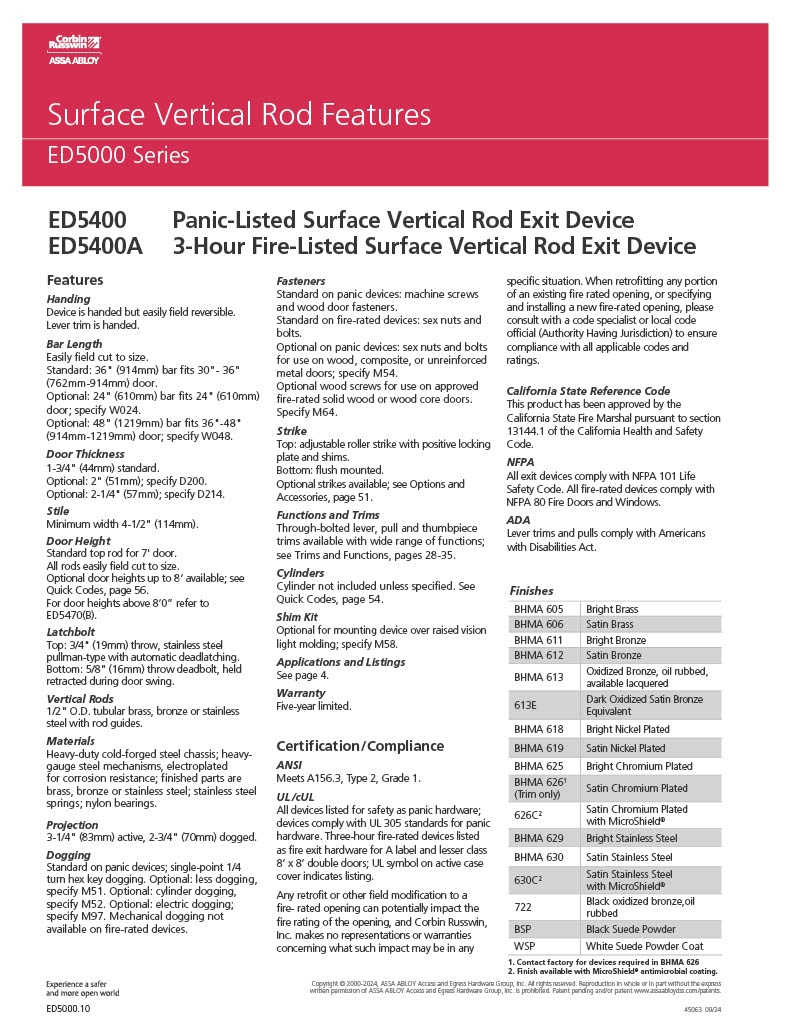

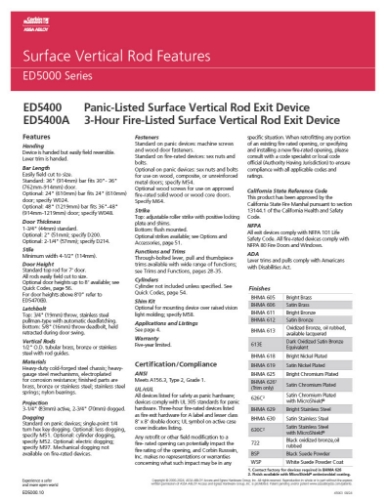

Features:
*
*Handing:
Device is handed but easily field reversible.
Lever trim is handed.
Bar Length:
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm) door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.
Door Thickness:
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile:
Minimum width 4-1/2" (114mm).
Door Height:
Standard top rod for 7' door.
All rods easily field cut to size.
Optional door heights up to 8' available.
For door heights above 8' refer to ED5470(B).
Latchbolt:
Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching.
Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
Vertical Rods:
1/2" O.D. tubular brass, bronze or stainless steel with rod guides.
Materials:
Heavy-duty cold-forged steel chassis; heavygauge steel mechanisms, electroplated
for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.
Projection:
3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
Dogging:
Standard on panic devices; single-point 1/4
turn hex key dogging. Optional: less dogging,
specify M51. Optional: cylinder dogging,
specify M52. Optional: electric dogging;
specify M97. Mechanical dogging not available on fire-rated devices.
Fasteners:
Standard on panic devices: machine screws and wood door fasteners.
Standard on fire-rated devices: sex nuts and bolts.
Optional on panic devices: sex nuts and bolts
for use on wood, composite, or unreinforced metal doors; specify M54.
Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.
Strike:
Top: adjustable roller strike with positive locking
plate and shims.
Bottom: flush mounted.
Optional strikes available.
Functions and Trims:
Through-bolted lever, pull and thumbpiece trims available with wide range of functions.
Cylinders:
Cylinder not included unless specified.
Shim Kit:
Optional for mounting device over raised vision light molding; specify M58.
Warranty:
Five-year limited.
Certification/Compliance:
ANSI:
Meets A156.3, Type 2, Grade 1.
UL /cUL:
All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 8' x 8' double doors; UL symbol on active case cover indicates listing.
Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
California State Reference Code:
This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.
NFPA:
All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.
ADA:
Lever trims and pulls comply with Americans with Disabilities Act.
