Schlage 30-002E 138 Mortise Cylinder For Schlage L Series Mortise Locks W/ Rose Trim - 1-3/8" (L9485, L9486)
Product Details

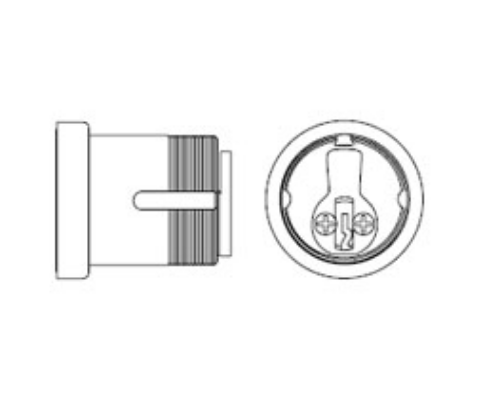

Schlage 30-002E 138 Mortise Cylinder For Schlage L Series Mortise Locks W/ Rose Trim - 1-3/8" (L9485, L9486)
E - Keyway
cylinder with compression ring & spring

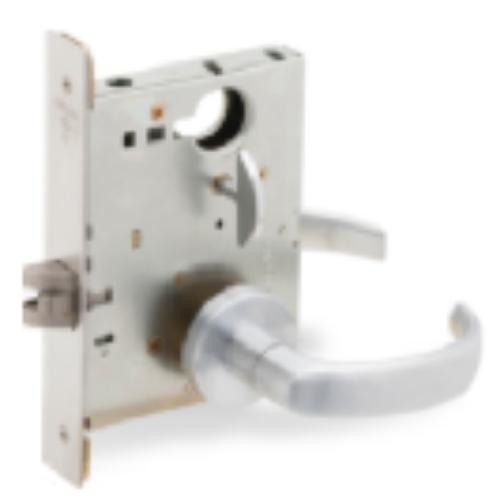

For Schlage L9485, L9486 Hotel Functions
Certification BHMA certified to ANSI A156.5, 2001, Grade 1 Operational
Standard Cylinder Solid Brass 6 pin plugs and shells. Mortise cylinders utilize a two piece Stainless Steel sintered housing secured by 2 Torx® screws.
Furnished Keyed Different (KD) with two 6 pin nickel silver keys
Model:30002E-138-626, 30002E-138-626, 3002E138626
