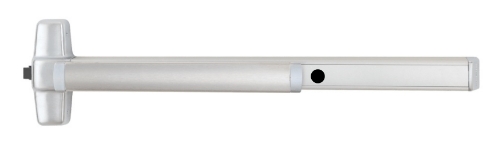

Von Duprin CDXP98EO / CDXP99EO Rim Panic Exit Device - Heavy Protection - Cylinder Dogging

Von Duprin CDXP98EO/CDXP99EO Series Touch Bar Exit Device, Exit Only, Heavy Protection, Cylinder Dogging

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs.

For increased security the XP98/99 Rim Exit Device has a static load force resistance of more than 2,000 pounds, twice that of standard rim exit devices. The two-piece latch bolt forms a 90 latch-to-strike contact. With a door loaded to 250 pounds, XP98/99 requires less than 40 pounds of pressure to open, 25% less than the safety code requires. XP98 and XP99 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

Cylinder dogging (CD) - Cylinder dogging is available on all 98/99 Panic exit devices to replace the standard hex key dogging. Unit requires a standard 1 1/4" (32mm) mortise cylinder with an inverted straight cam.

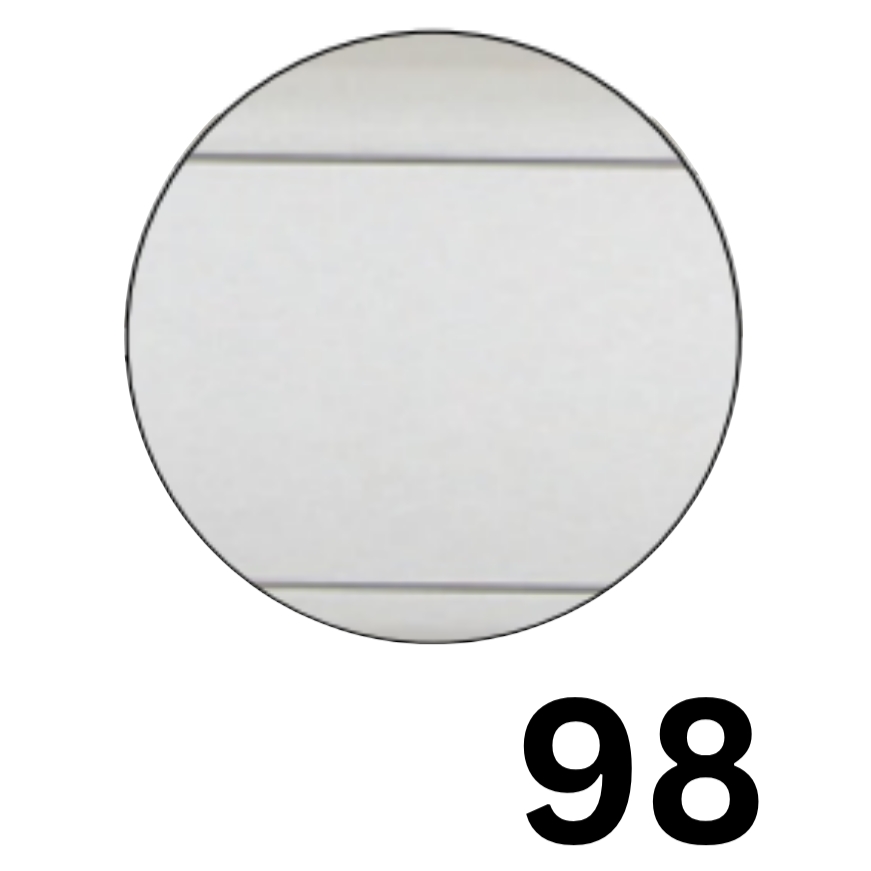

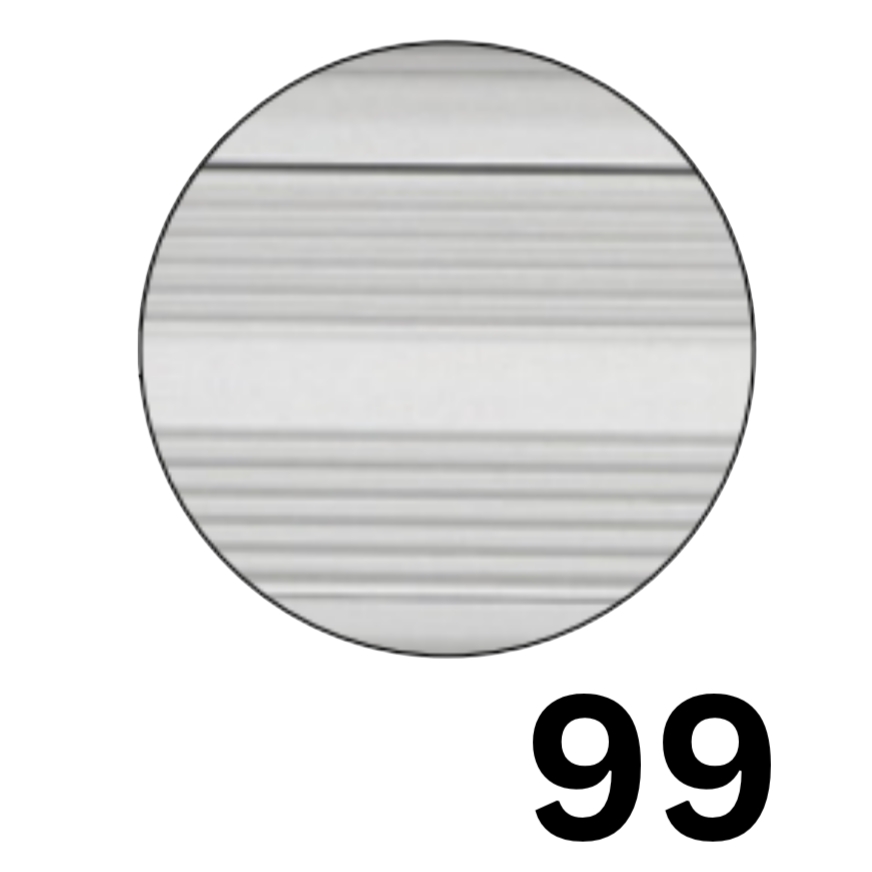

The XP98 device has a smooth mechanism case and the XP99 device has a grooved case.

Specifications:

Device lengths: - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Latch Bolt: 3/4" (19mm) throw latch bolt

Strike: - Device is furnished with standard 299 strike in dull black finish

Dogging: - Hex key dogging Comes standard on 98/99 exit devices

Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm)

Latch bolt Deadlocking: - 3⁄4" (19mm) throw

Handing: - Non handed

Finishes: 628, 626, 612, 710, 630, 606, 625, 605, 619, 711, 613 (619 and 630 available with 98 Series only).

Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Model: Von Duprin XP98, XP99, XP98EO, XP99EO, XP98/XP99, XP98/XP99EO, US3, US4, US10, US10B, US26, US26D, US28, US32D
