Von Duprin M996L Motorized Lever Trim

**Von Duprin M996L Motorized Lever Trim

**

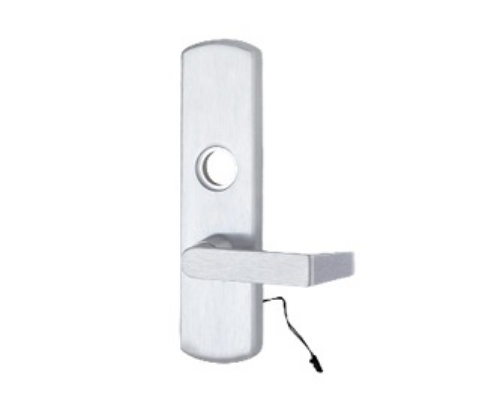

M996L/L-BE Motor driven electrified trim:

M996L/L-BE motor driven electrified breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented vandal-resistant trim design. The motor can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. M996 is furnished fail safe (FS) and convertible to fail secure (FSE) via dip switch.

Specification: * *Dual voltage: up to 1.12 amps @ 12 VDC Up to .59 amps @ 24 VDC

Device type:R/V (rim/surface or concealed vertical rod) or M (mortise)

Handing:RHR is furnished standard if not specified. Field reversible

Lever style:(06 lever is furnished standard). #01 #02 #03 #05 #06 #07 #12 (Handed) #16 #17 #18

Cylinder Type: - Rim or Vertical Rod Device - Rim  - Mortise Lock Device - 1-1/4" Mortise

Finish:US3, US4, US10, US10B, SP313, US26, US26D, SPBLK, US15

Solenoid Continuous Duty 24VDC Solenoid Draw 0.22 amp
