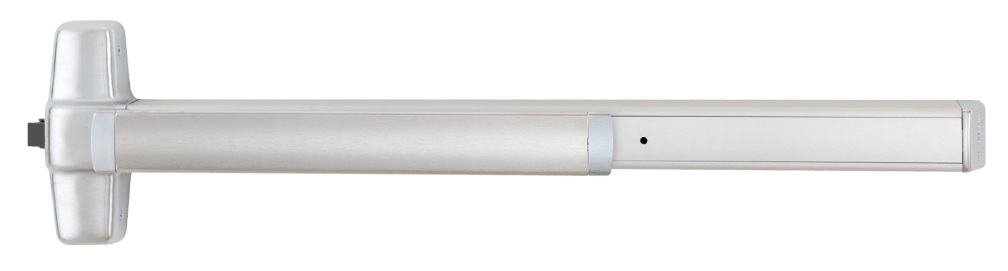

Von Duprin 98EO / 99EO Rim Panic Exit Device

The Von Duprin 98EO and 99EO are wide-stile heavy-duty rim panic exit devices in the 98/99 Series, the Allegion platform specified by architects on most higher education, K-12 school, hospital, hospitality, and government building openings in North America. EO stands for Exit Only, meaning the device pushes from the inside but has no outside trim (use it on doors that need free egress with no outside re-entry, or pair it with a separate trim from the 98/99 Series Trims family for outside lever or pull access). Modular design lets you upgrade the same body to add electrified options, request-to-exit switches, alarm kits, or trims as the facility's needs change. ANSI/BHMA A156.3 2014 Grade 1 certified, UL Listed for panic hardware, with optional fire-rated configuration. Available in 3-foot and 4-foot device lengths and 11 finishes. Standard hex key dogging included; cylinder dogging optional. Non-handed body. SKU 98/99EO. In stock.

98 vs 99: Smooth Case vs Grooved Case

The mechanical guts of the 98EO and 99EO are identical. The only difference is aesthetic: the 98 device has a smooth mechanism case and the 99 device has a grooved mechanism case. Most architects spec the 99 grooved-case version as the default for new construction because the grooved profile is the recognizable Von Duprin look that matches the existing hardware schedule on most institutional openings. Spec the 98 smooth case when the door schedule calls for a cleaner contemporary aesthetic or when matching existing 98 series hardware on a building. Two finishes are 98-only: Satin Stainless Steel US32D (630) and Satin Nickel US15 (619).

Specifications

Function: rim panic exit device, exit only, no outside trim. Device lengths: 3-foot device fits 28" to 36" door width (711 mm to 914 mm); 4-foot device fits 34" to 48" door width (864 mm to 1219 mm). Device centerline from finished floor: 39-13/16" (1011 mm), or 39-11/16" (1008 mm) with mullion. Center case: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm). Mechanism case: 2-1/4" x 2-1/4" (57 mm x 57 mm). Latchbolt: 3/4" (19 mm) throw deadlocking latchbolt. Strike: standard 299 strike included in dull black. Pushbar projection: 3-13/16" (97 mm) neutral, 3-1/16" (78 mm) depressed. Dogging: hex key dogging standard (cylinder dogging CD optional, less dogging LD optional). Handing: non-handed (universal). Door thickness: includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) metal or wood doors. Optional 425 SNB sex bolt available. Compliance: ANSI/BHMA A156.3 2014 Grade 1, UL Listed for panic hardware, fire-rated optional, covers 86 or 161 cutouts on stock hollow metal doors.

Configuration Options

Eight standard finishes plus three additional 98-only finishes: 605 Polished Brass, 606 Dull Brass, 612 Dull Bronze, 625 Polished Chromium, 626 Dull Chromium (US26D), 626AM, 628 Anodized Aluminum (US28), 710 Duranodic Dark Bronze, 711 Black, 643e Aged Bronze; plus 619 Satin Nickel and 630 Satin Stainless Steel for 98 series only. US10B Oil Rubbed Bronze available. Electrical options: standard mechanical, EL Electric Latch Retraction, QEL Quiet Electric Latch Retraction, RX Request-to-Exit Switch, ALK Alarm Kit. Dogging options: standard hex key, CD cylinder dogging less cylinder, CD with cylinder, LD less dogging (specify when ordering electric variant). Fire-rated option available.

Where to Specify

The 98EO/99EO is the right specification for high-traffic, high-abuse panic openings: K-12 schools, higher education, hospitals, government and municipal buildings, hospitality, and any commercial opening where ANSI Grade 1 panic hardware is required. The "EO" exit-only configuration is correct when the opening is exit only (stairwell discharge, emergency-only doors) or when the outside trim will be specified separately. Pair with cylindrical or mullion strikes for double doors; the device covers 86 or 161 cutouts on stock hollow metal doors.

Recommended Trims and Accessories

Most 98EO/99EO installs need an outside trim or accessory. Common pairings: 996L Lever Trim for re-entry openings, 996L-NL Nightlatch Lever Trim for openings that need keyed re-entry, 996L-BE Blank Escutcheon Lever for non-keyed re-entry, 996L-DT Dummy Trim Lever for matching aesthetic without function, 990DT Dummy Trim and 990NL Nightlatch Trim for non-lever installs, 110-NL Night Latch Cylinder Mounting Assembly for keyed cylinder pulls, 1609 Double Door Strike for double-door installations, and M996L Motorized Lever Trim for access-control integrated lever applications.

Where This Sits in the Von Duprin Catalog

The 98EO/99EO lives in Von Duprin 98/99 Rim Exit Devices under 98/99 Series Exit Devices within the Von Duprin Panic Devices and Accessories catalog, in the broader Panic Exit Devices section of Exit Hardware.
