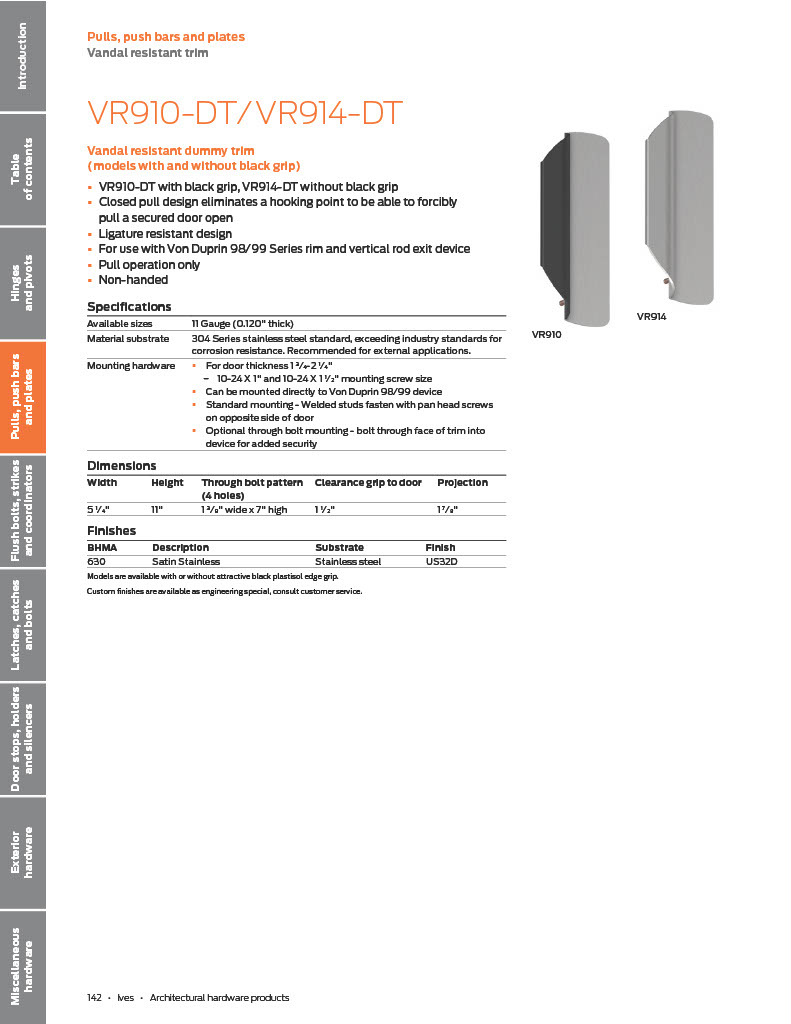

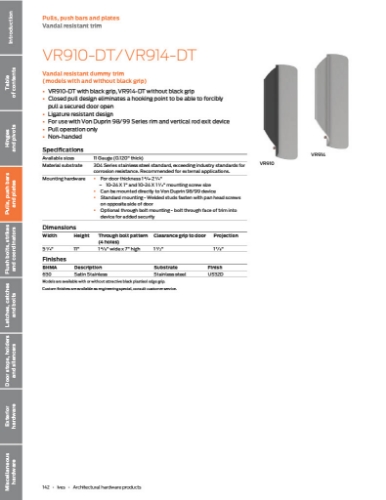

Ives VR910DT S32D Vandal Resistant Dummy Trim, Use with Von Duprin 98/99 Series Rim and Vertical Rod Devices

Ives VR910DT Vandal Resistant Trim, For Von Duprin 98/99 Series

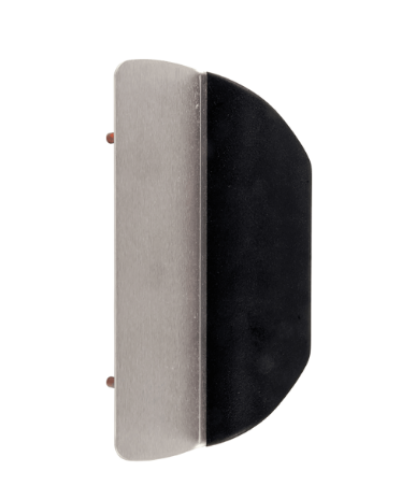

VR910 grip coated in black plastisol for softer touch and resilience to temperature extremes. Grip designed for comfortable operation.

Size: 5-1/4" (133mm) w x 11" (279mm) h

1-1/2" (38mm) clearence from grip to door, total projection 1-7/8" (48mm)

Features:

Stainless Steel construction, 11 gage (0.120" thick)

Finish: US32D, only

Thru-bolts and rugged mounting screws for maximum fastening strength.

Built-in lock protector prevents vandalism to mortise latchbolt (available on certain models).

Extra-tough stainless steel cylinder collar prevents pipe wrench or similar tool from damaging cylinder. Tapered design prevents side impacts from transferring directly to cylinder.

Collar spins freely.

Furnished with mounting screws for door thicknesses of 1-3/4" to 2-1/4"

Meets ANSI/BHMA 156.13, Trim Security Test and California State Accessibility Standards Title 24.
