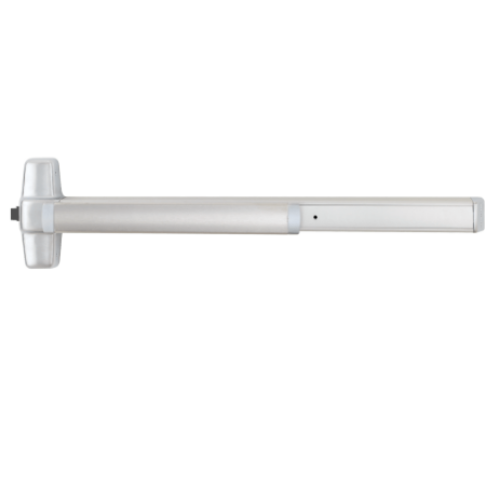

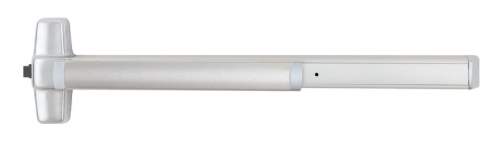

Von Duprin XP98EO/XP99EO Series Touch Bar Exit Device, Exit Only, Heavy Protection
The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs.
For increased security the XP98/99 Rim Exit Device has a static load force resistance of more than 2,000 pounds, twice that of standard rim exit devices.
The two-piece latch bolt forms a 90 latch-to-strike contact. With a door loaded to 250 pounds, XP98/99 requires less than 40 pounds of pressure to open, 25% less than the safety code requires. XP98 and XP99 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

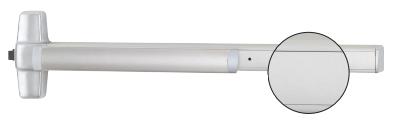

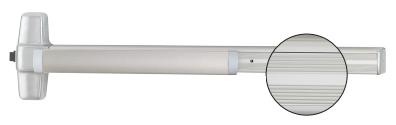

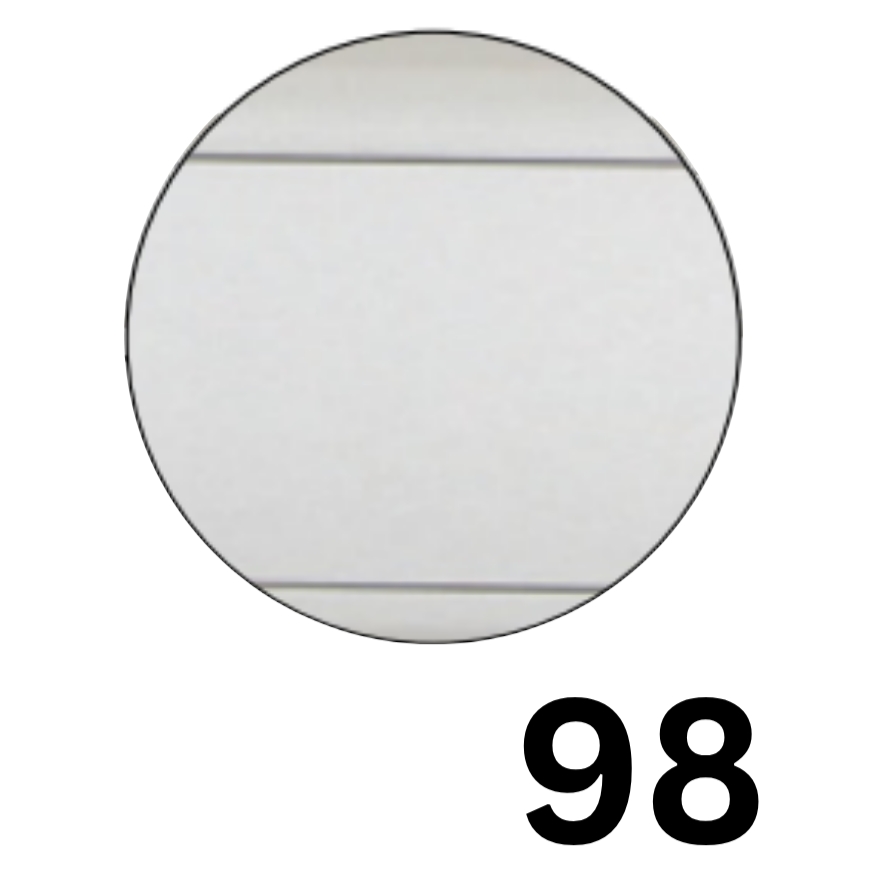

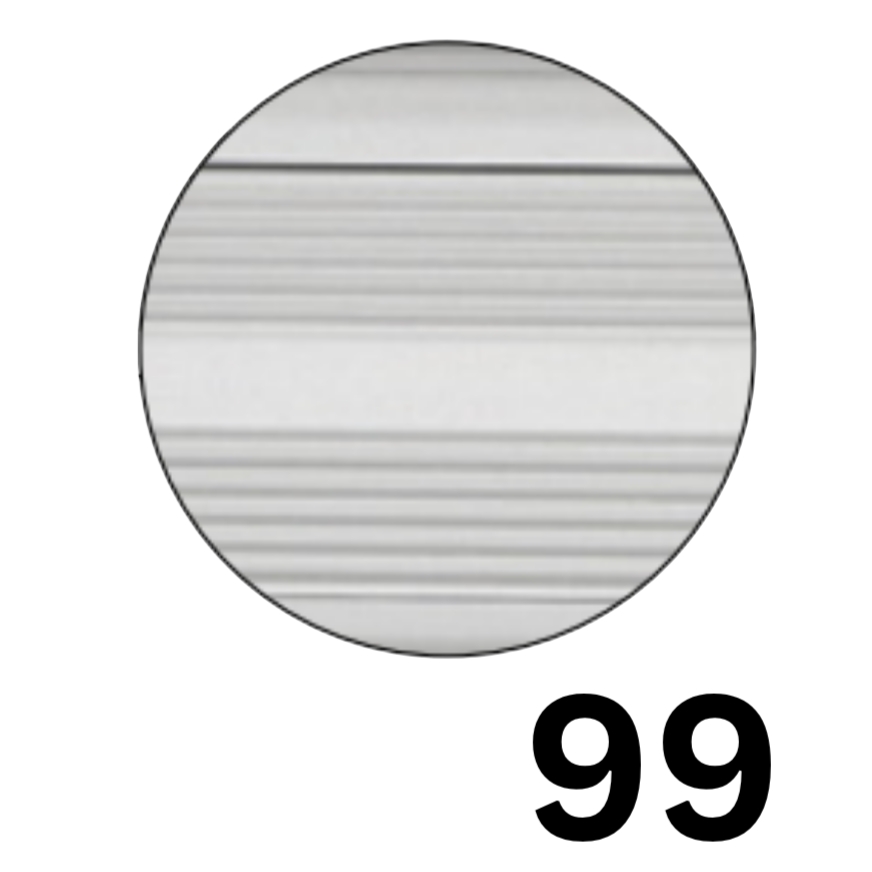

The XP98 device has a smooth mechanism case and the XP99 device has a grooved case.
Specifications:
Device lengths:**
- 3' Device, 2'4' to 3' (711mm to 914mm) Door size
- 4' Device, 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
- 39 13⁄16" (1011mm)
- 39 11⁄16" (1008mm) with mullion
Center case:
- 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case:
- 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Latch Bolt:
3/4" (19mm) throw latch bolt
Strike:
- Device is furnished with standard 299 strike in dull black finish
Dogging:
- Hex key dogging Comes standard on 98/99 exit devices
Projection:
- Pushbar neutral - 3 13/16" (97mm)
- Pushbar depressed - 3 1/16" (78mm)
Latch bolt Deadlocking:
- 3⁄4" (19mm) throw
Handing:
- Non handed
Finishes:
- 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB):
- Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)
Model: Von Duprin XP98, XP99, XP98EO, XP99EO, XP98/XP99, XP98/XP99EO, US3, US4, US10, US10B, US26, US26D, US28, US32D
