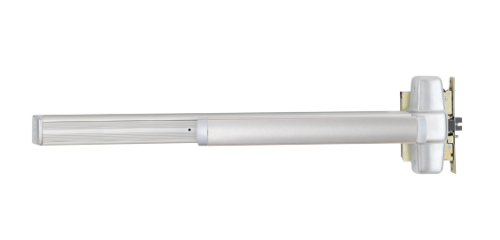

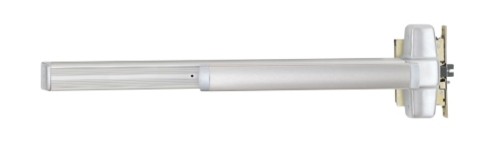

Von Duprin 9875EO / 9975EO Mortise Lock Panic Exit Device*- Exit Only*

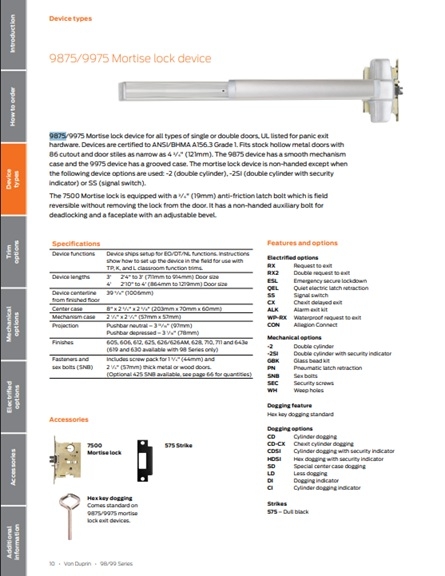

9875/9975 mortise lock device for all types ofsingle or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

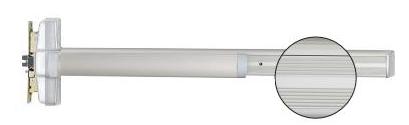

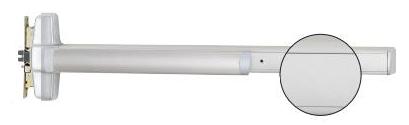

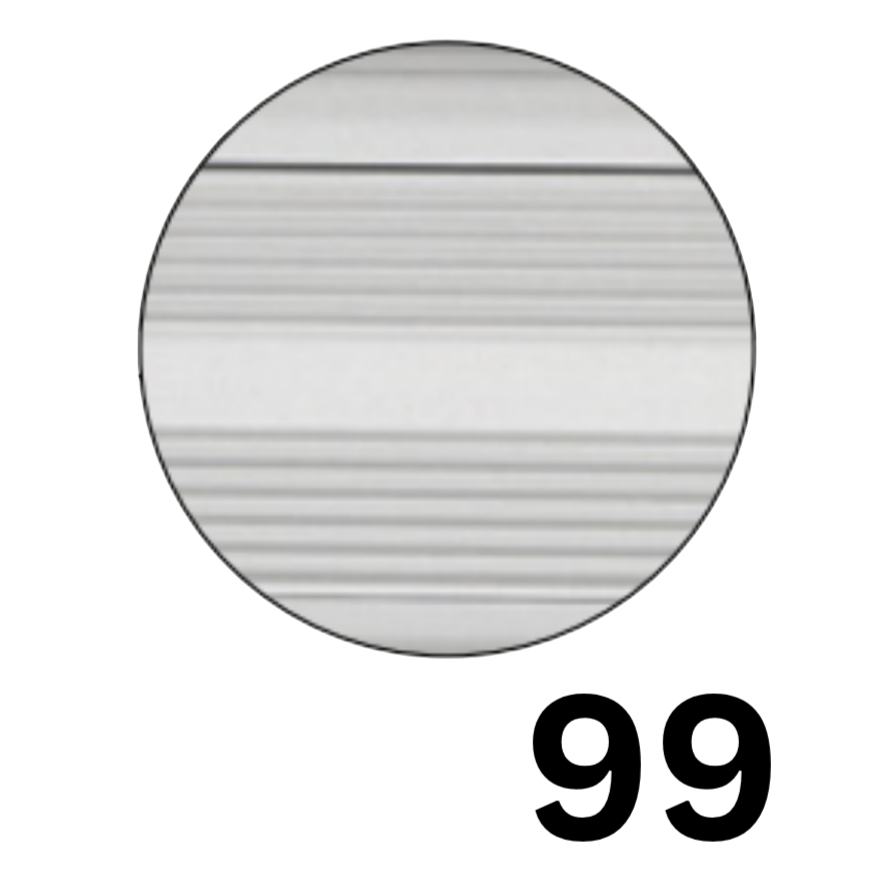

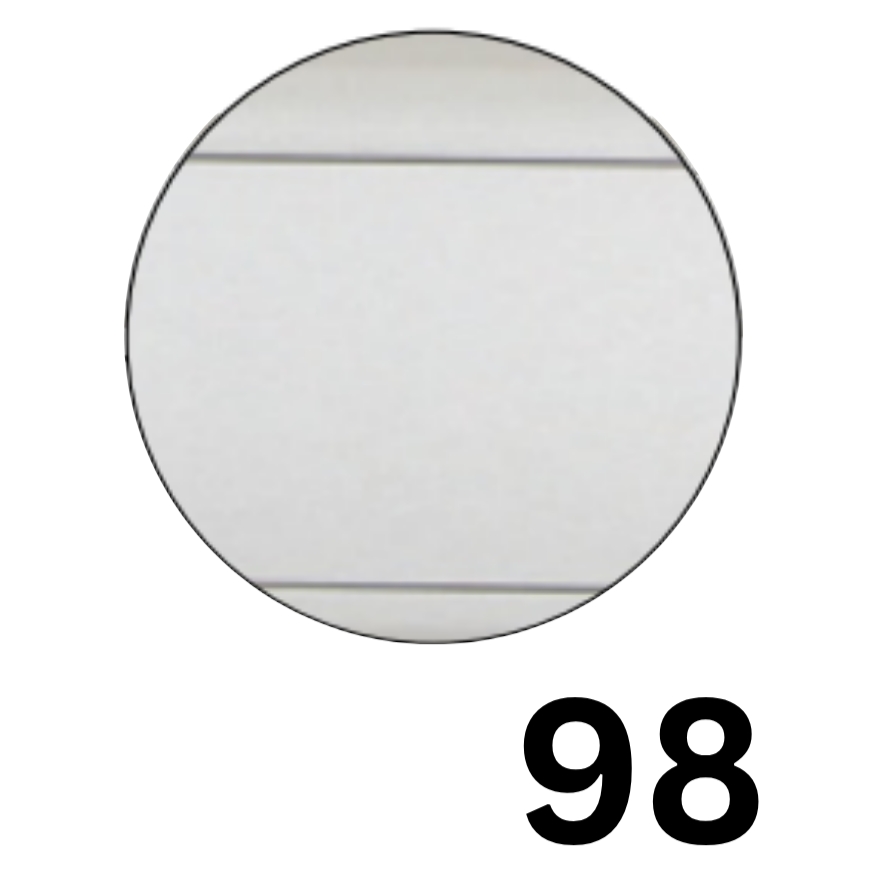

The 9875 device has a smooth mechanism case and the 9975 device has a grooved case.
Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4"
(121mm).
Dogging Feature:Hex key dogging standard
The 7500 Mortise lock is equipped with a 3/4" (19mm)anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Strike:575 Dull Black
Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel-available with 98 Series only
Dimensions:
Device lengths:
- 3' 2'4' to 3' (711mm to 914 mm) Door Size
- 4' 2'10" to 4' (864 mm to 1219 mm) Door Size
Device Centerline from Finished Floor:
- 39-13/16" (1011 mm).
- 39-11/16" (1008 mm) with Mullion.
Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
Projection:
- Pushbar Neutral 3-13/16" (97 mm)
- Pushbar Depressed 3-1/16" (78 mm)
All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
Model: Von Duprin 9875, 9975, 9875EO, 9975EO, RX9875, RX9975, US3, US4, US10, US10B, US26, US26D, US28, US32D
