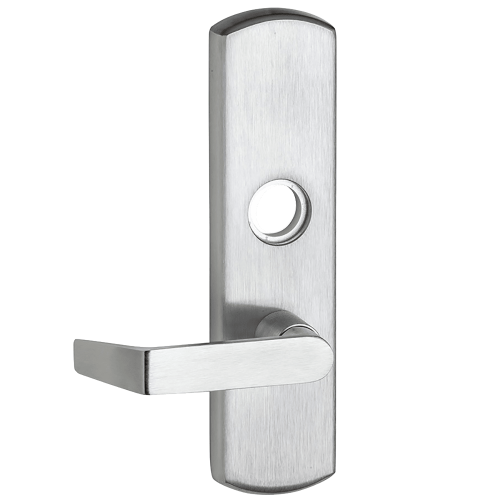

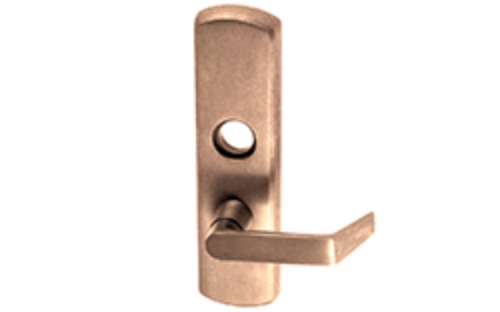

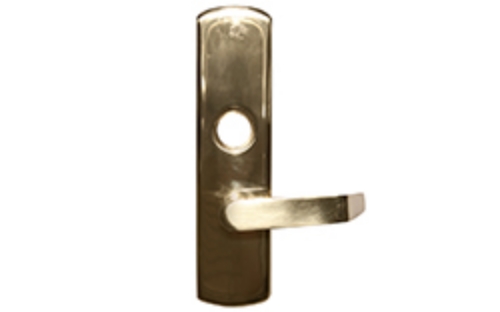

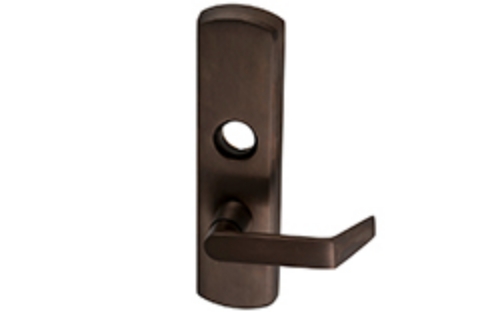

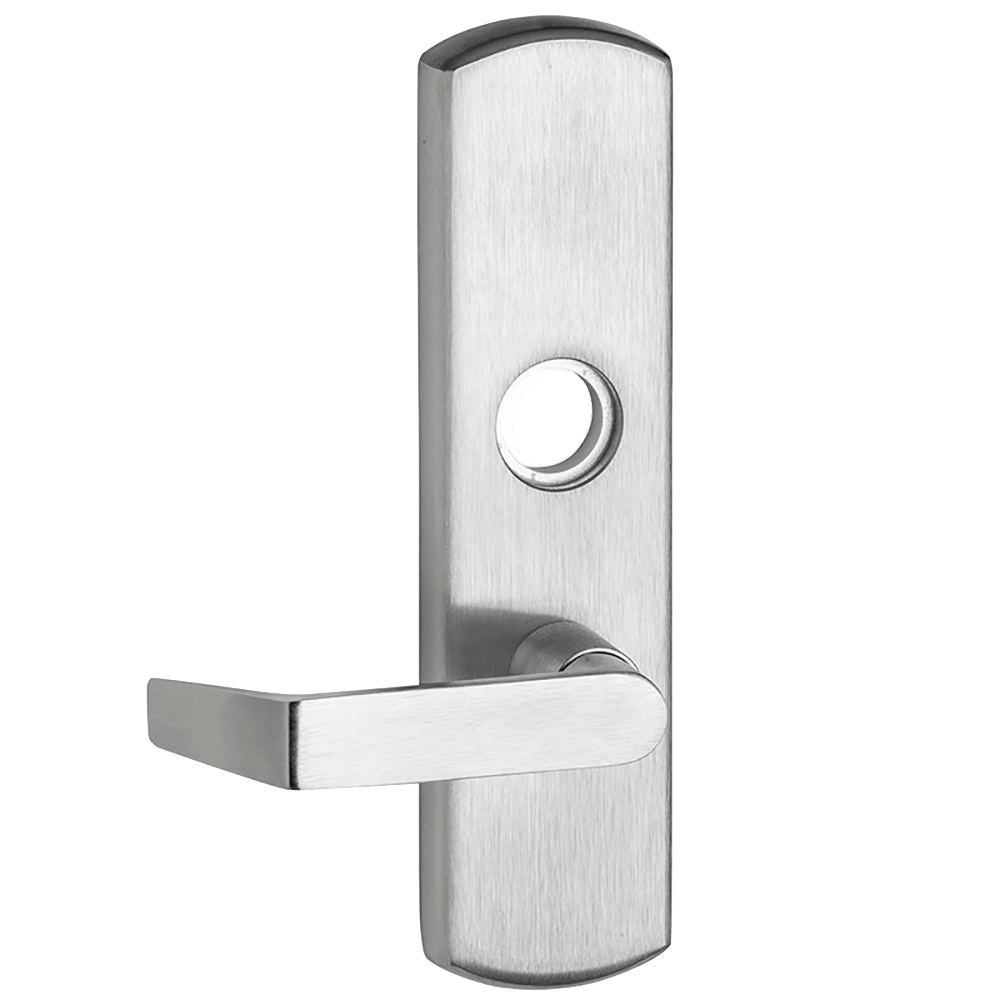

Von Duprin 996L Lever Trim

Von Duprin 996L Breakaway Lever Trim

ANSI Function: 08, Key locks and unlocks lever (Classroom).

Device type: R/V (rim/surface or concealed vertical rod) or M (mortise).

Handing: RHR is furnished standard if not specified. Field reversible.

Lever style: (06 lever is furnished standard). #01 #02 #03 #05 #06 #07 #12 (Handed) #16 #17 #18

Escutcheon Plate Size: 2-3/4" X 10-3/4" X 27/32" (70x273x21mm)

Projection: 2-7/8" (73mm)

Cylinder Type: Rim or Vertical Rod Device - Rim                           Mortise Lock Device - 1-1/4" Mortise

Optional #425 SNB Quantity for Device: 2

Finish: US3, US4, US10, US10B, SP313, US26, US26D, SPBLK, US15

Model: Von Duprin, 996L01M, 996L01R/V, 996L02M, 996L02R/V, 996L03M, 996L03R/V, 996L06M, 996L06R/V, 996L07M, 996L07R/V, 996L12M, 996L12R/V, 996L17M, 996L17R/V, 996L18R/V,
