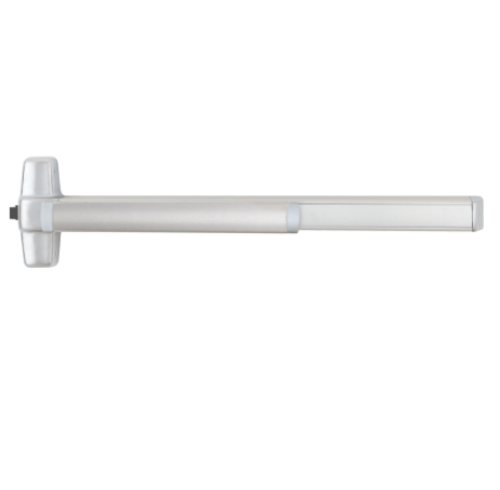

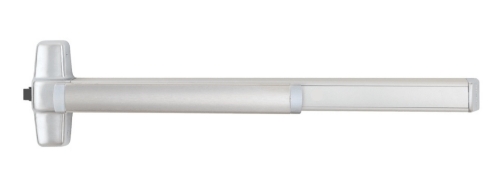

Von Duprin XP98EO-F / XP99EO-F Rim Panic Exit Device - Fire Rated - Heavy Protection

Von Duprin XP98EO/XP99EO Series Touch Bar Exit Device, Exit Only, Heavy Protection

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs.

For increased security the XP98/99 Rim Exit Device has a static load force resistance of more than 2,000 pounds, twice that of standard rim exit devices. The two-piece latch bolt forms a 90 latch-to-strike contact. With a door loaded to 250 pounds, XP98/99 requires less than 40 pounds of pressure to open, 25% less than the safety code requires. XP98 and XP99 rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

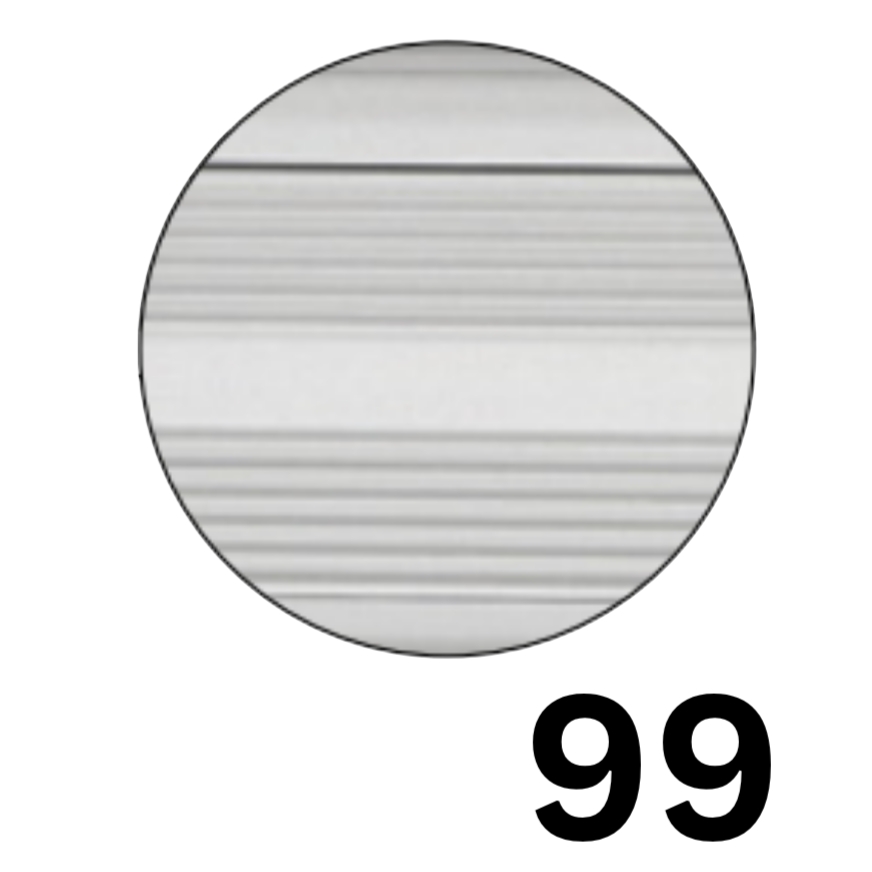

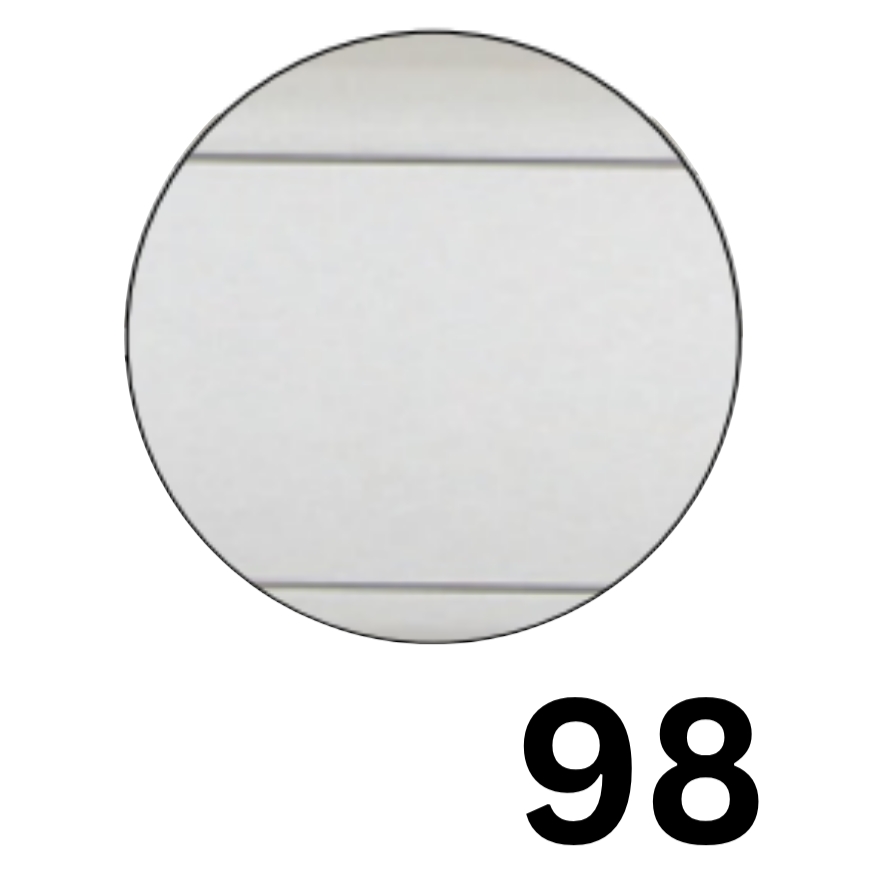

The XP98 device has a smooth mechanism case and the XP99 device has a grooved case.

Specifications: Device lengths:** - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm) Latch Bolt: 3/4" (19mm) throw latch bolt Strike: - Device is furnished with standard 299 strike in dull black finish Dogging: - Hex key dogging Comes standard on 98/99 exit devices Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm) Latch bolt Deadlocking: - 3⁄4" (19mm) throw Handing: - Non handed Finishes: - 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only) Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Model: Von Duprin XP98-F, XP99-F, XP98EO-F, XP99EO-F, XP98/XP99-F, XP98/XP99EO-F, XP98F, XP99F, XP98EOF, XP99EOF, XP98/XP99F, XP98/XP99EOF, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin XP98EO-F / XP99EO-F Rim Panic Exit Device - Fire Rated - Heavy Protection

XP98-F and XP99-F rim fire exit devices for all types of single doors up to 4x 10(1219mm x 3048mm) or 8x 10(2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

The XP98-F device has a smooth mechanism case and the XP99-F device has a grooved case.

No Mechanical Dogging

Latch Bolt: 3/4" (19mm) throw latch bolt

Strike: Device is furnished with standard 909 strike in dull black finish

Fasteners: Includes screw pack for 1(44mm) and 2(57mm) thick metal or wood doors. Optional 425 SNB available for metal doors. 425 & 825 SNB required on wood doors without SLM blocking.

Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size                       4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor: 39-13/16" (1011 mm)                                                       39-11/16" (1008 mm) with Mullion

Center Case Dimensions: 8" x 2-3/4" x 2-3/8(203mm x 70mm x 60mm)

Projection: Pushbar Neutral 3-13/16" (97 mm)                 Pushbar Depressed 3-1/16" (78 mm)

Model: Von Duprin XP98-F, XP99-F, XP98EO-F, XP99EO-F, XP98/XP99-F, XP98/XP99EO-F, XP98F, XP99F, XP98EOF, XP99EOF, XP98/XP99F, XP98/XP99EOF, US3, US4, US10, US10B, US26, US26D, US28, US32D
