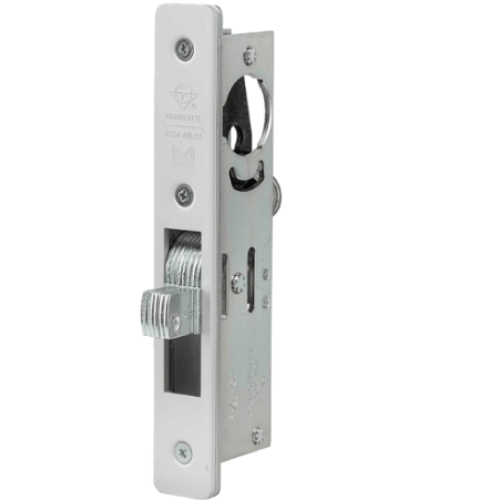

Adams Rite 1830-03-628 Bottom Rail Deadlock - 1-1/8" Cylinder Height - Clear Anodized

Adams Rite 1830-03-628 Bottom Rail Deadlock (Swingbolt) - 1-1/8"*Cylinder Height - Clear Anodized*

03 - Cylinder Height 1-1/8" Dim. "A" 1-25/32"

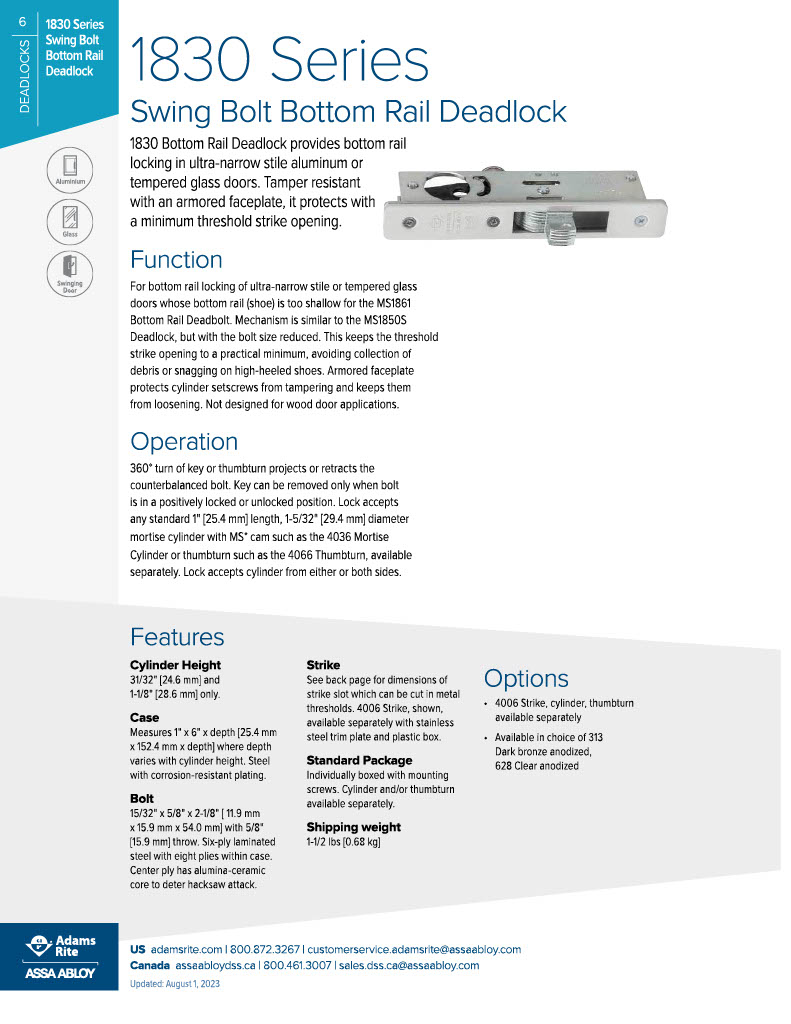

Function: For bottom rail locking of ultra-narrow stile or tempered glass doors whose bottom rail (shoe) is too shallow for the MS1861 Bottom Rail Deadbolt. Mechanism is that of the MS1850 Deadlock, but with the bolt size reduced. This keeps the threshold strike opening to a practical minimum, avoiding collection of debris or snagging on high-heeled shoes. Armor faceplate protects cylinder setscrews from tampering and keeps them from  oosening. Not applicable to wood doors.

Operation:360 Degree turn of key or thumbturn throws or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1-5/32" mortise cylinder from either or both sides. Cylinder must have MS® dimensioned cam.

For Mortise CylindersClick Here.

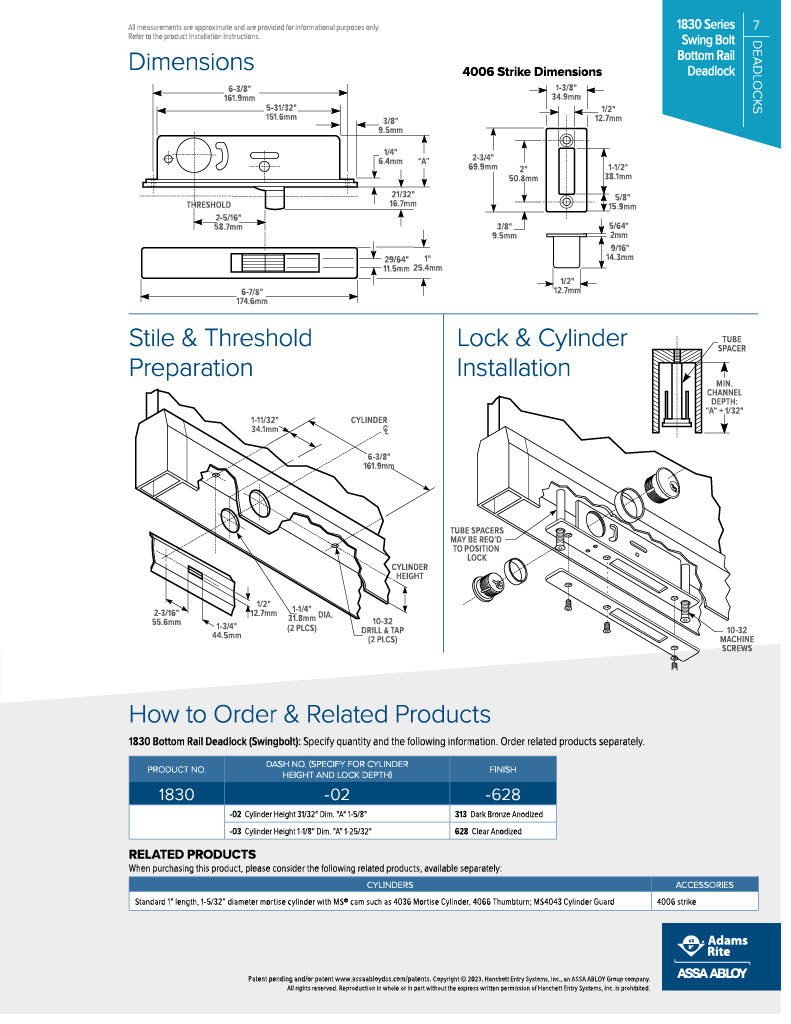

Specifications:   Cylinder Height (Backset):1-1/8"

Lock Depth:"A" 1-25/32"

Case:Steel with corrosion-resistant plating. Measures 1" x 6" x depth (depth varies with cylinder height).

Bolts:15/32" x 5/8" x 2-1/8" with 5/8" throw. Six-ply laminated steel with eight plys within case. Center ply has Alumina-Ceramic core to deter hacksaw attack.

Strike:4006 strike is available separately (See Below)

Cylinder Cam:Operable by any standard mortise cylinder with MS® cam, (Not Included) Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Standard Package:Individually boxed with machine screws for mounting.
