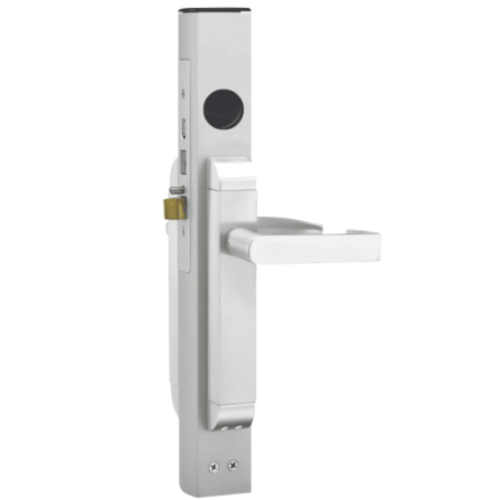

Adams Rite 2190-401 Dual Force Interconnected Deadbolt/Deadlatch - No Strike - 1-1/2" Backset

Adams Rite 2190-401 Dual Force Interconnected Deadbolt/Deadlatch - No Strike -1-1/2" Backset - for Aluminum Stile Doors

Faceplate Finish: Clear Anodized

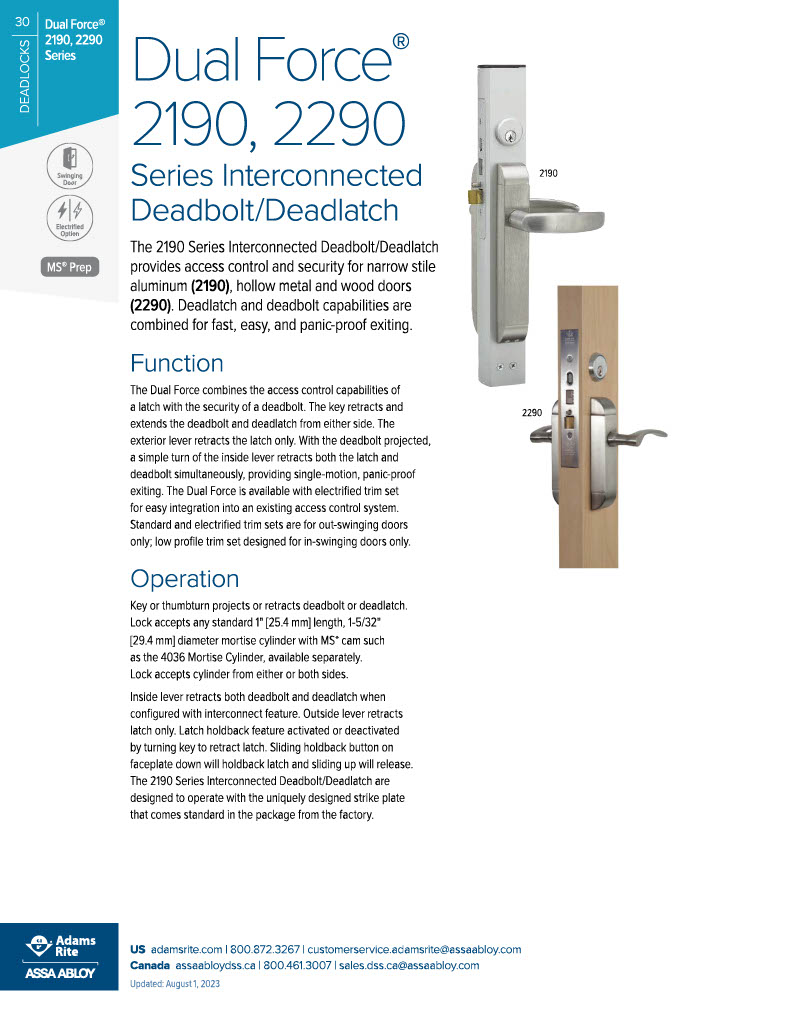

Function:

The Dual Force 2190 combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only, while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. Intended for out-swinging doors.

Operation:

Key or thumbturn retracts or extends deadbolt or deadlatch. Inside lever retracts both when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. 2190 will not work without its specially designed strike.

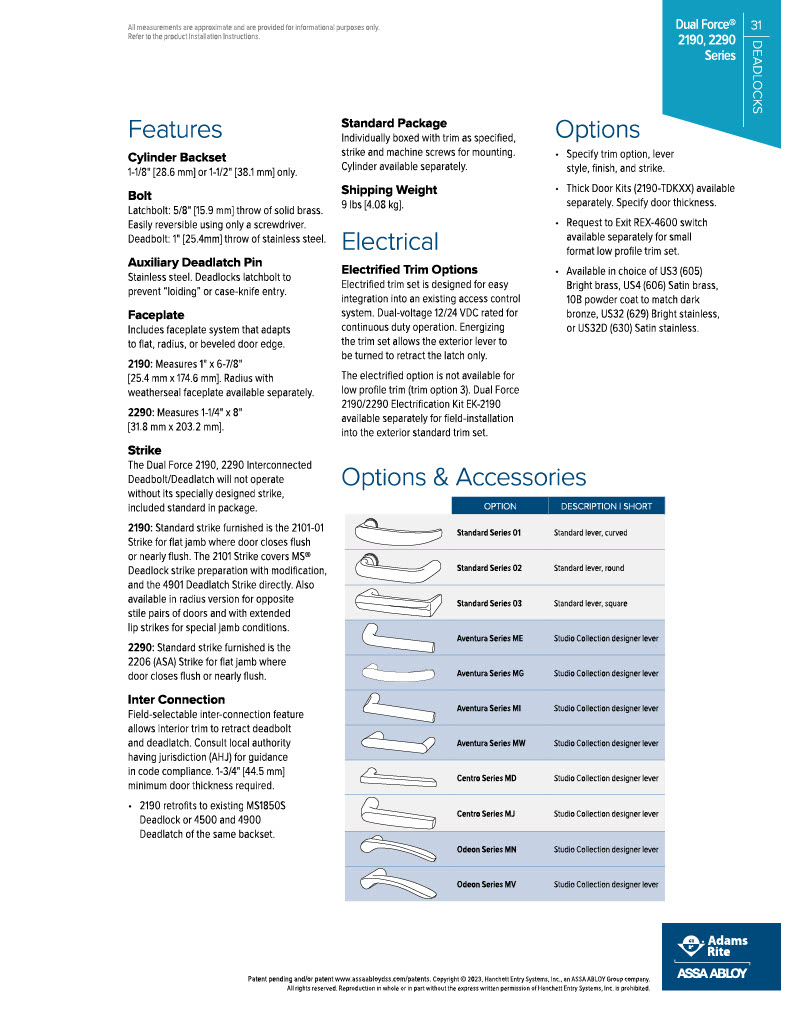

Specification:

Inter-Connection: Field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch. Consult local building officials for guidance in code compliance. Retrofits to existing MS1850S Deadbolt or 4500 and 4900 Deadlatch of the same backset. 1-3/4" minimum door thickness required.

Cylinder Backset: 1-1/2"

Latchbolt/Deadbolt: Latchbolt: 5/8" throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1" throw, stainless steel.

Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding" or case-knife entry.

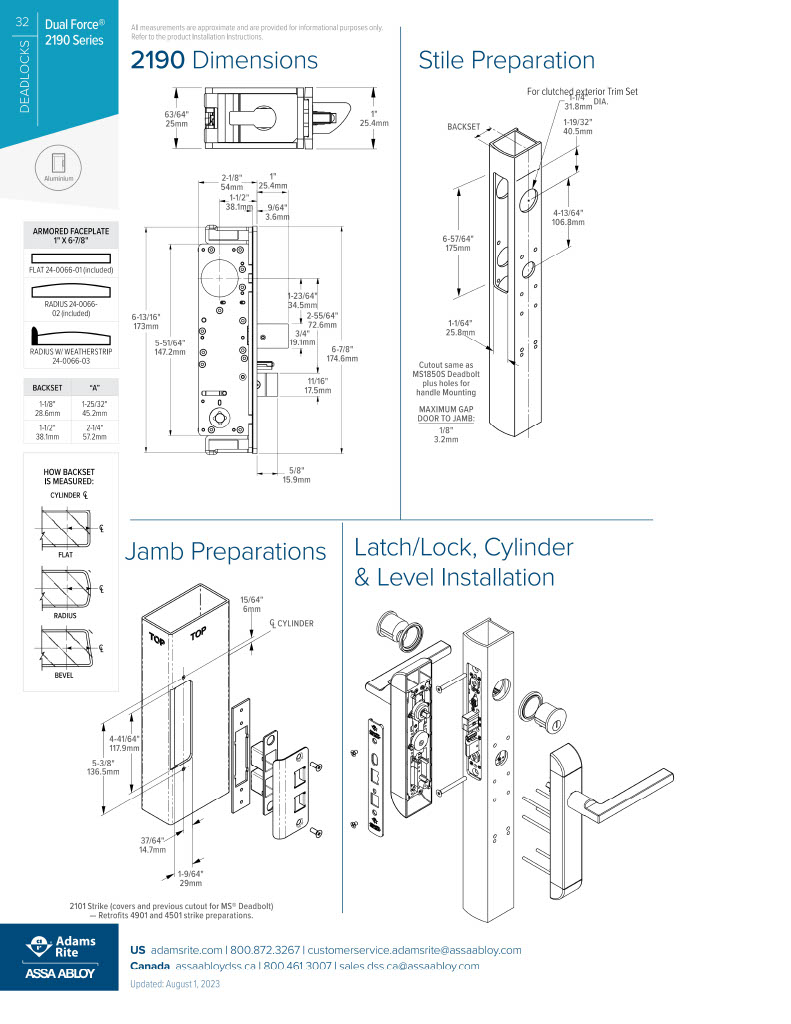

Faceplates: Measures 1" x 6-7/8". Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge.

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, (Not includud). Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

For Mortise CylindersClick Here.

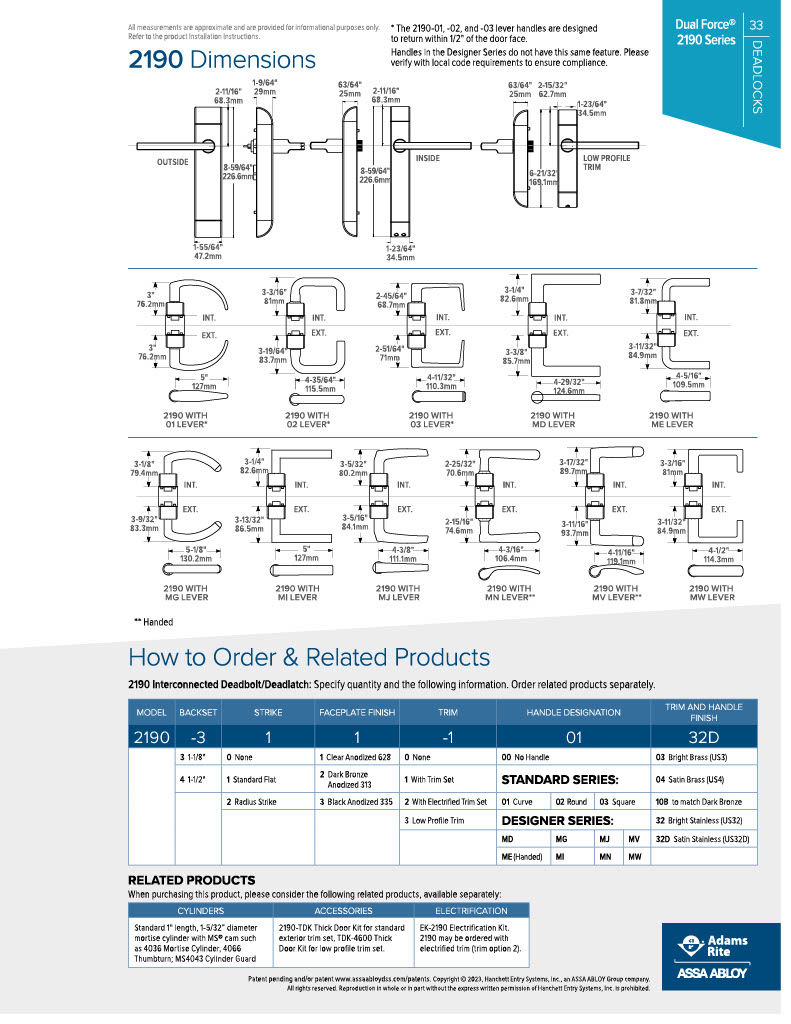

Model:2190-401-101-10B, 2190-401-102-10B, 2190-401-103-10B, 2190-401-101-32D, 2190-401-102-32D, 2190-401-103-32D
