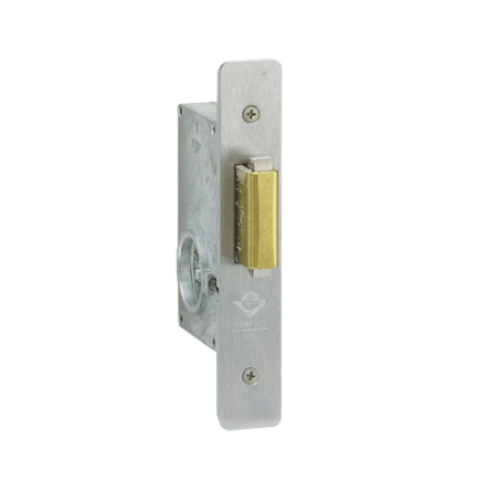

Adams Rite 2331 Heavy Duty Deadbolt With Strike

Adams Rite 2331 Heavy Duty Deadbolt With Strike

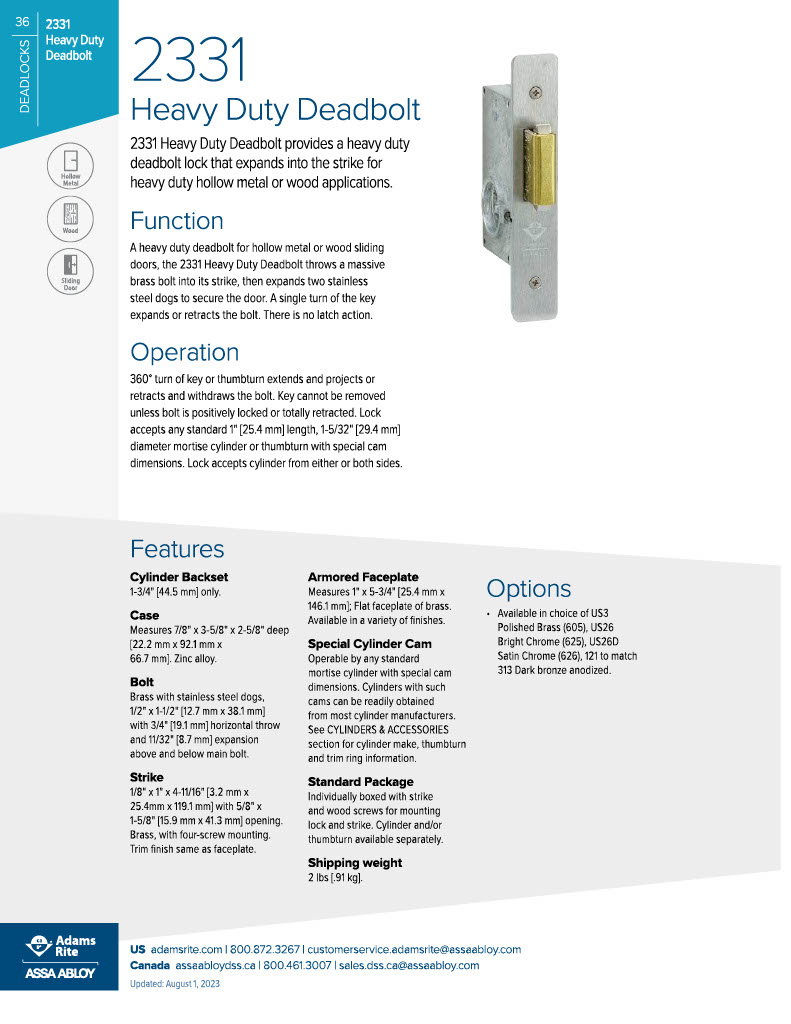

Function:

A heavy duty deadbolt for heavy duty metal or wood sliding doors, the 2331 Heavy Duty Deadbolt throws a massive brass bolt into its strike, then expands two stainless steel dogs to secure the door. A single turn of the key expands or retracts the bolt. Operates with standard mortise cylinder (standard cam) or with standard mortise cylinder thumbturn (not included). There is no latch action.

Operation:

360 Degree turn of key or thumbturn extends and expands or retracts and withdraws the bolt. Key cannot be removed unless bolt is positively locked or totally retracted. Requires special cylinder cam.

For Mortise CylindersClick Here.

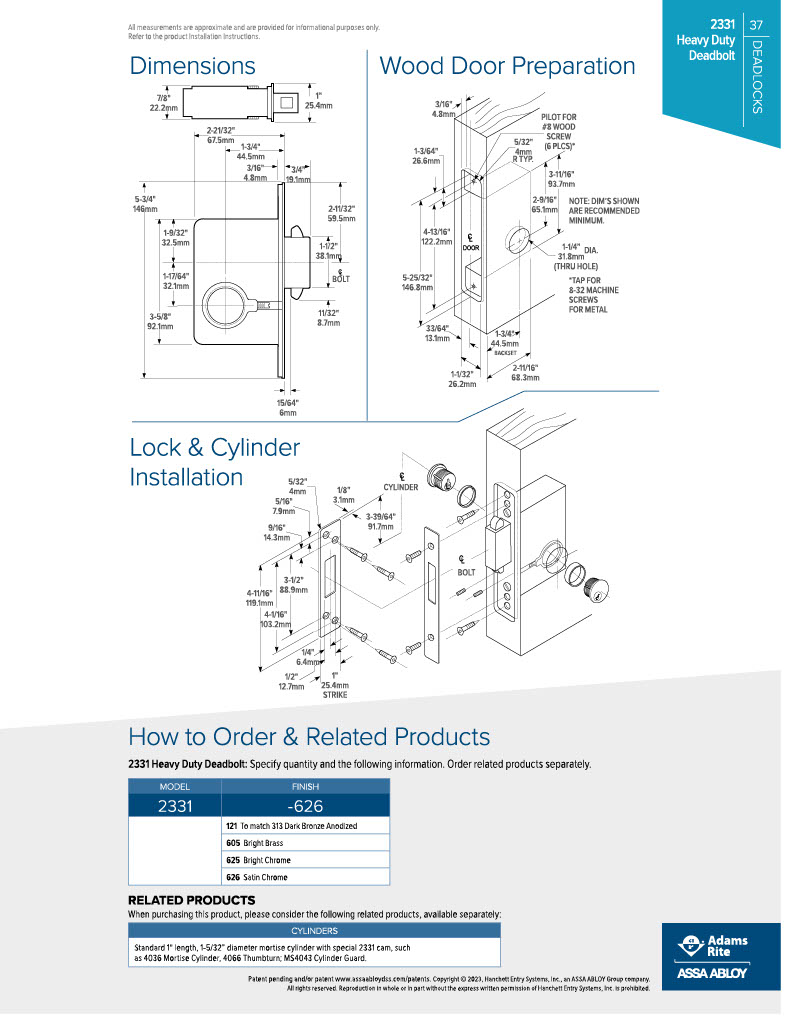

Specifications:

Cylinder Backset: 1-3/4" only

Case: Zinc alloy, measures 7/8" x 3-5/8" x 2-5/8" deep.

Bolt: Brass with stainless steel dogs, 1/2" x 1-1/2" with 3/4" horizontal throw and 11/32" expansion above and below main bolt.

Armored Faceplate: Flat faceplate of brass, 1’ x 5-3/4". Available in a variety of finishes.

Strike: 1/8" x 1" x 4-11/16" with 5/8" x 1-5/8" opening. Brass, with four-screw mounting. Trim finish same as faceplate.

Special Cylinder Cam: Operable by any standard mortise cylinder with special cam dimensions. Cylinders with such cams can be readily obtained from most cylinder manufacturers.

Standard Package: Individually boxed with strike and wood screws for mounting lock and strike.

Model: 2331-121, 2331-605, 2331-626
