About this item

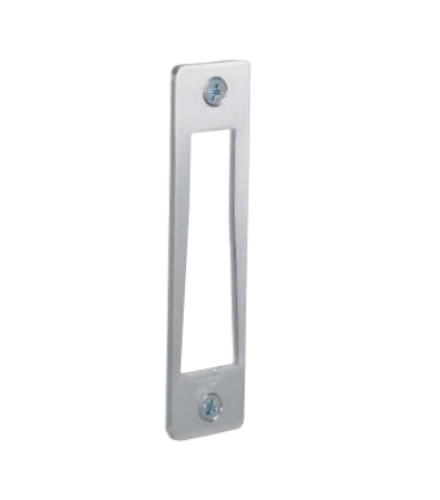

The Adams Rite 4000-03 is a flat trim strike designed specifically for the MS-050 series hookbolt deadlock. The 4000 Series 4000/.03 trim strike adds a finished, professional appearance to the strike cutout in any door jamb, whether the lock is installed in aluminum storefront, hollow metal, or wood frame construction. It can be surface-mounted directly over the existing strike cutout or mortise flush into the jamb for a clean, recessed installation. Furnished with two #10 flat head machine screws and two #10 flat head wood screws to cover both metal and wood jamb scenarios out of the box. Available in two corner styles (square or round) and two finishes (dark bronze anodized or clear aluminum anodized). Material: aluminum. SKU 4000-03. In stock.
What This Trim Strike Does
Most Adams Rite MS deadlocks are installed in aluminum storefront and hollow metal construction where the strike preparation is just a slot cut into the jamb. The slot works mechanically but leaves an unfinished edge that looks rough and exposes the cutout to wear, debris, and tampering. The 4000-03 trim strike covers that slot with an aluminum face plate, giving the opening a finished installer-grade aesthetic and adding a small layer of mechanical reinforcement around the cutout. This is the right specification when the existing MS-050 lock is already installed and the jamb just needs a clean cosmetic finish, or when a new MS-050 install needs to look professional from day one.
Compatible Lock
Designed exclusively for the Adams Rite MS-050 hookbolt deadlock, the slimline hookbolt-style MS variant used on aluminum storefront sliding and swinging doors. Not compatible with MS-1850, MS-1950, MS-1890, or other MS deadbolt-bolt variants. The 4000-03 hookbolt cutout shape matches the MS-050 hookbolt geometry only.
Specifications
Trim plate shape: flat. Corner options: 1 (square corners) or 2 (round corners). Finishes: 313 (dark bronze anodized) or 628 (clear anodized aluminum). Material: aluminum. Mounting: surface mount on wood or metal jamb, or mortise flush. Hardware included: two #10 flat head machine screws plus two #10 flat head wood screws. Compatible deadlock: all Adams Rite MS-050 hookbolt deadlocks.
Model Variants
Four model variants combine the corner option with the finish. 4000-031-313: square corners, dark bronze anodized. 4000-031-628: square corners, clear aluminum anodized. 4000-032-313: round corners, dark bronze anodized. 4000-032-628: round corners, clear aluminum anodized. Adams Rite catalog naming uses the 4000/.03 convention (with slash and decimal) which appears in spec sheets and door schedules; the 4000-03 hyphenated form is the same SKU. Match the corner style and finish to the existing door hardware schedule when ordering.
When to Specify
Specify the 4000-03 when an MS-050 hookbolt deadlock has been installed in an aluminum storefront, sliding entry, hollow metal jamb, or wood frame and the strike cutout needs a finished trim plate. The 313 dark bronze finish matches dark bronze anodized aluminum storefronts (the most common commercial spec). The 628 clear anodized finish matches clear aluminum and natural anodized storefronts. Round corners (4000-032) are typically specified for residential and modern commercial aesthetics; square corners (4000-031) match traditional commercial millwork.
Where This Sits in the Adams Rite Catalog
The 4000-03 lives in the Adams Rite Accessories section under Storefront Bolts and Latches within Commercial Locks. For the matching MS-050 hookbolt deadlock body, see the Adams Rite MS1890 Series family which contains the MS-050 variants.
