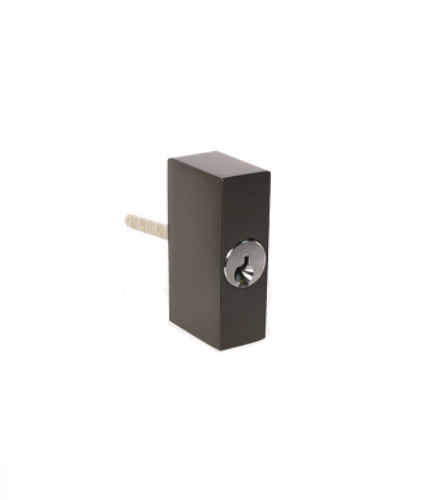

Adams Rite 4024-00-01-121 Cylinder Pull, Trim Plate Mounted, Schlage C

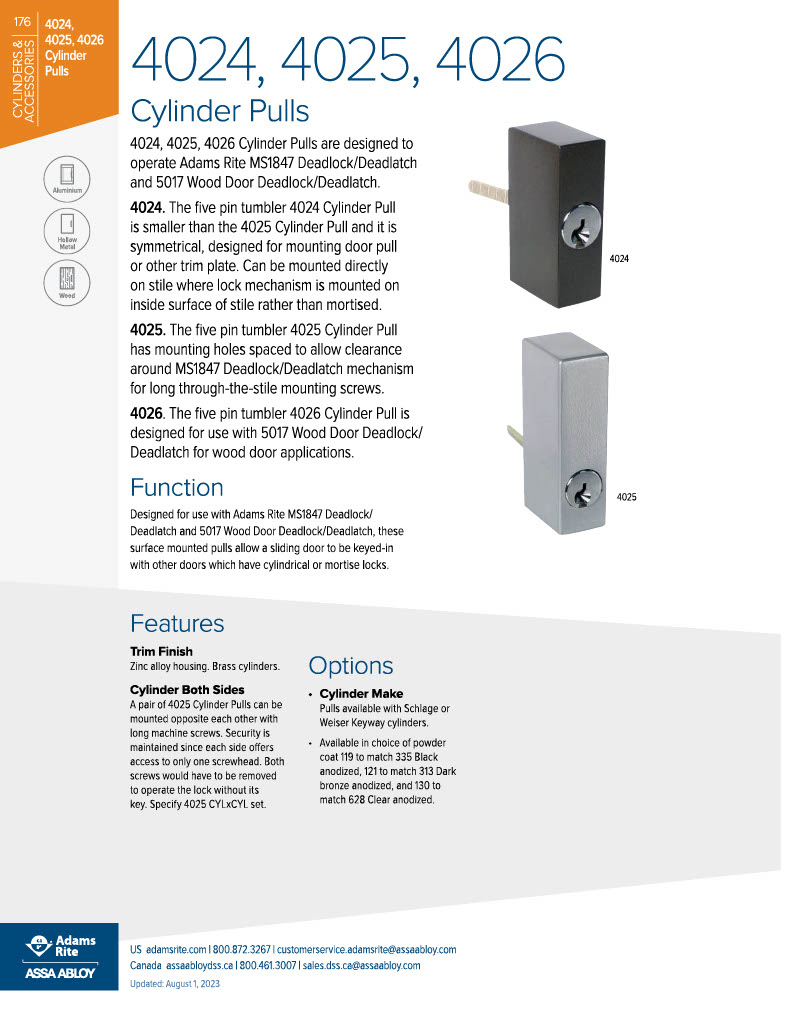

Adams Rite 4024-00-01-121 Cylinder Pull, Trim Plate Mounted, Schlage C Keyway, Dark Bronze * *4024:The five pin tumbler 4024 Cylinder Pull is smaller than the 4025 Cylinder Pull and it is symmetrical, designed for mounting door pull or other trim plate. Can be mounted directly on stile where lock mechanism is mounted on inside surface of stile rather than mortised.

Function: Designed for use with Adams Rite MS1847 Deadlock/Deadlatch and 5017 WoodDoor Deadlock/Deadlatch, these surface mounted pulls allow a sliding door to be keyed-in with other doors which have cylindrical or mortise locks.

Features: Trim Finish: Zinc alloy housing. Brass cylinders.

Cylinder Both Sides:A pair of 4025 Cylinder Pulls can be mounted opposite each other with long machine screws. Security is maintained since each side offers access to only one screwhead. Both screws would have to be removed to operate the lock without its key. Specify 4025 CYLxCYL set.

Options: Cylinder Make: Pulls available with Schlage or Weiser Keyway cylinders.

ADAMS RITE 4024, 4024 ADAMS RITE, 4024
