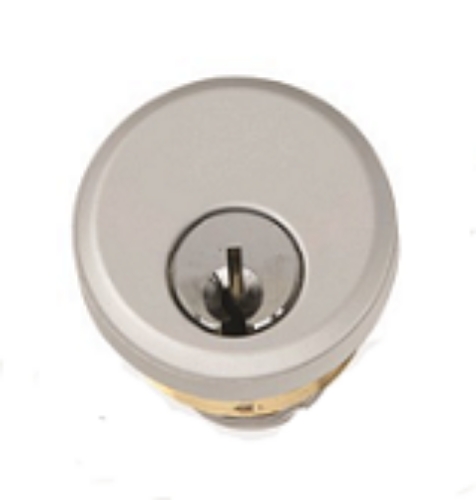

Adams Rite 4036-01-02 Mortise Cylinder, for MS Lock, 4900 Deadlatches, 2190, etc., Keyed Alike In Pairs
Product Details
Adams Rite 4036-01-02 Mortise Cylinder, for MS Lock, 4900 Deadlatches, 2190, etc., Keyed Alike
Function:
A standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter cylinder with five-pin tumbler security. Designed to operate any Adams Rite deadlock or deadlatch requiring a mortise cylinder. Close tolerance manufacturing achieve set screw grooves and cam geometry that are true on their respective centerlines. This ensures proper mating and operation with the locking or latching mechanism. Select cam to suit particular Adams Rite deadlock or deadlatch.
Features:
Standard Package: Individually packed with trim ring. 4036 furnished with keys.
Cylinders by Others:
Adams Rite deadlocks and deadlatches are designed to accept standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinders of all popular makes. This means that the entrance can be keyed to match the system used throughout the building on other types of doors. Care must be taken, however, to specify the proper cam for each type of lock, as these are not generally interchangeable. The cam shapes shown are available from the listed cylinder manufacturers and will be supplied by them with the cylinder when specified or available separately. Because of variations in the attachment of cams to cylinders and other construction differences, it is advisable to NOT attempt using one manufacturer's cylinder with another manufacturer's cam.
ADAMS RITE 4036, 4036 ADAMS RITE, 4036
