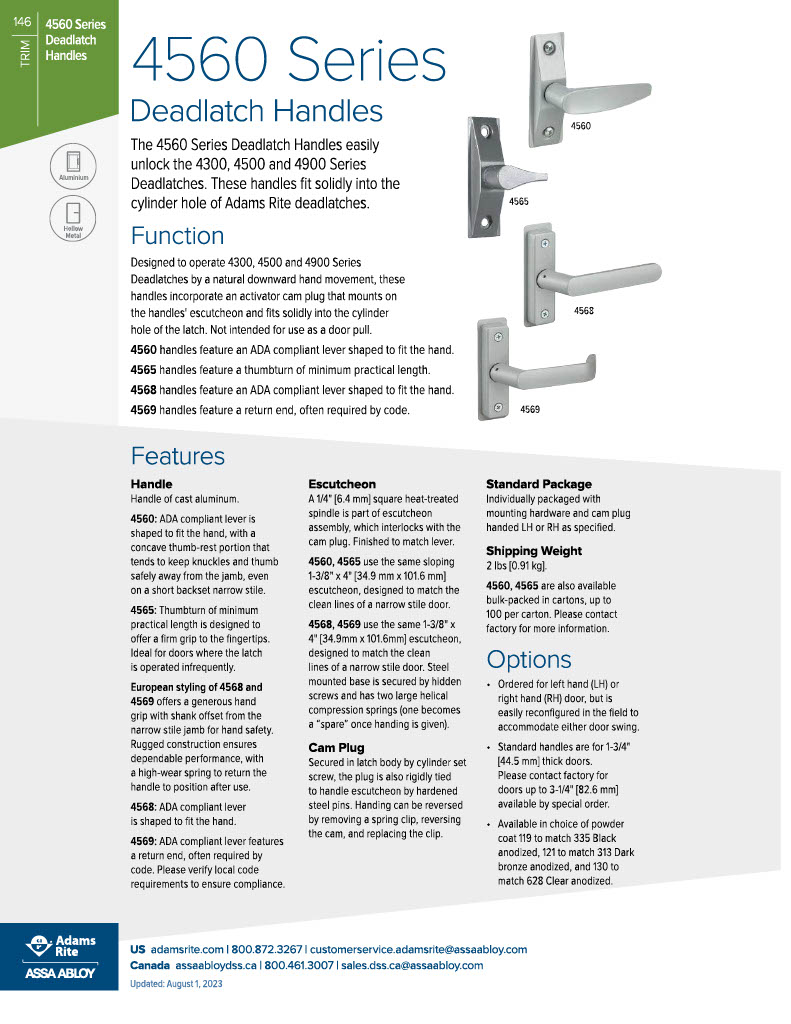

Adams Rite 4560 Deadlatch Handle - Lever Handle

Adams Rite 4560 Deadlatch Handle - Lever Handle

Function:

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.

Specifications:

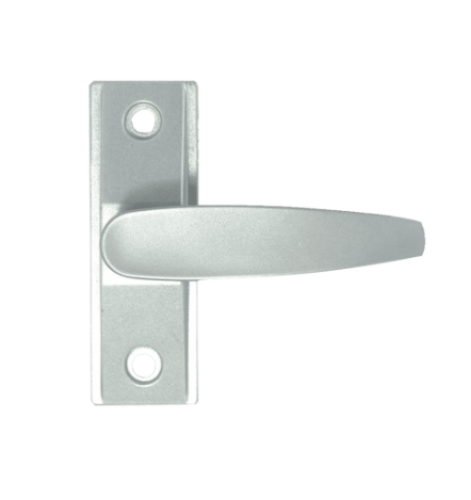

4560 Handle: ADA Compliant lever is shaped to fit the hand, with a concave thumb-rest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.

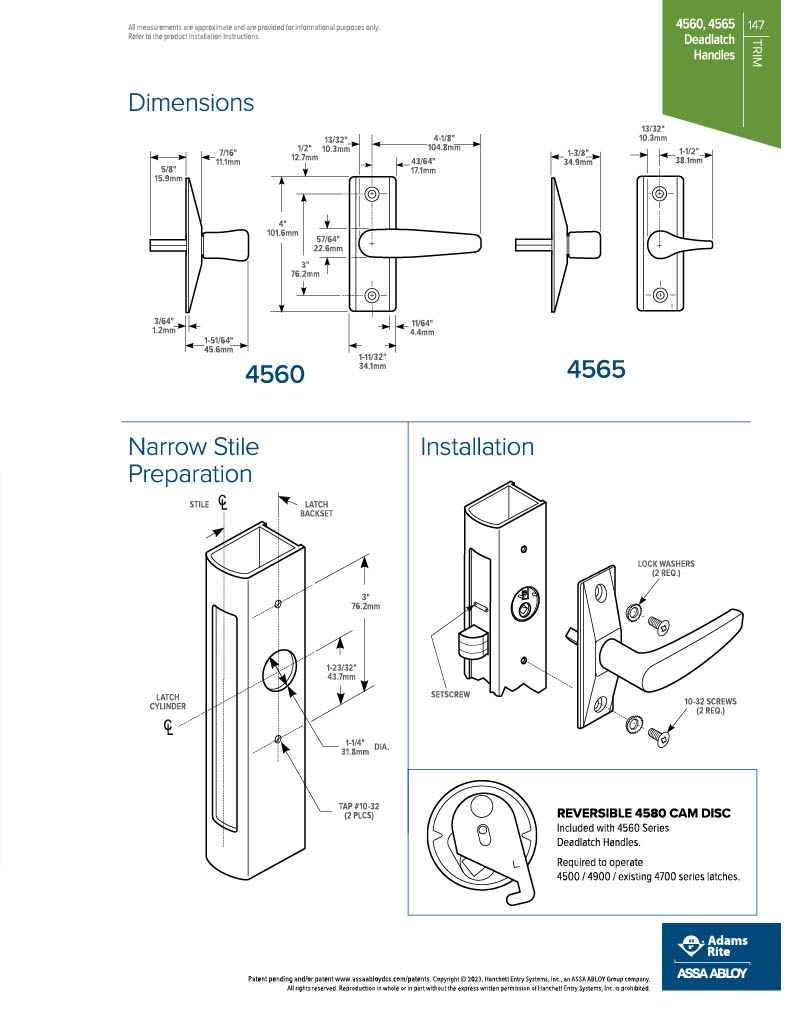

Escutcheons: uses the  1-3/8" x 4" escutcheon, designed to match the clean lines of a narrow stile door. A 1/4" square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.

Cam Plugs: Secured in latch body by cylinder setscrew, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.

Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing.

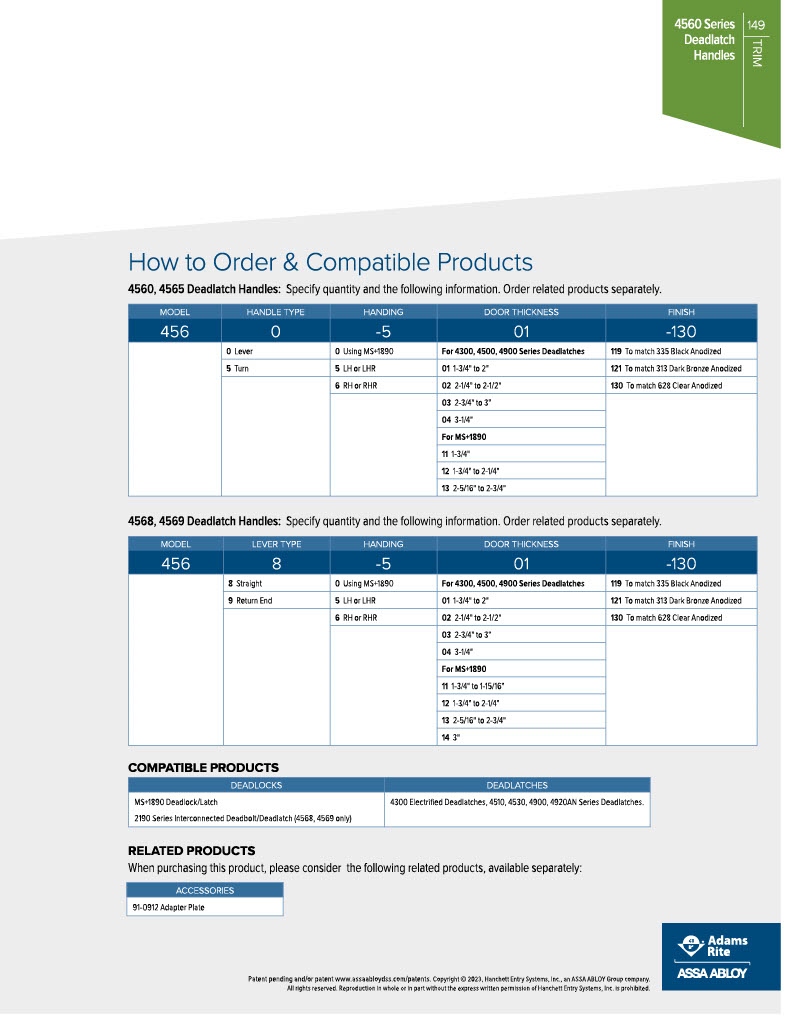

Model:4560-501-121, 4560-501-130, 4560-501-119, 4560-502-121, 4560-502-130, 4560-502-119, 4560-601-121, 4560-601-130, 4560-601-119
