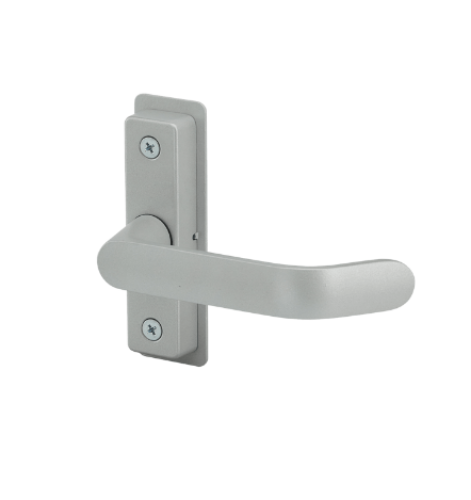

Adams Rite 4569-11 Eurostyle Deadlatch Handle - Return End Lever - 1-3/4" to 1-15/16" Door Thickness

Adams Rite 4569-11 Eurostyle Deadlatch Handle - Return End Lever - 1-3/4" to 1-15/16" Door Thickness

Function:

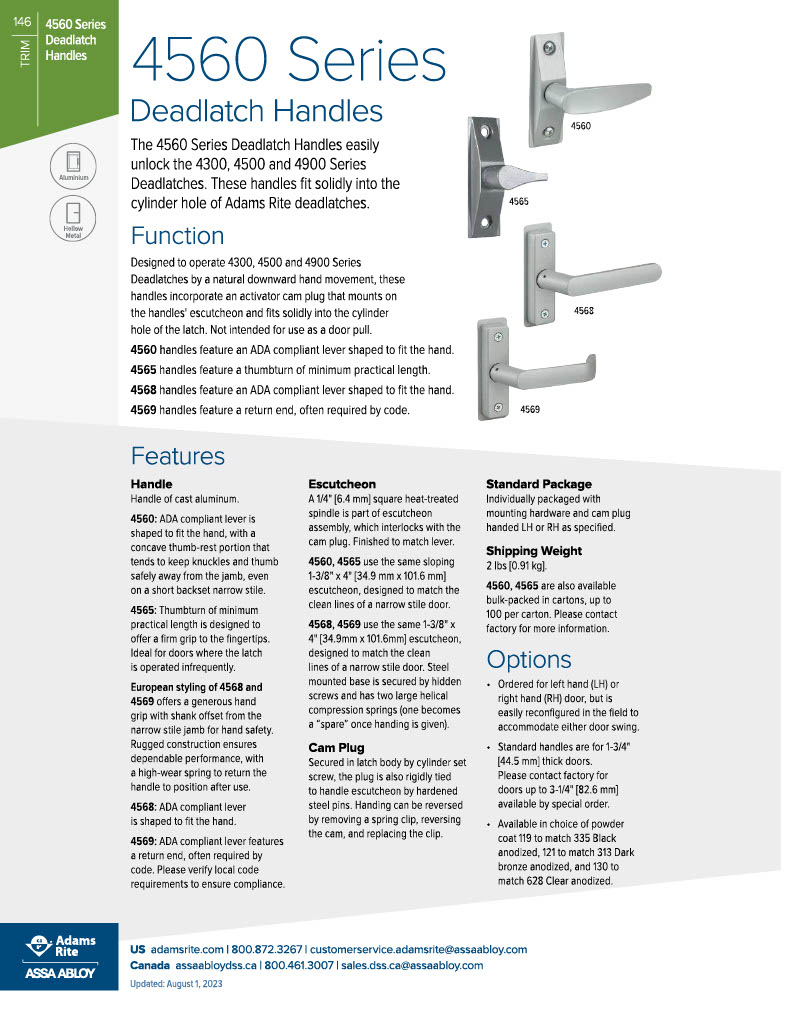

Designed to operate 4300, 4500, 4900 and MS1890 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.

Specifications:

Lever: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety.  4569 has return end to meet anti-snag code requirements.

Lever Type: Return End

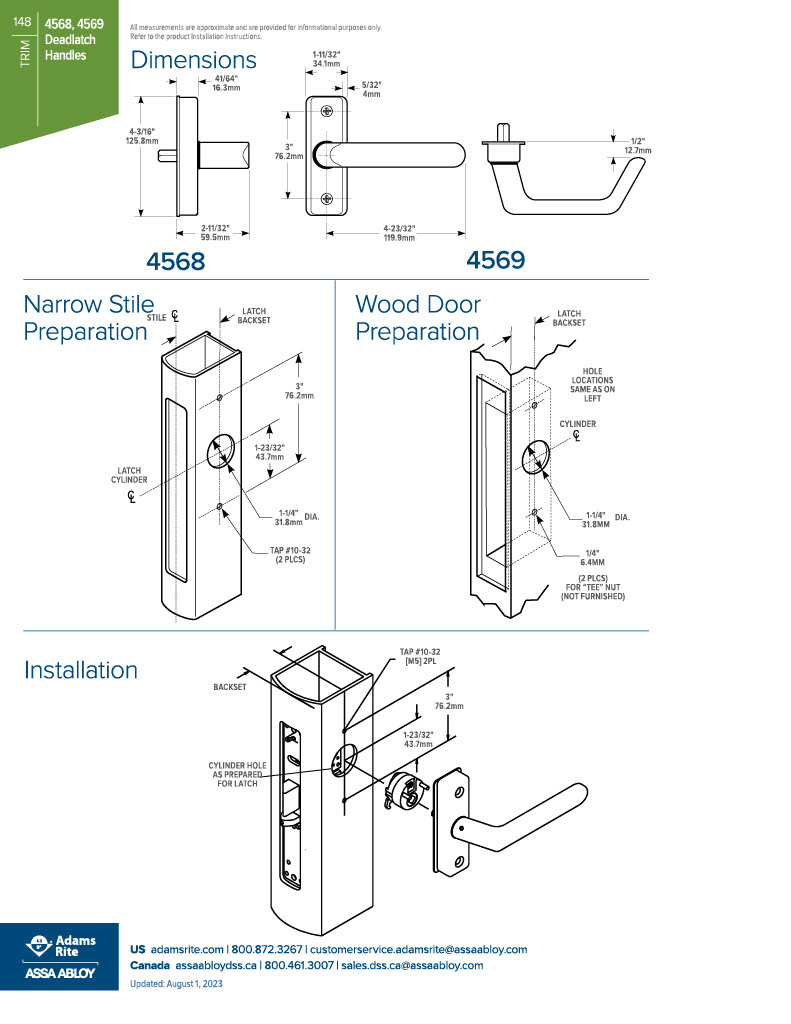

Escutcheon: Uses the 1-3/8" x 4" escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs. (One becomes a “spare" once handing is given.) A 1/4" square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.

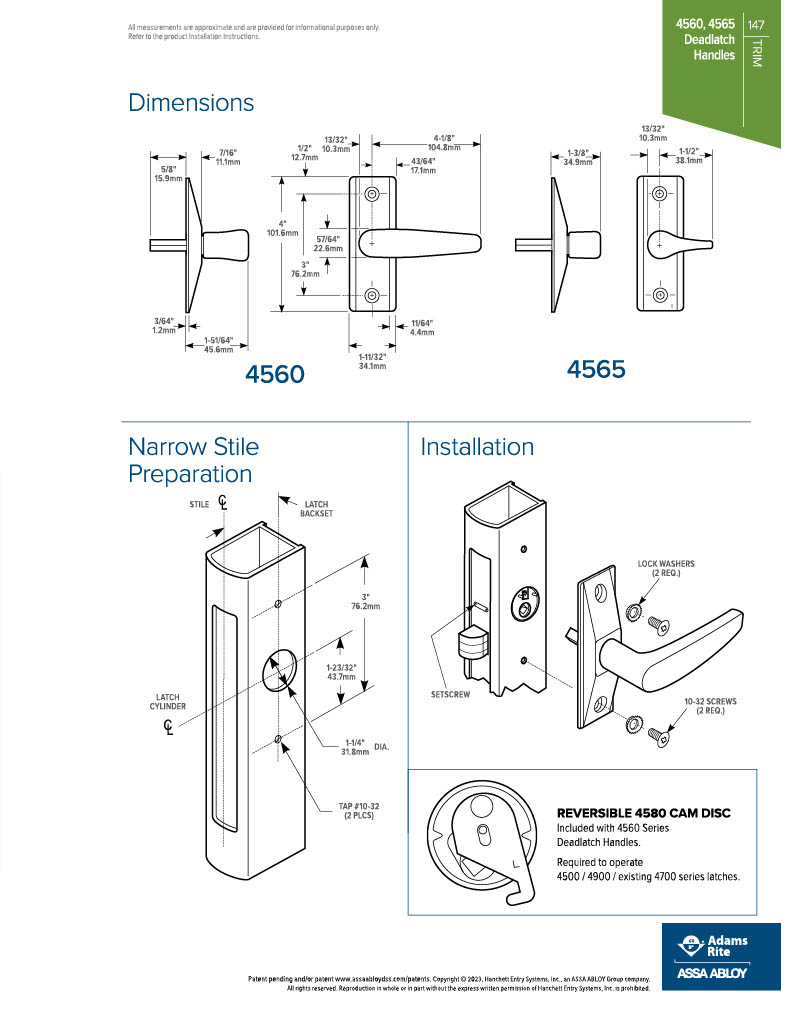

Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip

Standard Package: Packed individually with cam plug, Mounting screws included.

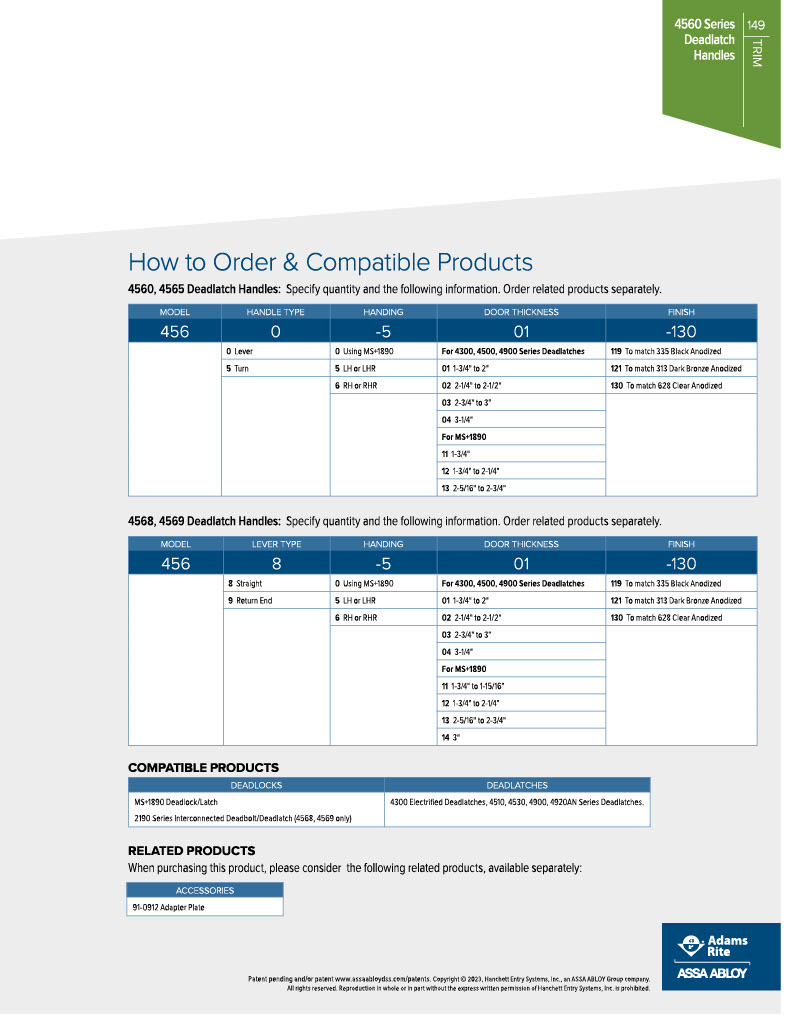

Model: 4569-11-121, 4569-11-130, 4569-11-119
