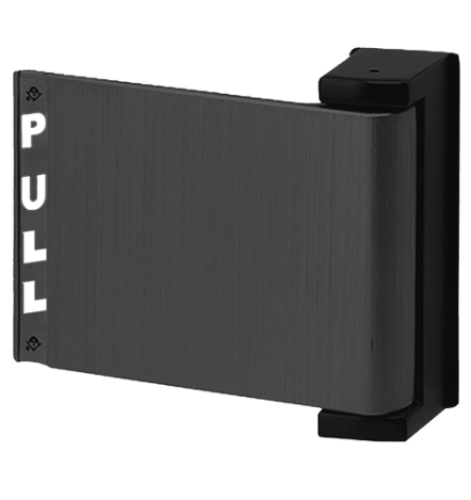

Adams Rite 4590-01 Deadlatch Paddle For The 4300/4500/4900 Latch Series - Pull To Left

Adams Rite 4590-01 Deadlatch Paddle For The 4300/4500/4900 Latch Series - Pull To Left Operation

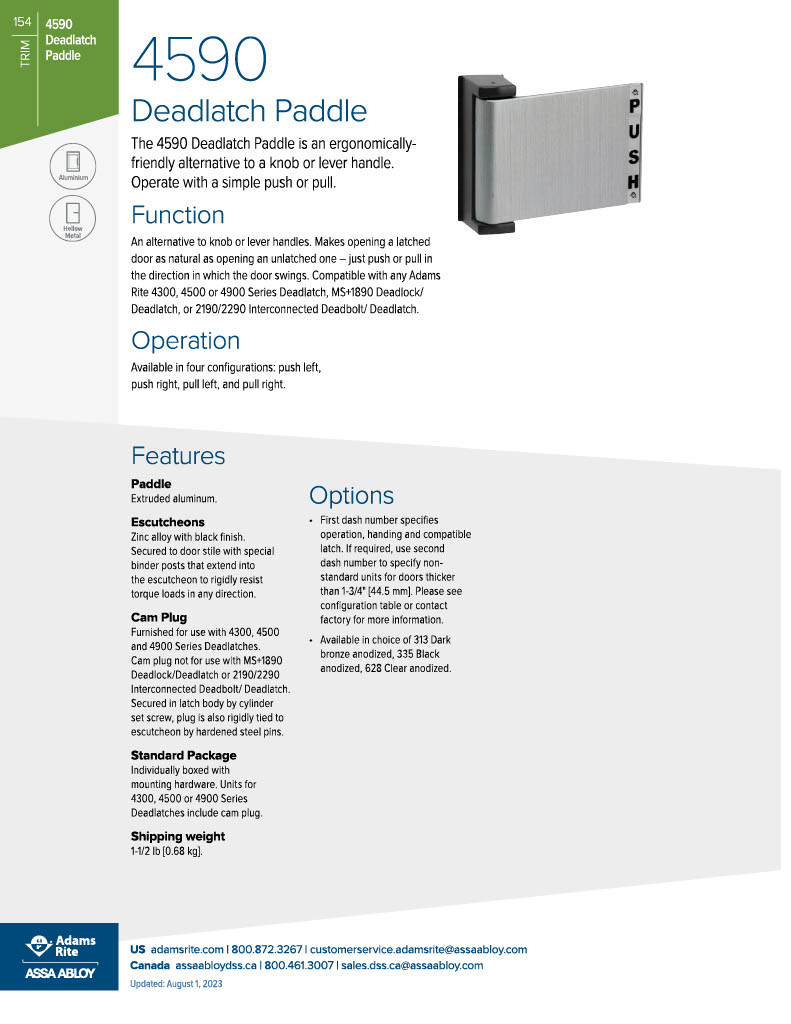

Function:

An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch

Operation:

Pull to left operation:Use for Outside of left hand reverse door or inside of right hand

Paddle:Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized or 335 Black Anodized are available

Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.

Cam Plug:Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.

Model:4590-01-00-628, 4590-01-02628, 4590-01-03-628, 4590-01-04-628, 4590-01-01-628, 4590-01-00-335, 4590-01-02-335, 4590-01-03-335, 4590-01-04-335, 4590-01-01-335, 4590-01-00-313, 4590-01-02-313, 4590-01-03-313, 4590-01-04-313, 4590-01-01-313,
