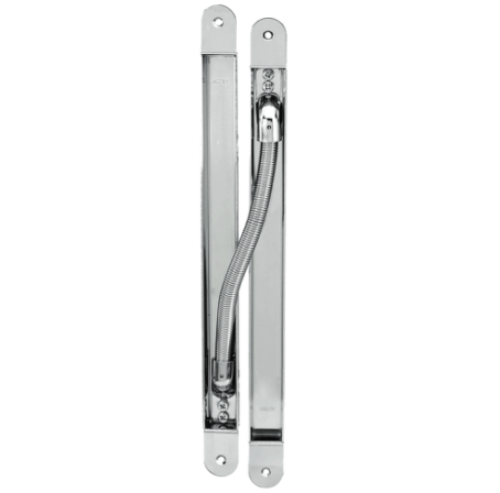

Adams Rite 4612-1 Wire transfer, 105 Degree swing

Adams Rite 4612-1 Wire transfer, 105 Degree swing

Function:**

Provides a secure and unobtrusive means of channeling electrical wiring from the door frame into the door itself, for powering electric strikes, locks, exit bars, etc. Suitable for any door hung with butt-type hinges, including continuous or pivots offset 3/4" or less. (Not compatible with center-pivot doors.)

Specifications:

UL634

Conduit: Spring steel helix has internal diameter of approximate 5/16". This provides ample room for multiple wires of the low voltage type used with most electrical hardware.

Housing: Stamped steel, approximately 1/16" thick.  Short (105 Degree swing) version shown is 11-1/12" long.

Case-Knife Guard: Particularly for out-swinging doors, a steel barrier fence offers extra protection against attack on the conduit by knives, shims, or other tools. Completely hidden when door is closed.

Options: Available for application in aluminum, hollow steel, or wood door and frames. Standard (short) version suits doors that swing up to 105 Degree.
