Adams Rite 4781 Two-Point Deadlatch with Paddle

Adams Rite 4781 Two-Point Deadlatch with Paddle

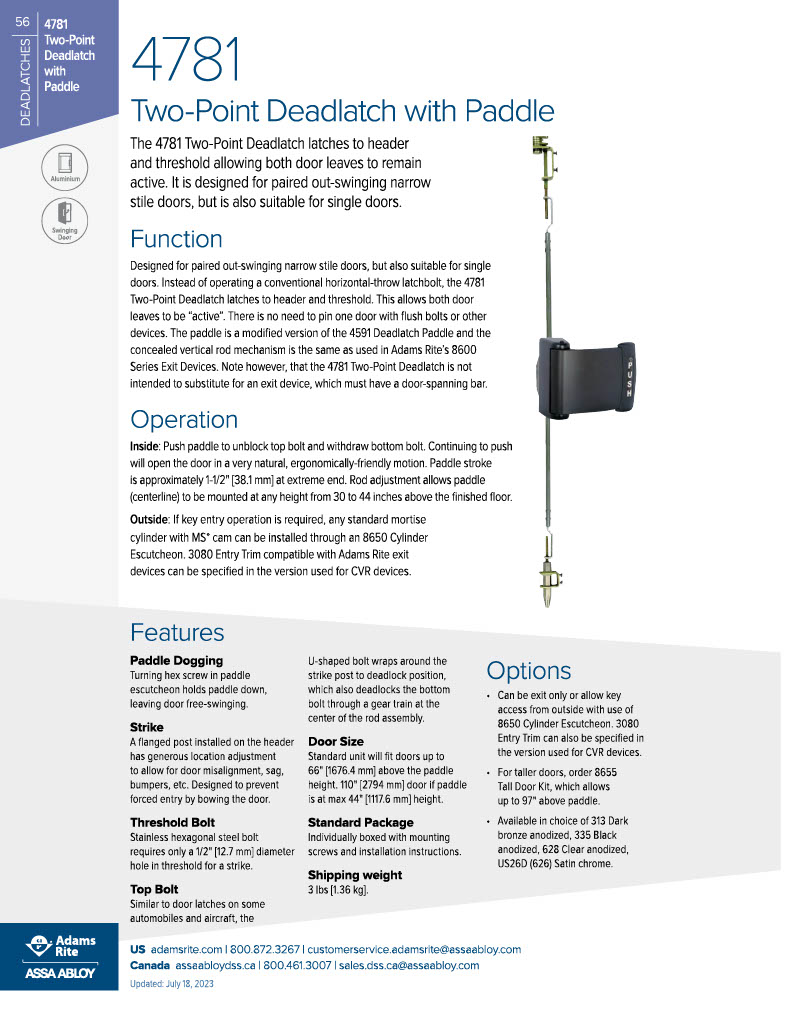

Function:

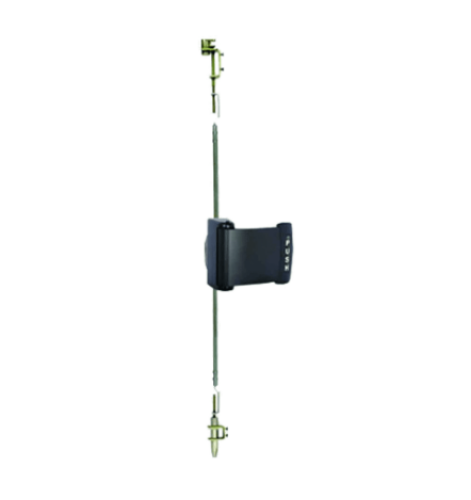

Designed for paired outswinging narrow stile doors but also suitable for single doors. Instead of operating a conventional horizontal-throw latchbolt, the 4781 Two-Point Deadlatch latches to header and threshold. This allows both door leaves to be “active". There is no need to pin one door with flushbolts or other devices. The paddle is a modified version of the 4591 Deadlatch Paddle and the concealed vertical rod mechanism is the same as used in Adams Rite’s 8600 Series Exit Devices. Note, however, that the 4781 Two-Point Deadlatch is not intended to substitute for an exit device, which must have a door-spanning bar.

Inside Operation:

Push paddle to unblock top bolt and withdraw bottom bolt. Continuing to push opens the door in a very natural, ergonomically-friendly motion. Paddle stroke is approximately 1-1/2" at extreme end. Rod adjustment allows paddle (centerline) to be mounted at any height from 30 to 44 inches above the finished floor.

Outside Operation:

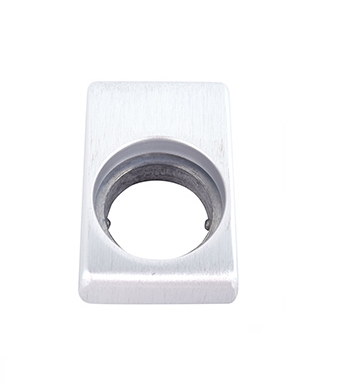

If key entry operation is required, any standard mortise cylinder with MS® cam can be installed through an 8650 Cylinder Escutcheon (not included).

For Mortise CylindersClick Here.

Specifications:

Paddle Dogging: Turning hex screw in paddle escutcheon holds paddle down, leaving door free-swinging.

Top Bolt: Similar to door latches on some automobiles and aircraft, the U-shaped bolt wraps around the strike post to deadlock position, which also deadlocks the bottom bolt through a gear train at the center of the rod assembly.

Header Strike: A flanged post installed on the header has generous location adjustment to allow for door misalignment, sag, bumpers, etc. Designed to prevent forced entry by bowing the door.

Bottom Bolt: Stainless hexagonal steel bolt requires only a 1/2" diameter hole in threshold for a strike.

Door Size: Standard unit will fit doors up to 66" above the paddle height (110" door if paddle is at max 44" height).

Model:4781-021-628, 4781-041-628, 4781-021-313, 4781-041-313,
