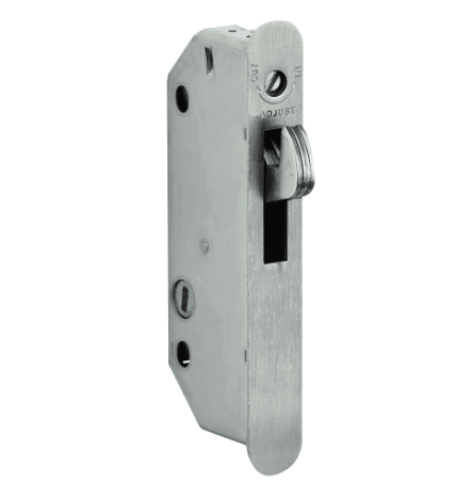

Adams Rite 5017-02-630 Deadlock For Wood Doors - Self-latching - Stainless steel

Adams Rite 5017-02-630 Deadlock For Wood Doors  - Self-latching - Stainless steel

Function:

For wood framed sliding doors, the 5017 Wood Door Deadlock/Latch provides the same thousand pound strength that the MS1847 Deadlock/Latch provides for metal stiles. A deeper backset clears the recessed jamb used with wood doors. The bolt throw is easily adjusted by means of a screw in the faceplate. Mounting is by through-bolts, which also secure the inside turn and outside cylinder when installed.

Operation:

45 Degree rotation of turn or key throws or retracts bolt. Bolt is self-protecting: if door is shut while bolt is extended, it will retract, preventing damage or accidental lock-out.

Specifications:

Backset: 1-3/16" (1-1/4" including faceplate)

Latch Configuration: Self-latching

Case: Stainless steel, measures 1/2" x 4" x 1-19/32" deep. Bolt is laminated stainless steel

Lock Face: Stainless steel, 5/8" x 4-1/2" with radiused ends.

Bolt: Laminated stainless steel

Cylinder pulls and/or thumbturn available separately.
