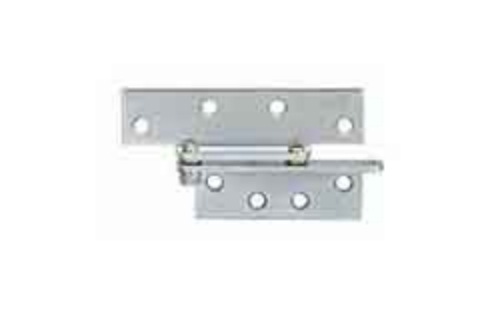

Adams Rite B1921 Reinforcing Pivot, 1/2" Offset to match Pivot Point of 4" Wide Hinge

**Adams Rite B1921 Reinforcing Pivot, 1/2" Offset to match Pivot Point of 4" Wide Hinge

Function:**

This full-surface reinforcing pivot adds years of life to openings where the hinges or hinge reinforcements have failed. Reinforcing pivots take the load off the top hinge and transfer it to screws that are in shear so they will notpull off. The quick and economical way to solve door sag problems.

**Features:

Type:**Full surface reinforcing pivots for flush doors.

Finish:Zinc plating over steel.

Materials:Heavy duty 3/16" [4.8 mm] cold-rolled steel.

Cycle Testing:1,500,000 cycles

Capacity:Supports weights up to 300 lbs [136.08 kg]

Hole Pattern:Symmetrically located. Non-handed.

Hinge Size: B1921:designed with 1/2" [12.7 mm] offset to match the pivot point of a 4" [101.6 mm] wide butt hinge.

Standard Package:Comes complete with all necessary fasteners. Optional tamper-proof screw available.

Adams Rite B1921,  B1921, B1921 Adams Rite
