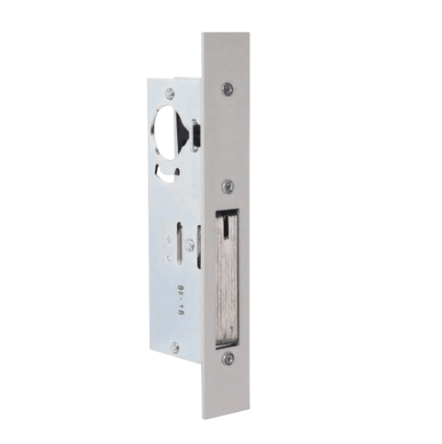

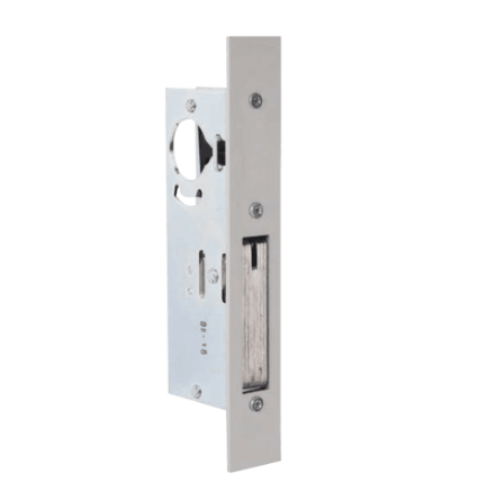

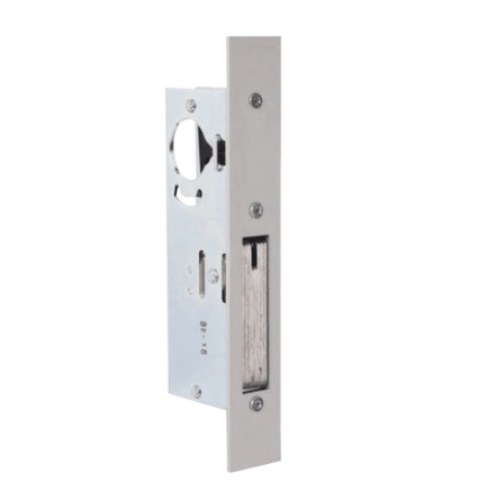

Adams Rite MS1837 Two-Point Deadlock - 1-1/2" Cylinder Backset

Adams Rite MS1837 Two-Point Deadlock - 1-1/2" Cylinder Backset

Function:Maximum security for wood door pairs by a single turn of a key is provided with the MS1837. Simultaneously dropping a stainless steel hexbolt into the threshold and pivoting the massive MS bolt into the opposite leaf, the MS1837 eliminates inconvenient and sometimes forgotten flushbolts in the inactive leaf.

Operation:360 Degree turn of key or thumbturn throws counterbalanced bolt into opposite door and drops bolt into threshold. Key can be removed only when bolts are in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder from either or both sides. Cylinder must have MS® dimensioned cam.

For Mortise CylindersClick Here.

Specifications:

Cylinder Backset:1-1/2" only.

Cylinder Height:36" standard.

Case:Measures 1" x 6" x 2-3/16". Steel with corrosion-resistant plate.

Pivoted Bolt: 5/8" x 1-3/4" x 2-7/8" with 1-3/8" throw. Eight-ply laminated steel with alumina-ceramic core to deter hacksaw attack.

Threshold Bolt:Hexagonal 3/8", flat to flat. Stainless steel.

Armored Faceplate:Flat, two-piece plate extends to bottom of door.

Strike:For MS bolt, a 4001-011 strike plate with dust box is Included. Threshold bolt strike can be 1/2" diameter hole in metal threshold or, if threshold is wood, 4005 strike is available as an option. (See Below)

Cylinder Cam:Operable by any standard mortise cylinder with MS® cam, not included. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.

Standard Package:Basic MS lock individually boxed with mounting screws.
