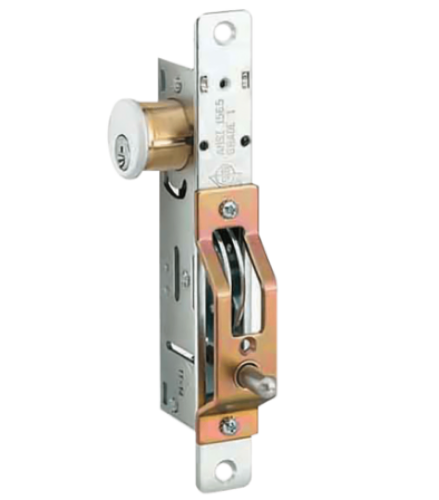

Adams Rite MS1861-01-603 MS Bottom Rail One-point deadlock, vertical bolt operation

Adams Rite MS1861-01-603 MS Bottom Rail One-point deadlock, vertical bolt operation - Zinc plated steel

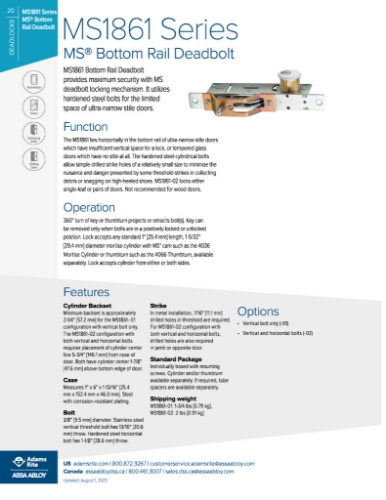

Function:

The MS1861 lies horizontally in the bottom rail of ultra-narrow stile doors which have insufficient vertical space for a lock, or tempered glass doors which have no stile at all. The hardened steel cylindrical bolts allow simple drilled strike holes of a relatively small size to minimize the nuisance and danger presented by some threshold strikes in collecting debris or snagging on high-heeled shoes.

Operation:

360 Degree turn of key or thumbturn throws or retracts bolt(s). Key can be removed only when bolts are in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder from either or both sides(not included). Cylinder must have MS® dimensioned cam.

For Mortise CylindersClick Here.

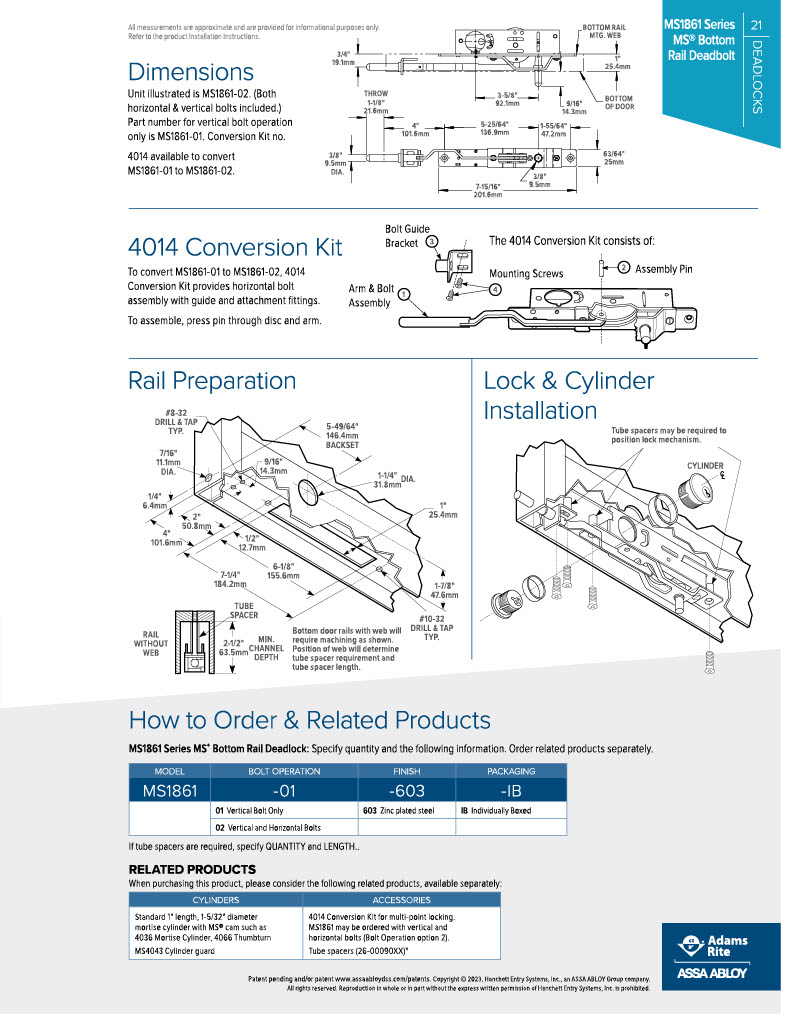

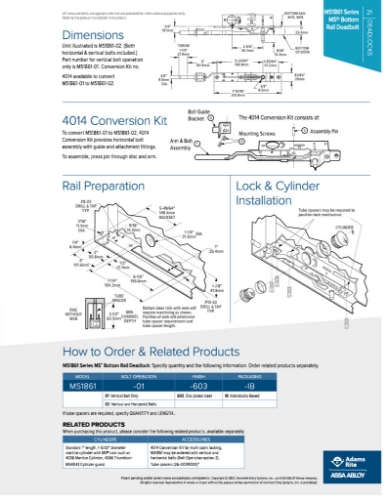

Specifications:

Cylinder Backset: Minimum backset is approximately 2-1/4" for the MS1861-01 with vertical bolt only. cylinder center is 1-7/8" above bottom edge of door.

Case: Steel with corrosion-resistant plate, measures 1" x 6" x 1-13/16".

Bolts: 3/8" diameter. Stainless steel vertical threshold bolt has 13/16" throw.

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Standard Package: Individually boxed with mounting screws. Cylinders and/or thumbturns available separately.
