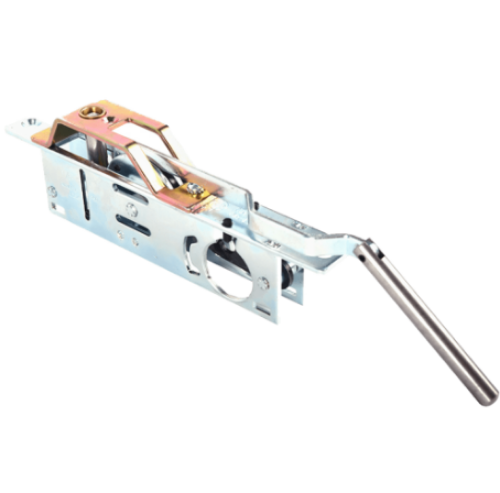

Adams Rite MS1861-02-603 MS Bottom Rail Two-point deadlock, horizontal and vertical operation

Adams Rite MS1861-02-603 MS Bottom Rail Two-point deadlock, *horizontal and vertical operation - Zinc plated steel*

Function:

The MS1861 lies horizontally in the bottom rail of ultra-narrow stile doors which have insufficient vertical space for a lock, or tempered glass doors which have no stile at all. The hardened steel cylindrical bolts allow simple drilled strike holes of a relatively small size to minimize the nuisance and danger presented by some threshold strikes in collecting debris or snagging on high-heeled shoes. MS1861-02 locks either single-leaf or pairs of doors. Not recommended for wood doors.

Operation:

360 Degree turn of key or thumbturn throws or retracts bolt(s). Key can be removed only when bolts are in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder from either or both sides(not included). Cylinder must have MS® dimensioned cam.

For Mortise CylindersClick Here.

Specifications:

Cylinder Backset: The MS1861-02 with vertical and horizontal bolts requires placement of cylinder centerline 5-3/4" from nose of door. Both have cylinder center 1-7/8" above bottom edge of door.

Case: Steel with corrosion-resistant plate, measures 1" x 6" x 1-13/16".

Bolts: 3/8" diameter. Stainless steel vertical threshold bolt has 13/16" throw.

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Standard Package: Individually boxed with mounting screws. Cylinders and/or thumbturns available separately.
