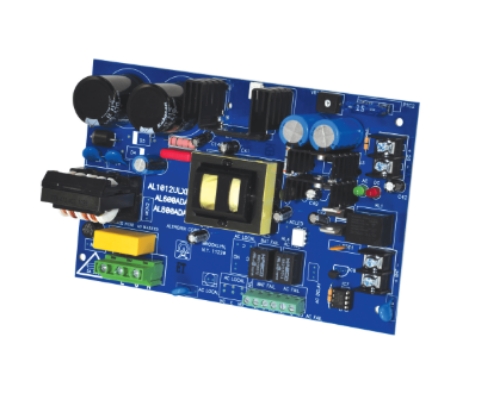

Altronix AL1012ULXB Off-Line Switching Power Supply Board, 12VDC at 10A

Altronix AL1012ULXB Off-Line Switching Power Supply Board, 12VDC at 10A,Lifetime Warranty

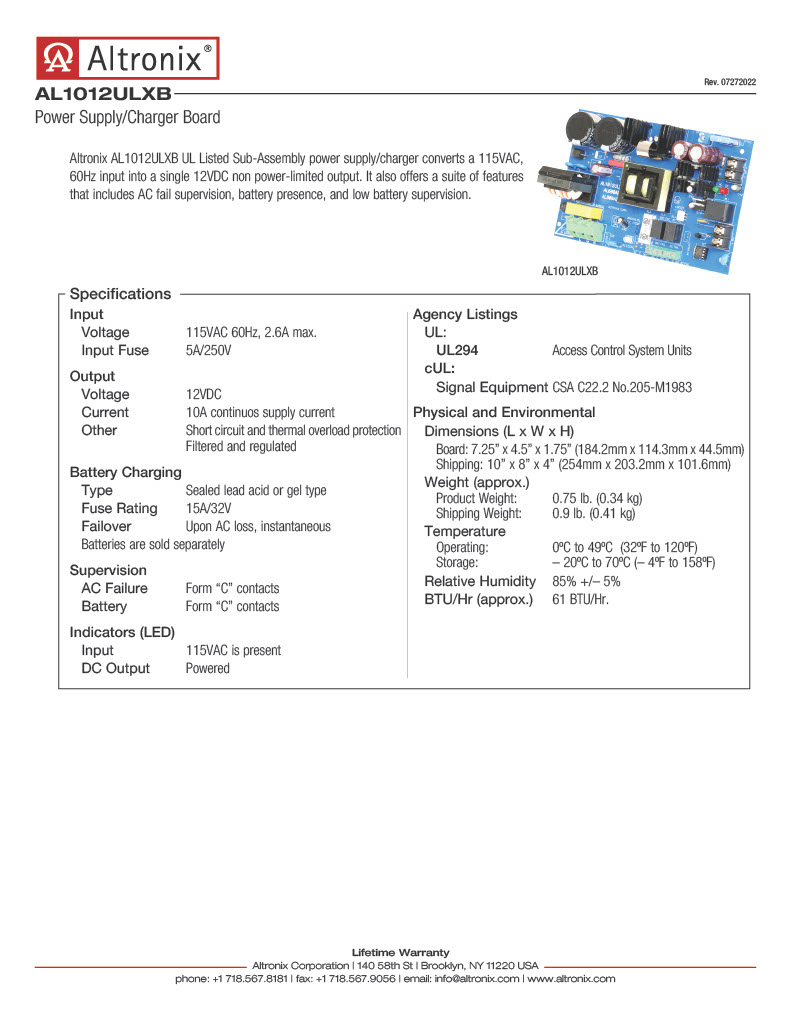

Specifications:

Input: 115VAC, 60Hz, 2.6A. Input fuse rated @ 5A/250V.

Output: 12VDC output. 10A continuous supply current. Output fuse rated @ 15A/32V. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Electrical:

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 61 BTU/Hr. System AC input VA requirement: 299VA.

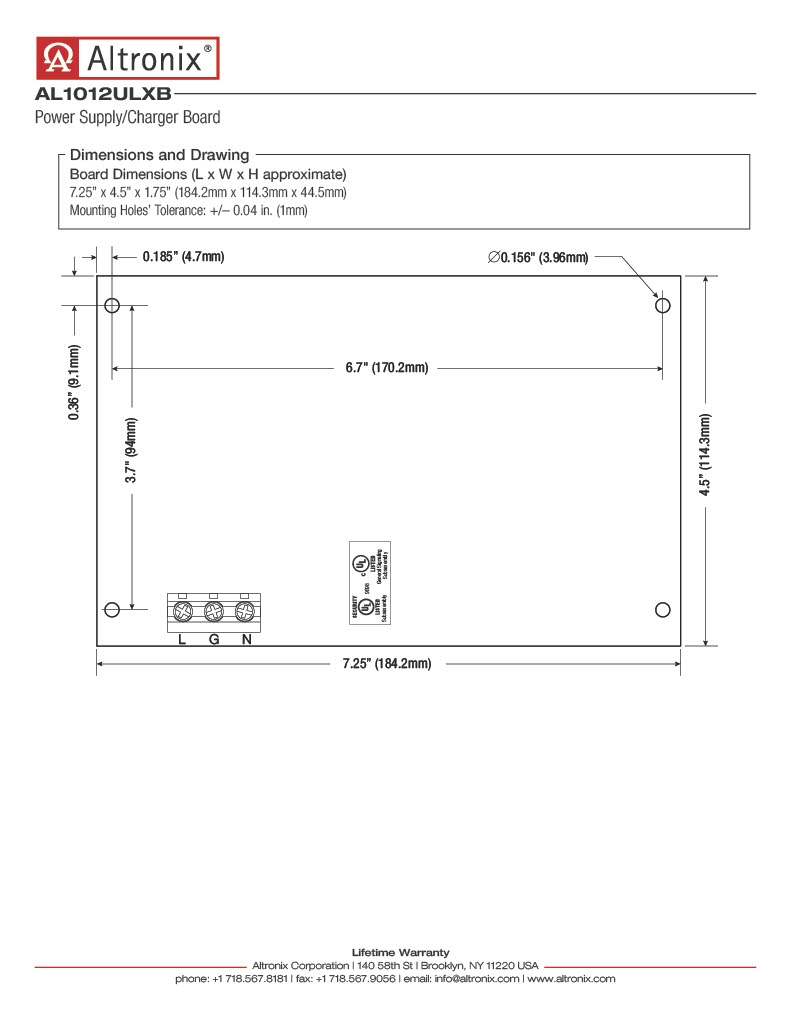

Dimensions (approximate): 4.5"W x 7.5"L x 2.25"H (114.3 mm W x 190.5 mm L x 57.15 mm H).

Product Weight:0.75 Lbs. (0.34 kg). - Shipping Weight: 0.9 Lbs. (0.41 kg).
