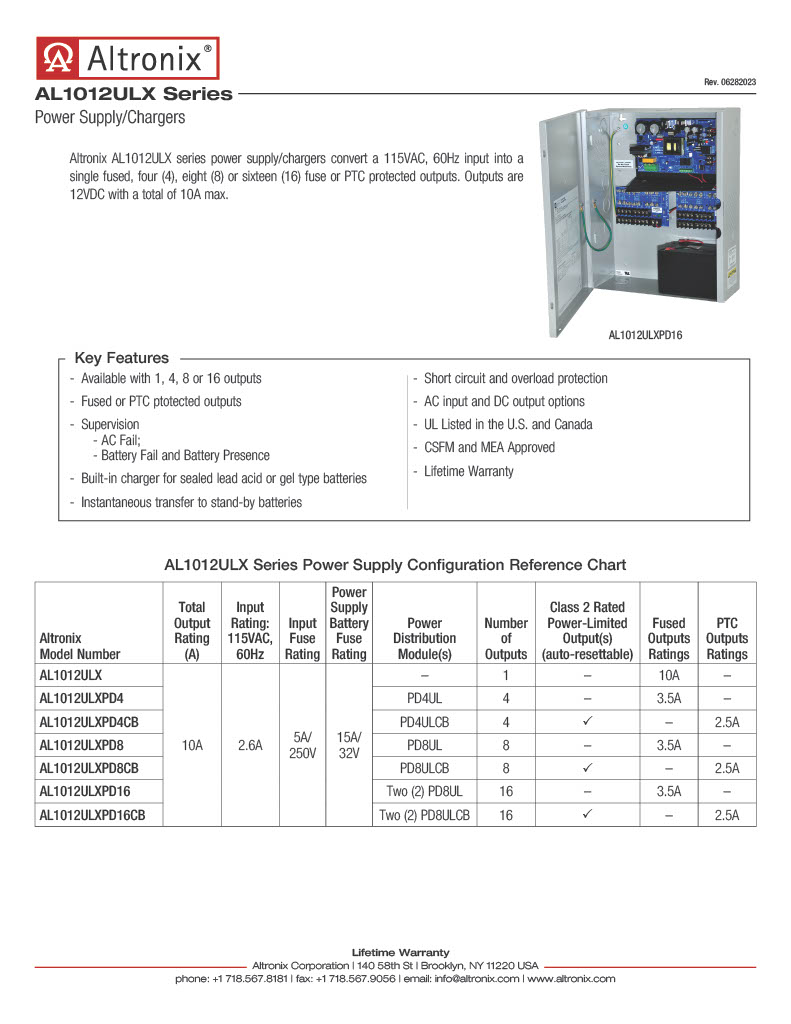

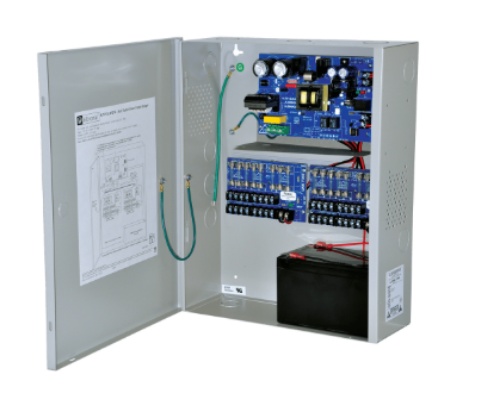

Altronix AL1012ULXPD16 Power Supply/Charger, Input 115VAC 60Hz at 1.9A, 16 Fused Outputs, 12VDC at 10A, Grey Enclosure

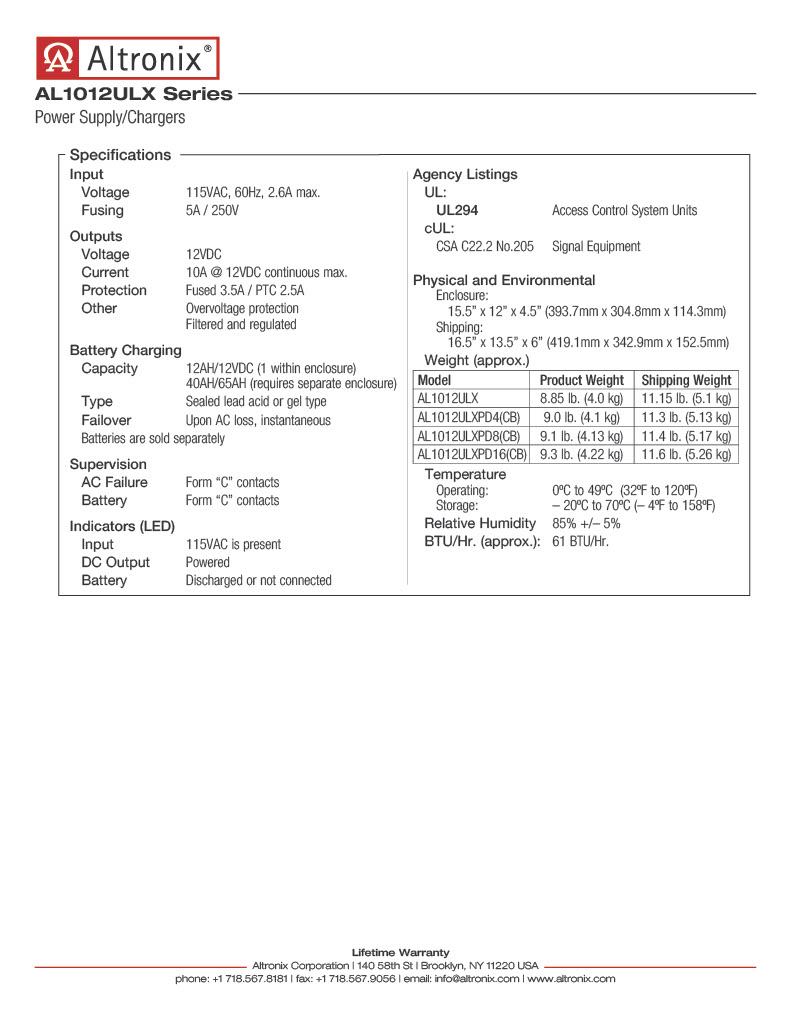

Altronix AL1012ULXPD16 Power Supply/Charger, Input 115VAC 60Hz at 1.9A, 16 Fused Outputs, 12VDC at 10A, Grey Enclosure, Lifetime Warranty * Specifications: * Input: 115VAC, 60Hz, 1.9A. Input fuse rated @ 5A/250V.

Output: 12VDC output. 10A continuous supply current. 16 fuse protected outputs. Output fuses are rated @ 3.5A/250VAC. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 to 49 C (32 to 120 F ). Storage - 20 to 70 C ( - 4 to 158 F). Relative Humidity 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr. System AC input VA requirement: 299VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 1 12VDC/12AH Batteries. Dimensions: 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D). 1.125" and 1.375" combination knockouts.

Product Weight: 9.3 Lbs. (4.22 kg). - Shipping Weight: 11.6 Lbs. (5.26 kg).

*Batteries sold separately
