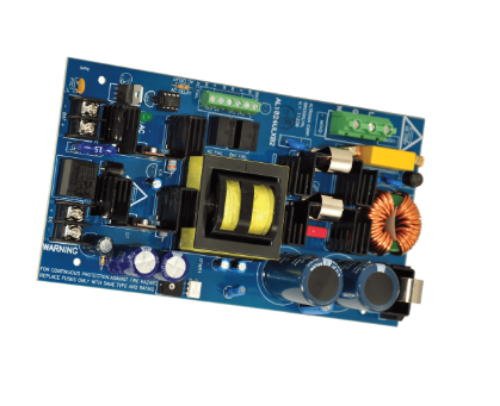

Altronix AL1024ULXB2 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board

Altronix AL1024ULXB2 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board, Lifetime Warranty

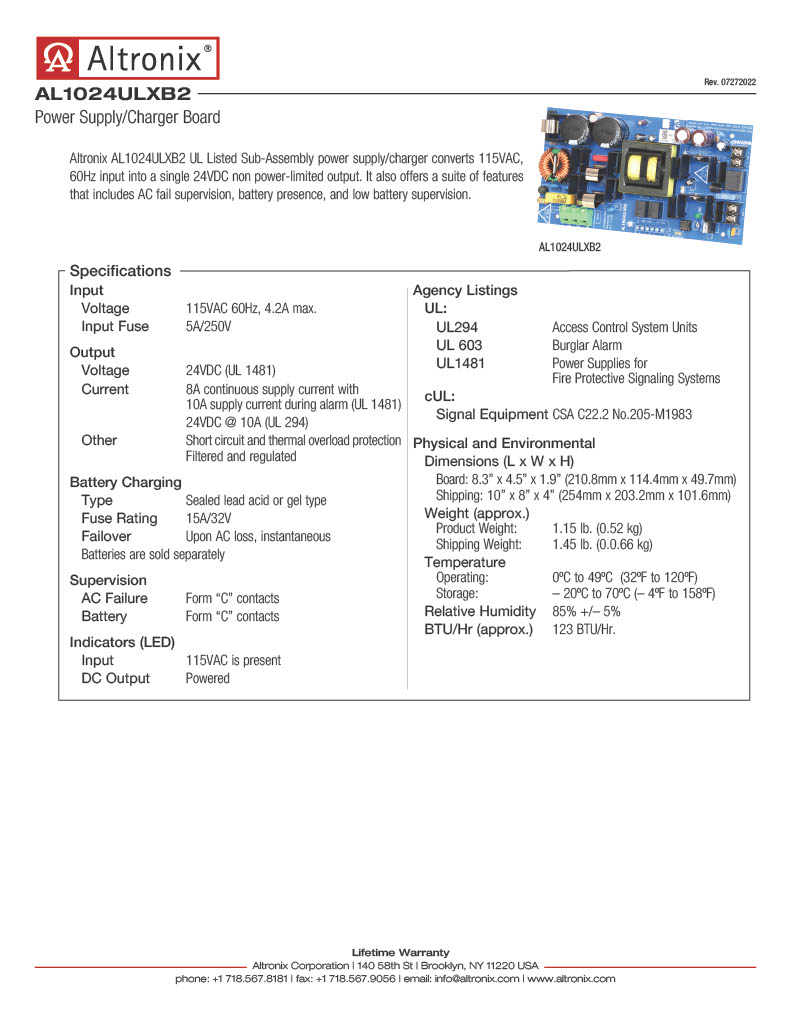

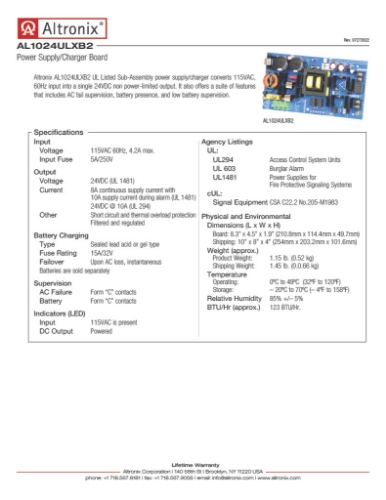

Specifications:

Input:115VAC / 60Hz, 4.2A.

Output:24VDC output (UL 1481). 8A continuous supply current with 10A supply current during alarm (UL 1481). 24VDC @ 10A (UL 294). Filtered and electronically regulated output. Maximum Ripple: 250mV P/P. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 3.6A. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when switched over to battery backup.

Visual Indicators:AC input and DC output LED indicators.

Supervision: AC fail supervision (form "C" contacts). Low battery and battery presence supervision (form "C" contacts).

Additional Feature:Short circuit and thermal overload protection.

Electrical: * *Temperature:Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity:85% +/- 5%. BTU/Hr (approx.):123 BTU/Hr. System AC input VA requirement:483VA.

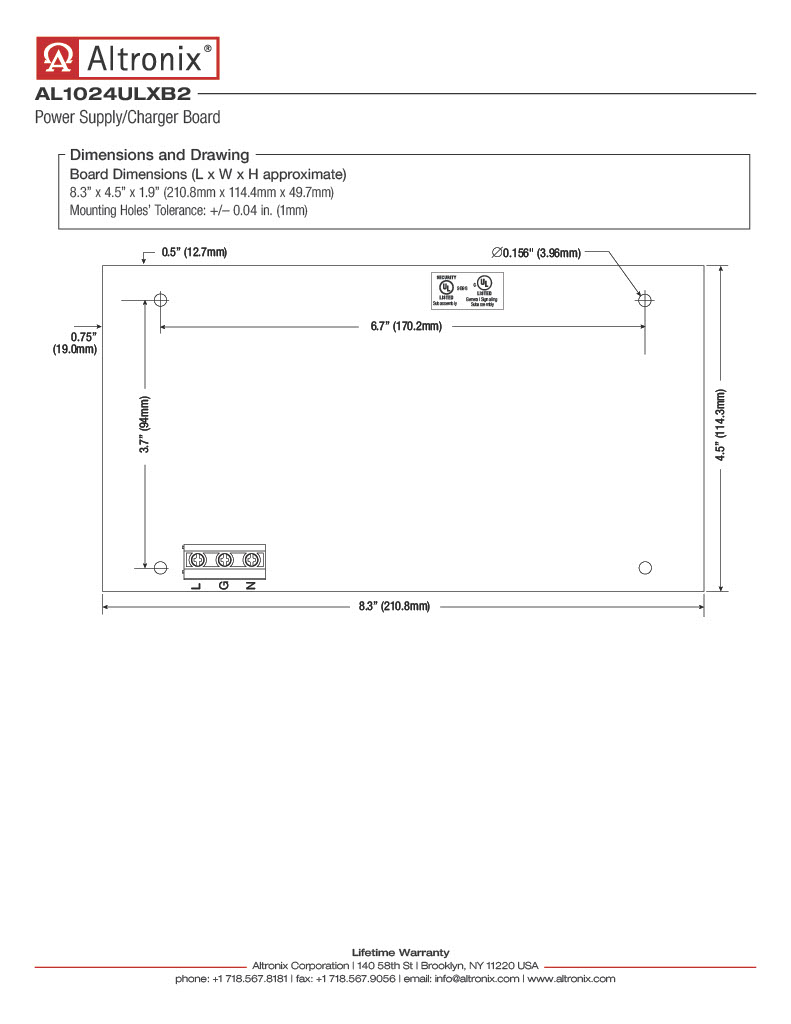

Mounting hardware included.Dimensions (approximate):

4.505"W x 8.4"L x 1.955"H (114.427 mm W x 213.36 mm L x 49.657 mm H).

Product Weight:1.15 Lbs. (0.52 kg). Shipping Weight:1.45 Lbs. (0.66 kg).

Altronix AL1024ULXB2, AL1024ULXB2, AL1024ULXB2 Altronix,
