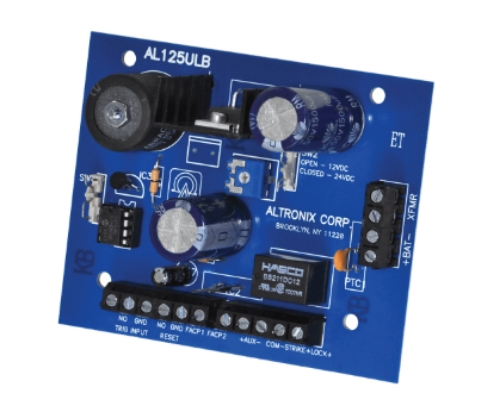

Altronix AL125ULB Power Supply Board, 24VAC, 40VA from UL Listed Class 2 Transformer, 2 PTC Outputs, 12/24VDC at 1A

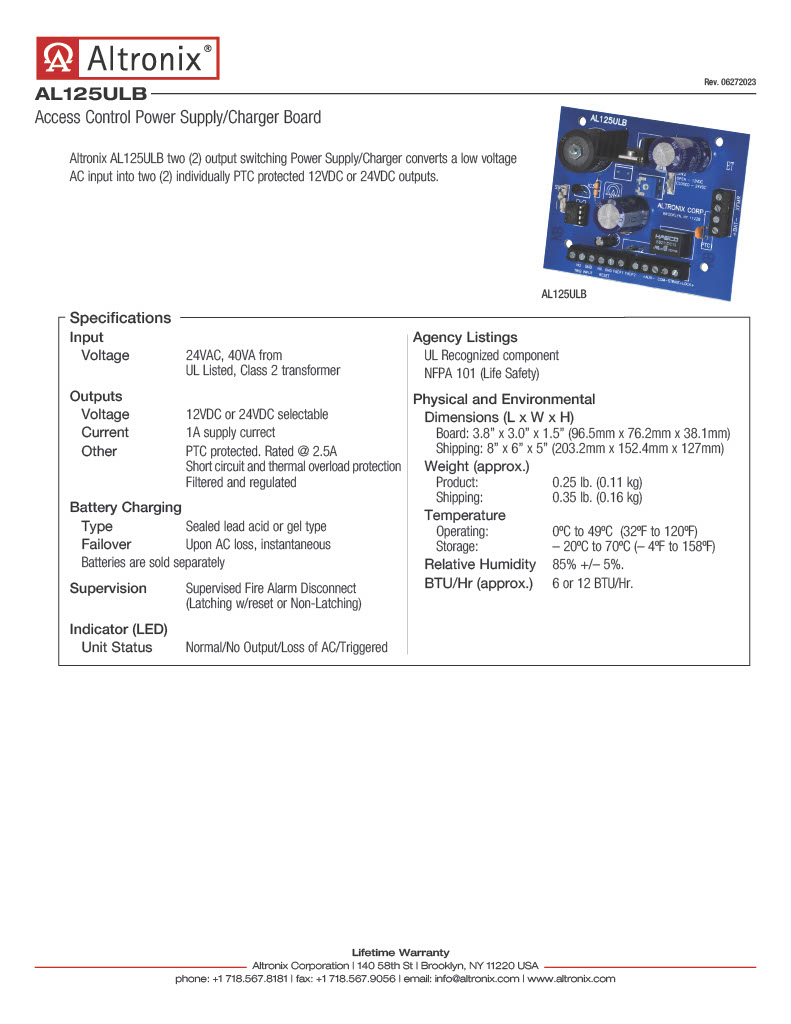

Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 24VAC, Board, Lifetime WarrantySpecifications:Input:

24VAC, 40VA from UL Listed, Class 2 transformer. Access control trigger input.

Output: 12VDC or 24VDC selectable outputs. 1A supply current. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED): Unit Status: Normal / No Output / Loss of AC / Triggered.

Temperature: Operating Temperature: 0 C to 49 C (32 F to 120 F). Storage Temperature: - 20 C to 70 C ( -4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.):6 or 12 BTU/Hr. System AC input VA requirement:55.2VA

Dimensions (approximate): 3.5"W x 3.9"L x 1.4"H (88.9 mm W x 99.6 mm L x 35.56 mm H).

Product Weight:1.4 Lbs. (0.64 kg). - Shipping Weight: 1.6 Lbs. (0.73 kg).

*Mounting hardware included.
