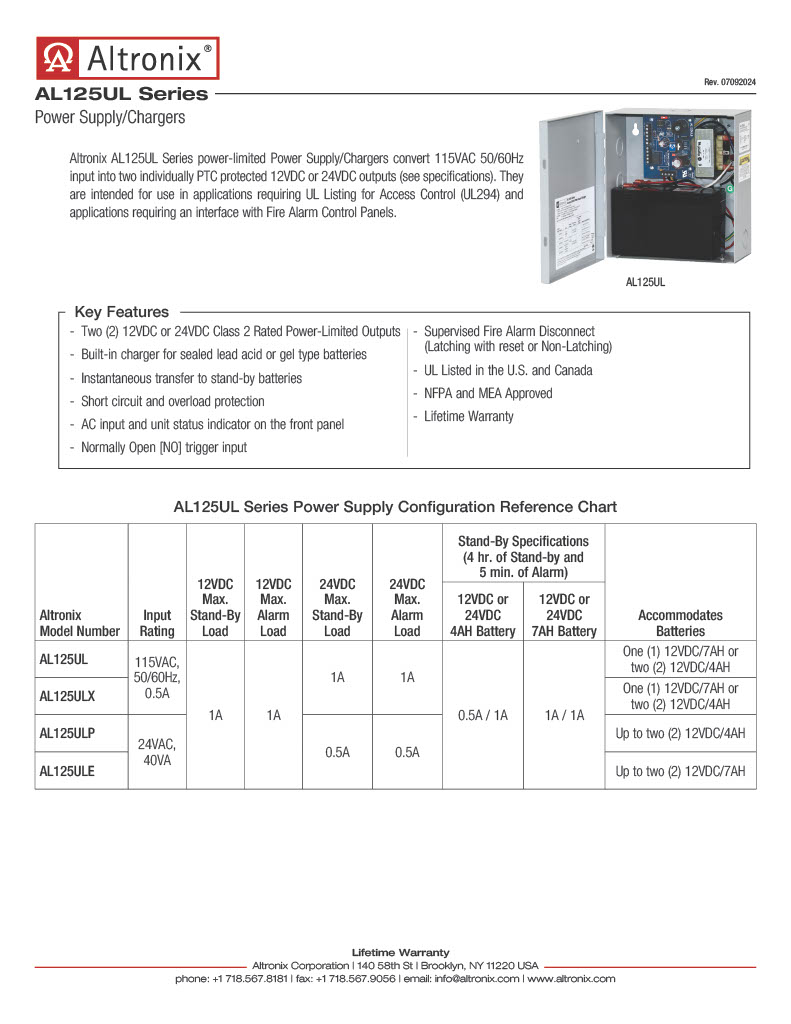

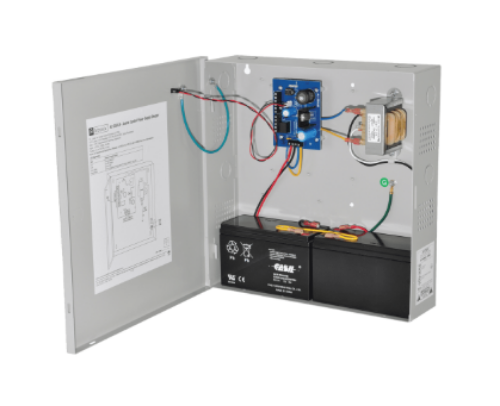

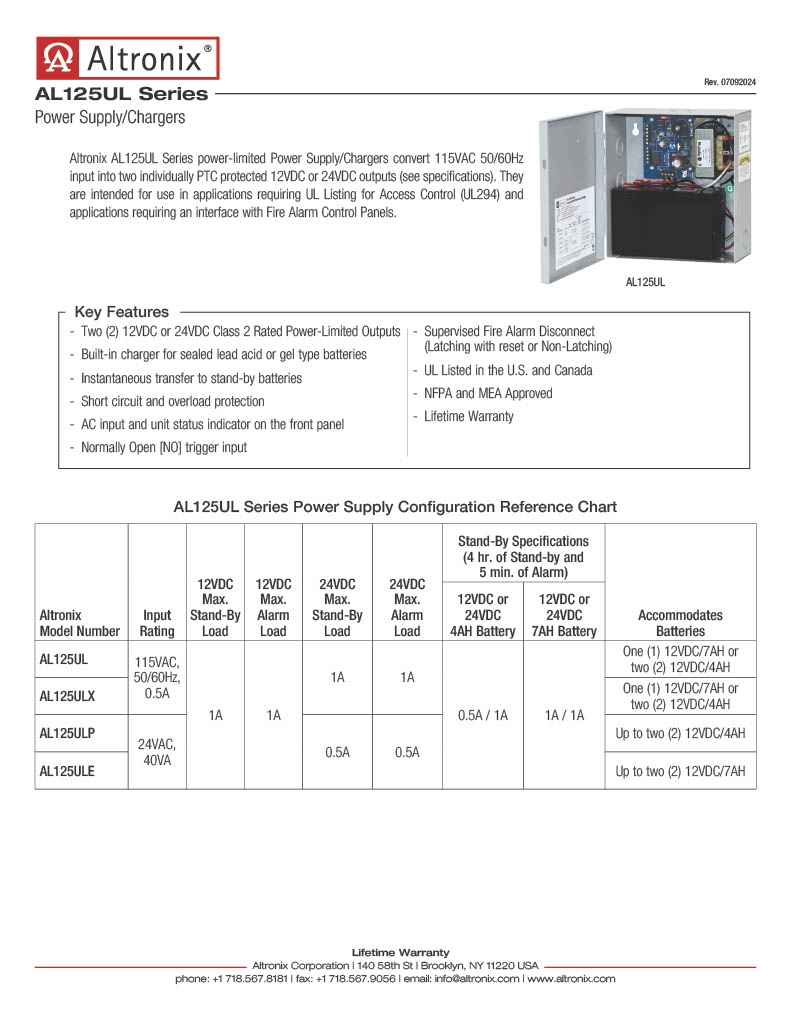

Altronix AL125ULX Power Supply/Charger, Input 115VAC 50/60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1A, Grey Enclosure

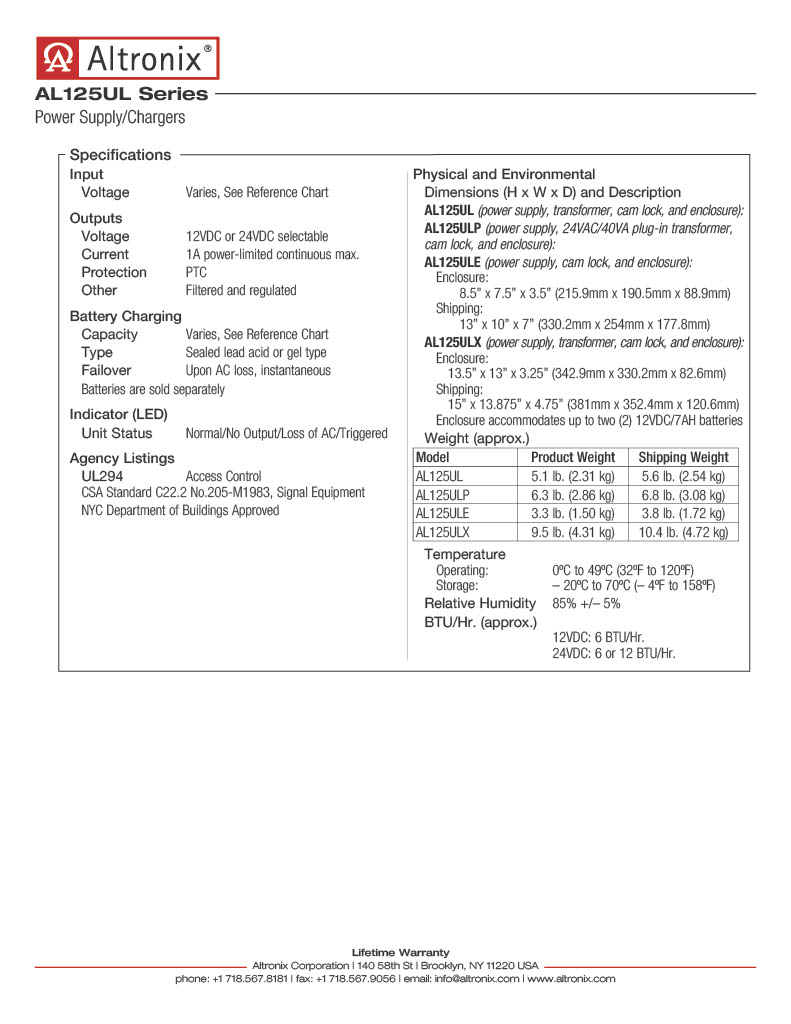

Altronix AL125ULX Power Supply/Charger, Input 115VAC 50/60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1A, Grey Enclosure, Lifetime WarrantySpecifications

Input: 115VAC, 50/60Hz, 0.6A. Access control trigger input. Output:

12VDC or 24VDC selectable outputs. 1A supply current. 2 Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED): Unit Status: Normal / No Output / Loss of AC / Triggered.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 6 BTU/Hr. 24VDC: 6 or 12 BTU/Hr.  System AC input VA requirement: 55.2VA.

Enclosure: Wall mount enclosure for indoor use.

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:9.5 Lbs. (4.31 kg). - Shipping Weight: 10.4 Lbs. (4.72 kg).

*Batteries sold separately
