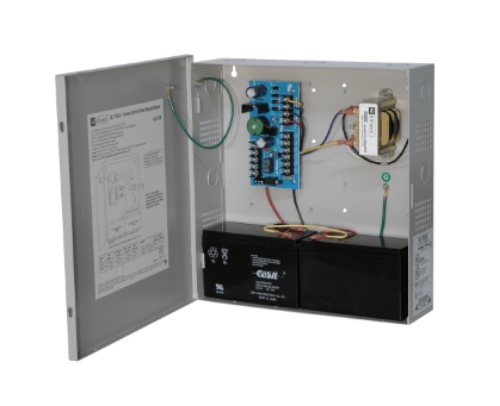

Altronix AL175ULX Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure

Altronix AL175ULX Power Supply/Charger, Input 115VAC 60Hz at 0.6A, 2 PTC Outputs, 12/24VDC at 1.75A, Grey Enclosure, Lifetime Warranty

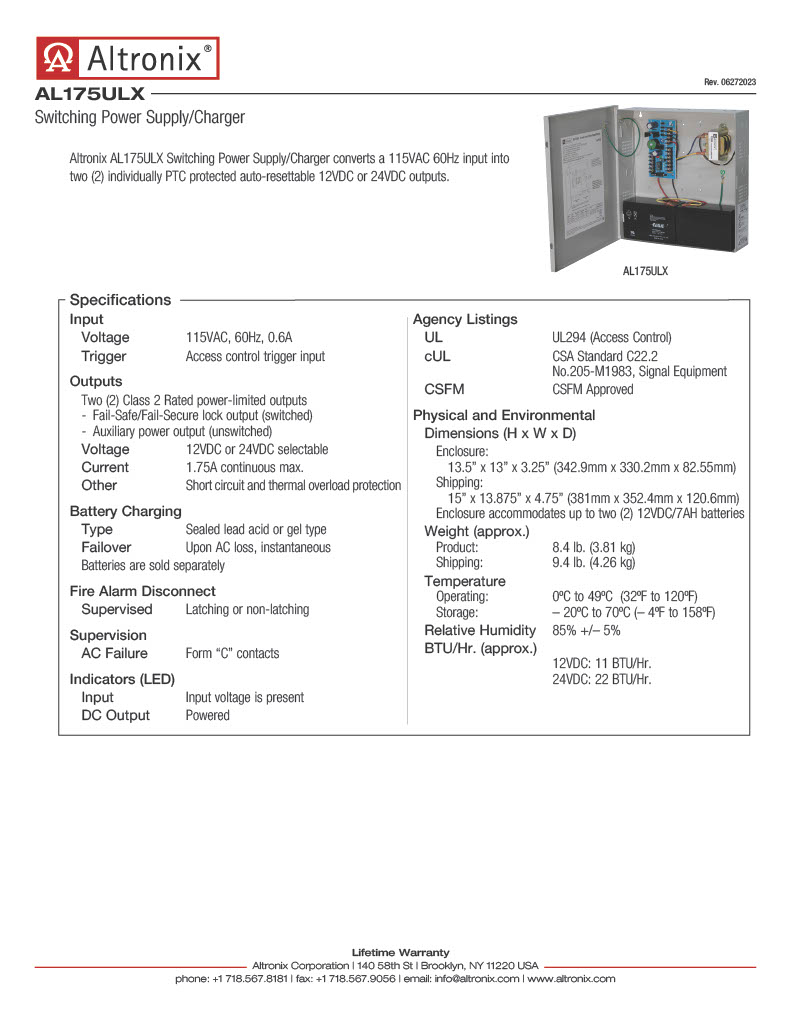

Specifications:

Input: 115VAC, 60Hz, 0.6A. Access control trigger input.

Output: 12VDC or 24VDC selectable outputs. 1.75A supply current. 2 Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.):12VDC: 11 BTU/Hr. - 24VDC: 22 BTU/Hr. System AC input VA requirement: 69VA.

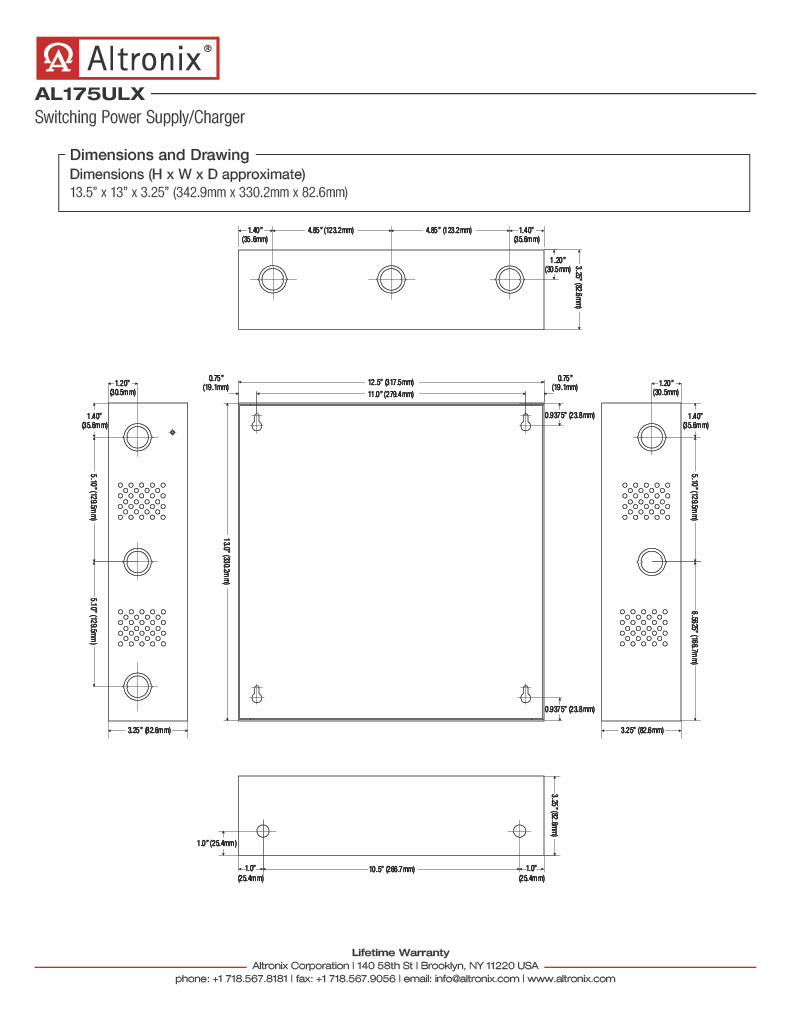

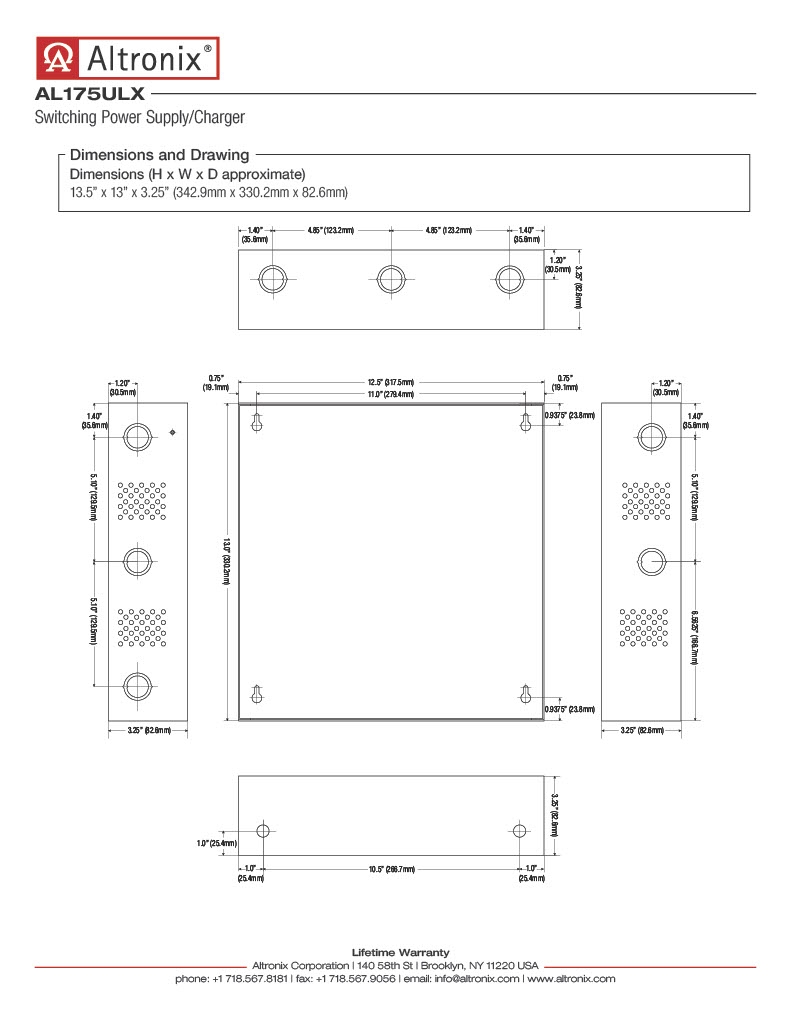

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 2 12VDC/7AH Batteries Dimensions:13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:8.4 Lbs. (3.81 kg). - Shipping Weight: 9.4 Lbs. (4.263 kg).

AL175ULX ALTRONIX, ALTRONIX AL175ULX, AL175ULX,

*Batteries sold separately
