Altronix AL176UL Access Control Power Supply Charger - Input 115VAC 60Hz at 0.6A, Single PTC Output, 12/24VDC at 1.75A, Grey Enclosur

Altronix AL176UL Access Control Power Supply Charger - Grey enclosure, Lifetime Warranty

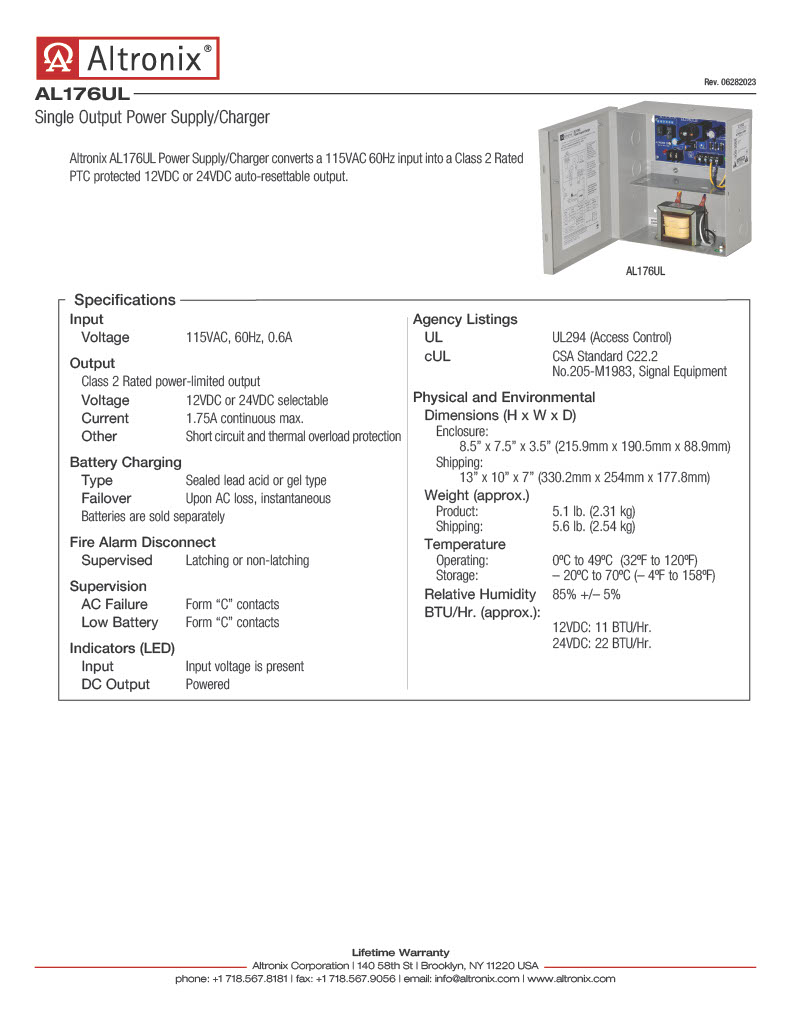

Specifications:

Input:115VAC/60Hz, 0.6A. Output:12VDC or 24VDC selectable output. 1.75A supply current. Class 2 Rated power limited output. PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr. (approx.): 12VDC: 11 BTU/Hr. 24VDC: 22 BTU/Hr. System AC input VA requirement: 69VA.

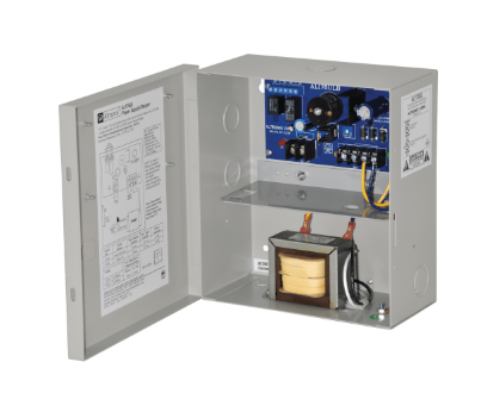

Enclosure:Wall mount Grey enclosure for indoor use.

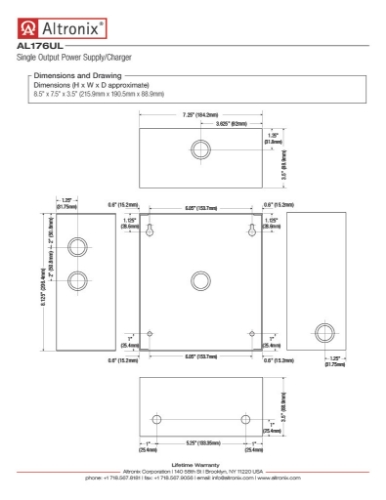

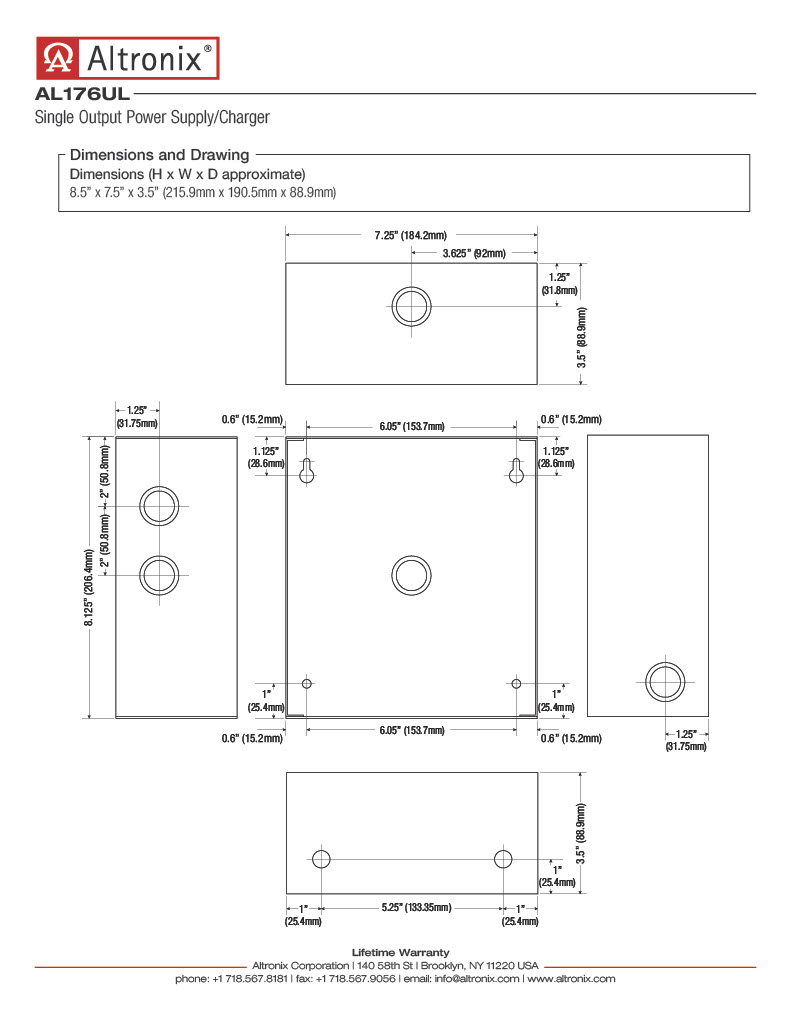

Dimensions:7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:5.1 Lbs. (2.31 kg). Shipping Weight: 5.6 Lbs. (2.54 kg).

Altronix AL176UL, AL176UL, AL176UL Altronix,
