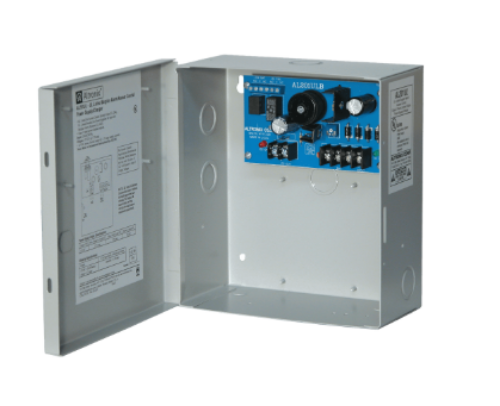

Altronix AL201UL Power Supply Charger Single Class 2 Output, 12VDC @ 1.75A,

Altronix AL201UL Power Supply Charger Single Class 2 Output, 12VDC @ 1.75A,Lifetime Warranty * *Specifications:Input:

24VAC, 40VA from UL Listed, Class 2 transformer. Output:12VDC output. Class 2 Rated power limited output. 1.75A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators:AC input and DC output LED indicators.

Temperature:Operating 0 Degree C to 49 Degree C (32 Degree F to 120 Degree F). Storage - 20 Degree C to 70 Degree C ( - 4 Degree F to 158 Degree F). Relative Humidity 85% +/- 5%.

BTU/Hr.*(approx.):11 BTU/Hr. *System AC input VA requirement:55.2VA

Enclosure:Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/4AH Batteries.

Dimensions:7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:4.25 Lbs. (1.93 kg). Shipping Weight:4.75 Lbs. (2.15 kg).

*Batteries sold separately
