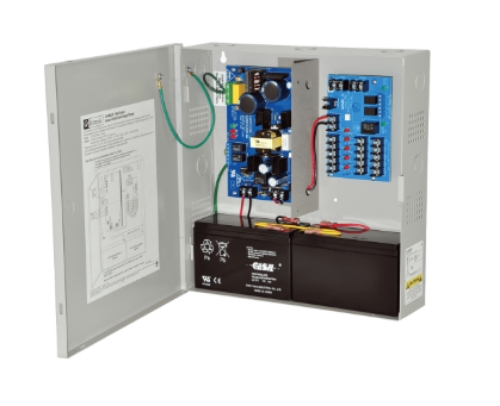

Altronix AL400ULM Power Supply with Fire Alarm Disconnect, Input 115VAC 60Hz at 3.5A, 5 PTC Outputs, 12VDC at 4A or 24VDC at 3A Grey Enclosure

Altronix AL400ULM Power Supply with Fire Alarm Disconnect, Input 115VAC 60Hz at 3.5A, 5 PTC Outputs, 12VDC at 4A or 24VDC at 3A Grey Enclosure, Lifetime Warranty

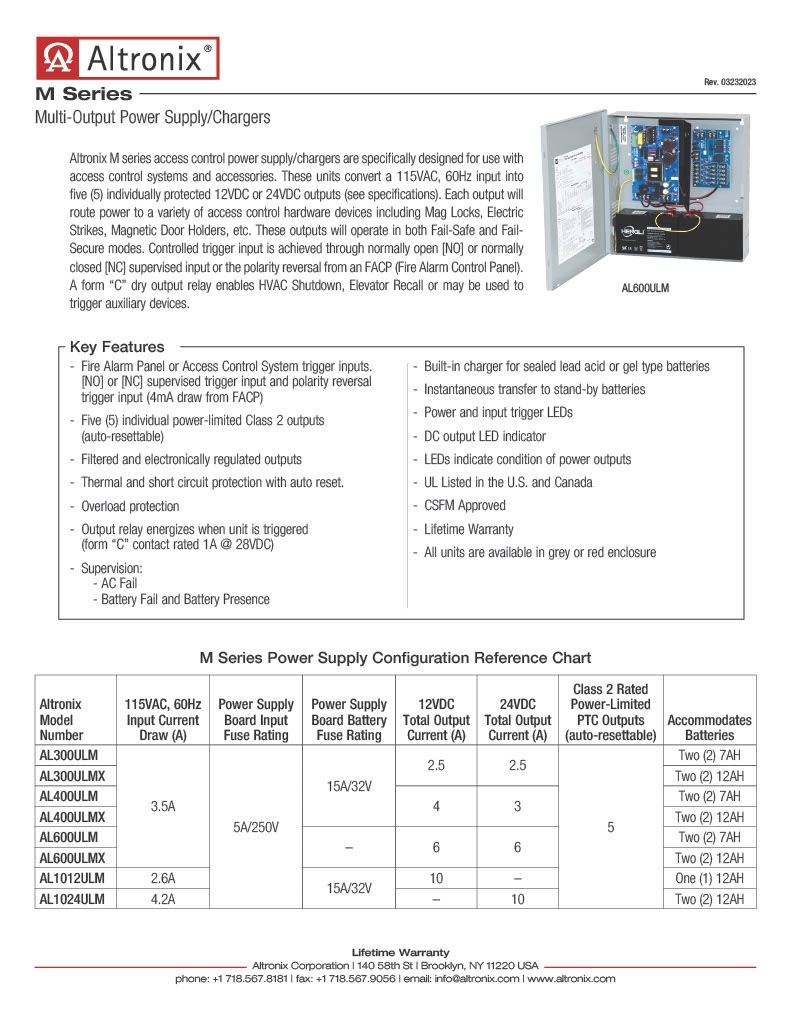

This unit converts a 115VAC / 60Hz input into 5 individually protected Class 2 Rated power limited 12VDC or 24VDC outputs, Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc.

These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.)supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel).    A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.

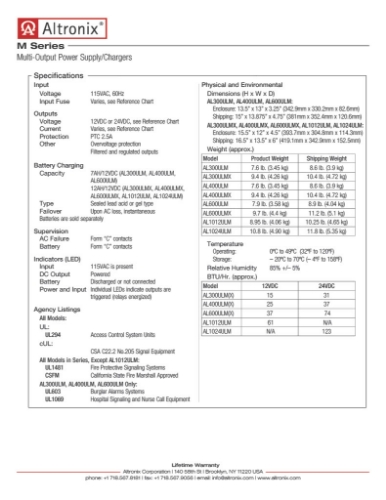

*Specifications:Input : *

115VAC / 60Hz, 3.5A. Input fuse rated @ 5A/250V. Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.

Output: 12VDC or 24VDC selectable outputs. 12VDC @ 4A or 24VDC @ 3A supply current.   Burglar Alarm Applications:    12VDC = 10VDC-13.2VDC;    24VDC = 20VDC-26.4VDC. Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto-resettable). Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC). Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Power fail supervision relay (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators (power supply board). Red LEDs indicate condition of power outputs (multi-output board). Power & input trigger LEDs (multi-output board).

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 25 BTU/Hr. 24VDC: 37 BTU/Hr. System AC input VA requirement: 402.5VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 2 12VDC/7AH Batteries. *Batteries sold separately

Dimensions:13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:7.6 Lbs. (3.45 kg).Shipping Weight: 8.6 Lbs. (3.9 kg).
