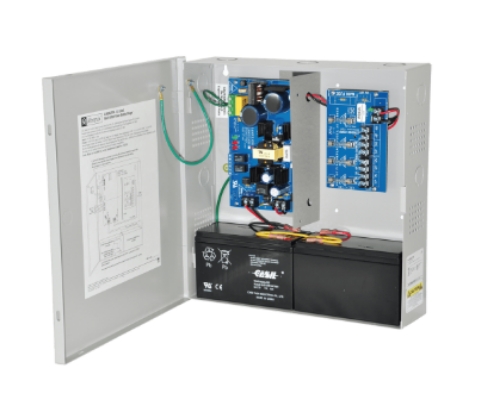

Altronix AL400ULPD4 Power Supply/Charger, Input 115VAC 60Hz at 3.5A, 4 Fused Outputs, 12VDC at 4A or 24VDC at 3A, Grey Enclosure

Altronix AL400ULPD4 Power Supply/Charger, Input 115VAC 60Hz at 3.5A,  4 Fused Outputs, 12VDC at 4A or 24VDC at 3A, Grey Enclosure, Lifetime Warranty

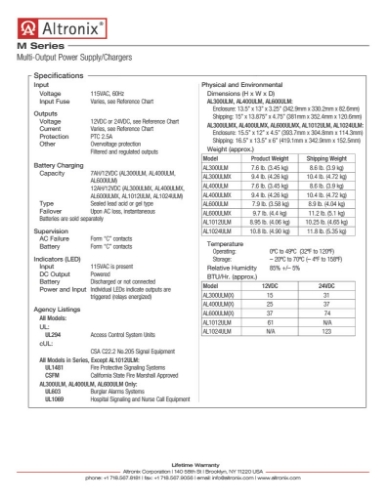

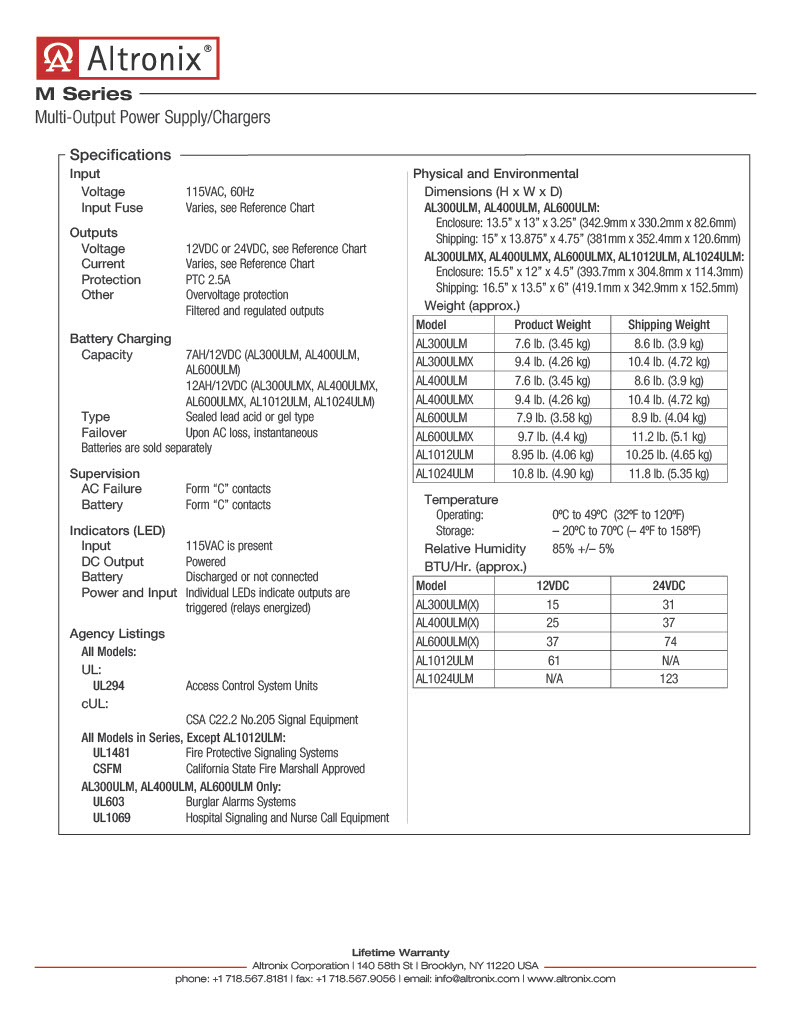

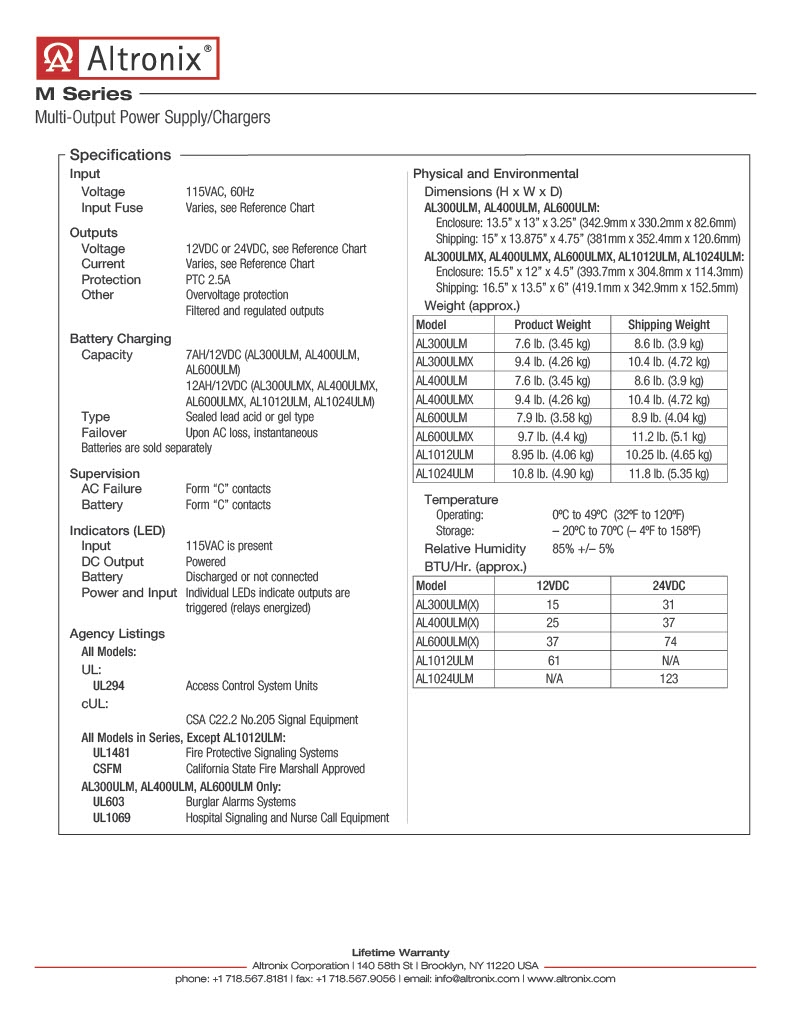

Specifications:

Input: 115VAC, 60Hz, 3.5A. Input fuse rated @ 3.5A/250V.

Output: 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. 4 Class 2 Rated fuse protected power limited outputs. Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 25 BTU/Hr. 24VDC: 37 BTU/Hr. System AC input VA requirement: 166.75VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/7AH Batteries. Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts. *Batteries sold separately

Product Weight: 7.1 Lbs. (3.22 kg). Shipping Weight: 8.9 Lbs. (4.04 kg).
