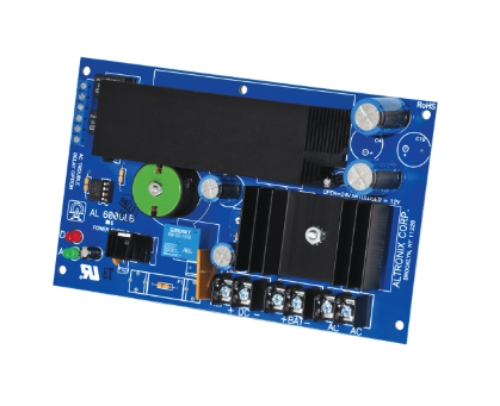

Altronix AL600ULB Power Supply Board, Input Two 28VAC/100VA, 1A Transformers, 12/24VDC at 6A Output

Altronix AL600ULB Power Supply Board, Input Two 28VAC/100VA, 1A Transformers, 12/24VDC at 6A Output, Lifetime Warranty

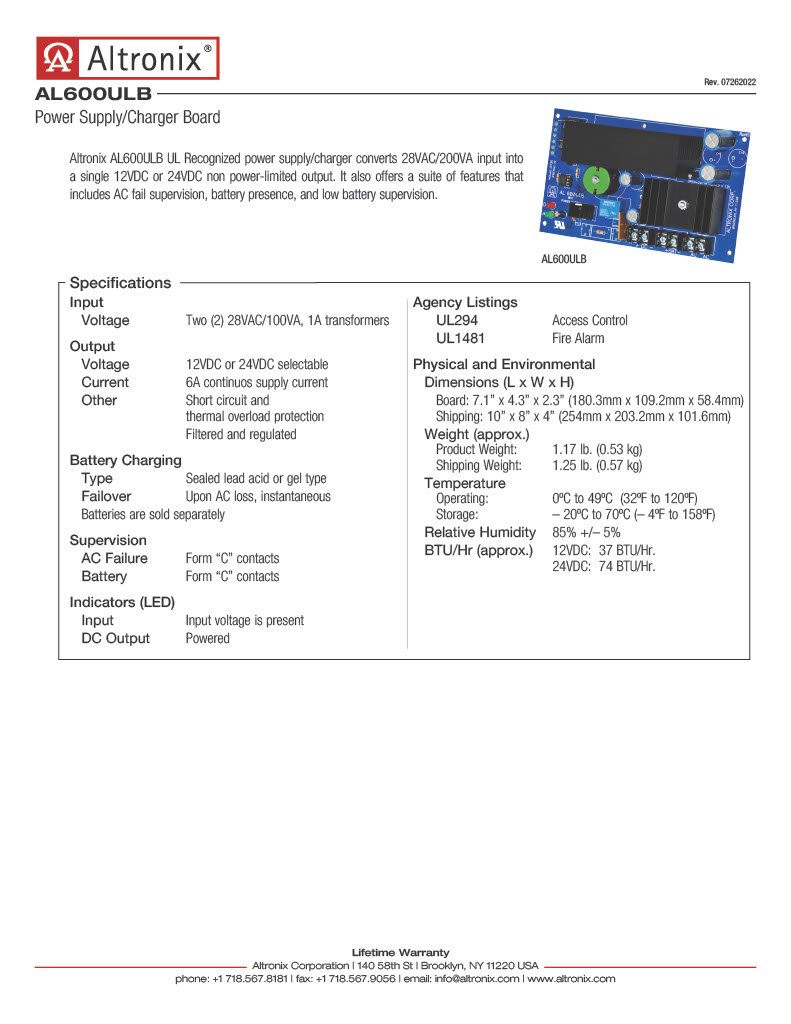

Specifications:

Input: 2 28VAC/100VA, 1A transformers. Output: 12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Backup:

Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Supervision:

AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators:

AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 37 BTU/Hr. - 24VDC: 74 BTU/Hr. System AC input VA requirement: 230VA.

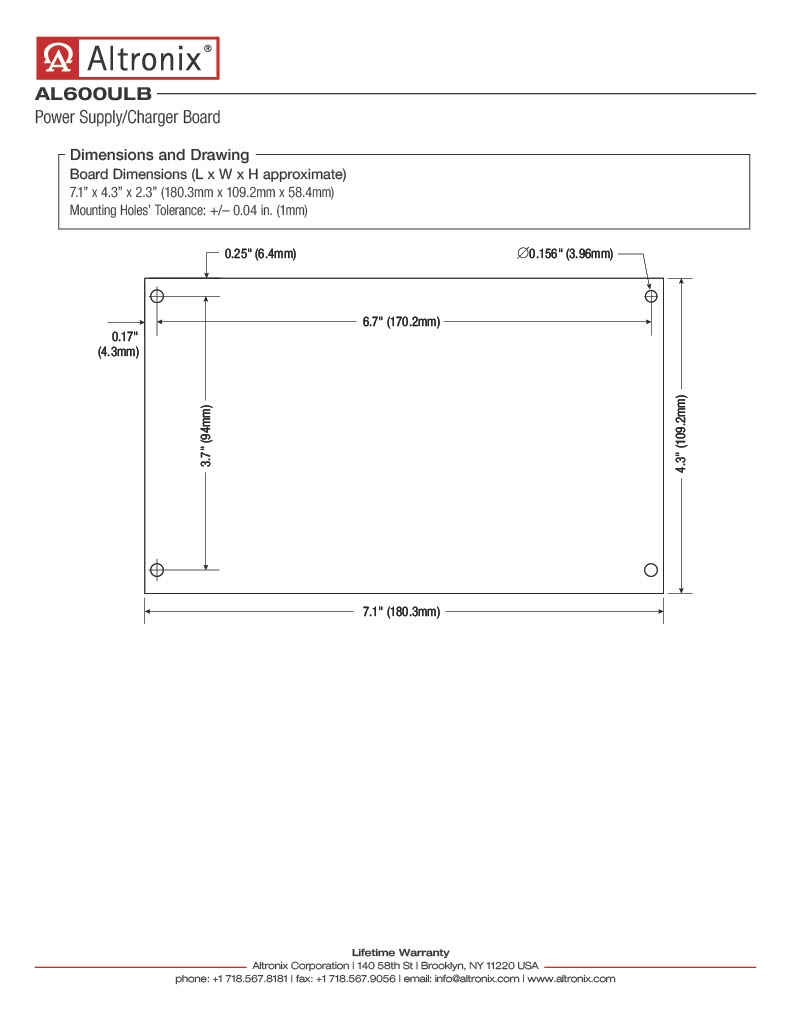

Dimensions (approximate): 4.3"W x 7.1"L x 2.3"H (109.22 mm W x 180.34 mm L x 58.42 mm H).

Product Weight:1.17 Lbs. (0.53 kg). - Shipping Weight: 1.25 Lbs. (0.57 kg).
