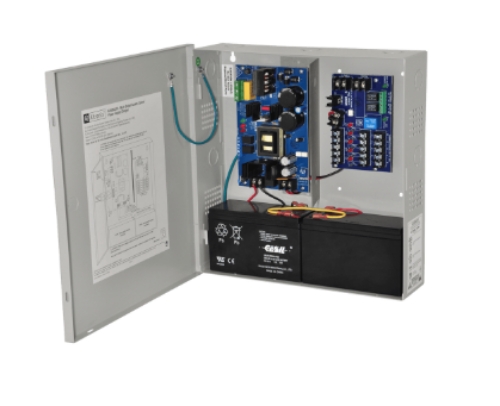

Altronix AL600ULM Power Supply with Fire Alarm Disconnect, Input 115VAC 60Hz at 3.5A, 5 PTC Outputs, 12/24VDC at 6A, Grey Enclosure

Altronix AL600ULM Power Supply with Fire Alarm Disconnect, Input 115VAC 60Hz at 3.5A, 5 PTC Outputs, 12/24VDC at 6A, Grey Enclosure, Lifetime Warranty

This unit converts a 115VAC, 60Hz input into 5 individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc.

These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.

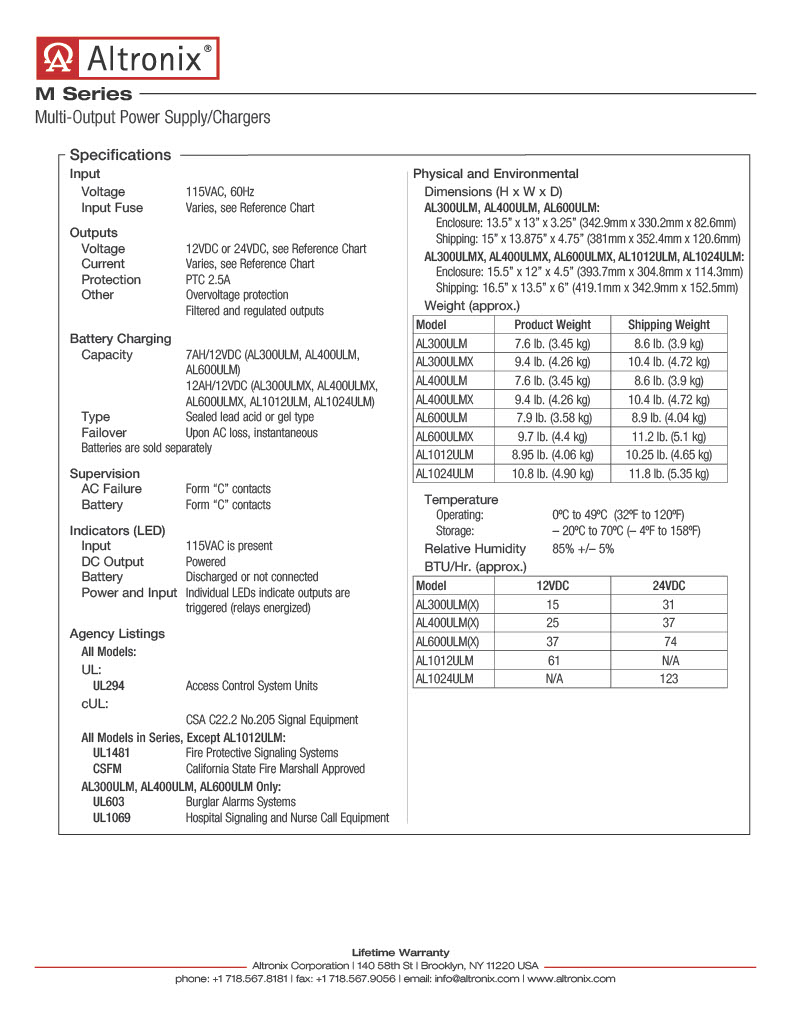

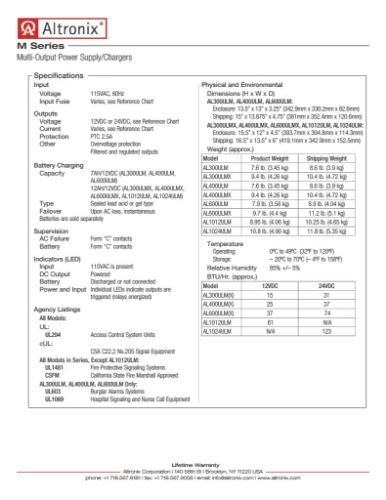

Specifications: * *Input: 115VAC, 60Hz, 3.5A. Input fuse rated @ 3.5A/250V. Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C.supervised trigger input and polarity reversal trigger input.

Output: 12VDC or 24VDC selectable outputs. 6A supply current. 5 PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto resettable). Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC). Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Power fail supervision relay (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators (power supply board). Red LEDs indicate condition of power outputs (multi-output board). Power & input trigger LEDs (multi-output board).

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.):12VDC: 37 BTU/Hr. - 24VDC: 74 BTU/Hr. System AC input VA requirement: 166.75VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/7AH Batteries.

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:7.9 Lbs. (3.583 kg). - Shipping Weight: 8.9 Lbs. (4.036 kg).

*Batteries sold separately
