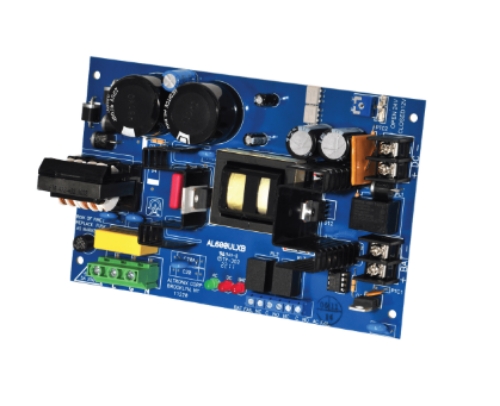

Altronix AL600ULXB Off-Line Switching Power Supply Board, Input 115VAC 60Hz at 3.5A, 12/24VDC at 6A Output

Altronix AL600ULXB Off-Line Switching Power Supply Board, Input 115VAC 60Hz at 3.5A, 12/24VDC at 6A Output, Lifetime Warranty

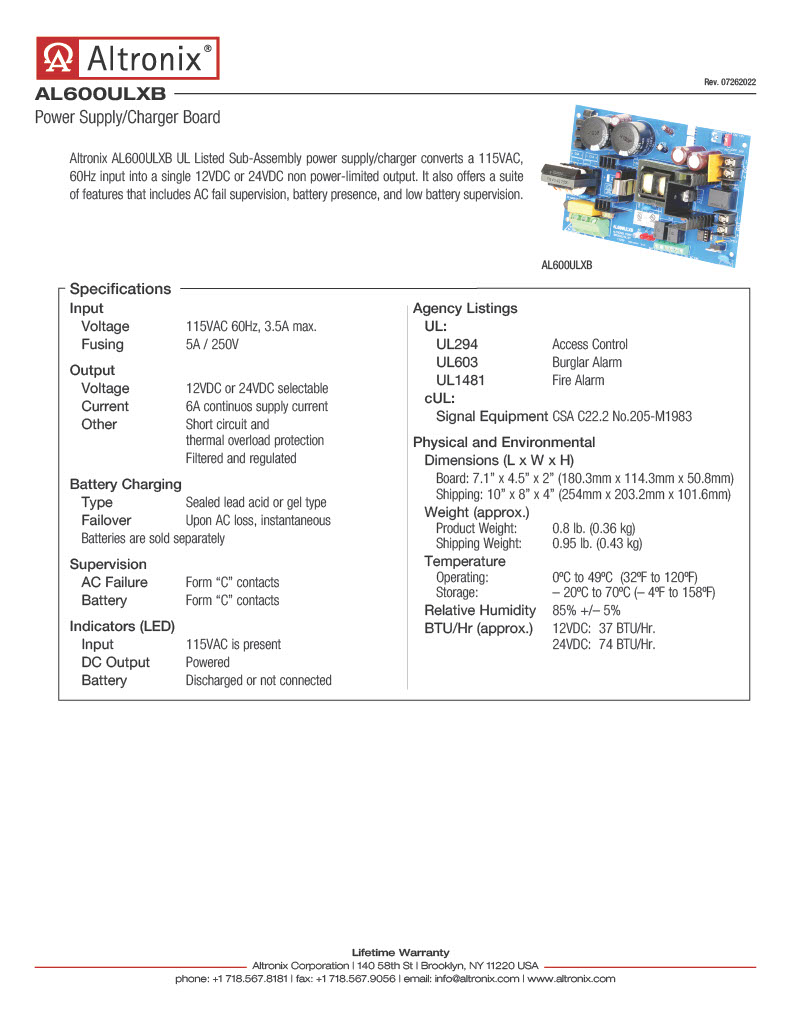

Specifications: * *Input: 115VAC, 60Hz, 3.5A.

Output: 12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 Degree F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 37 BTU/Hr. - 4VDC: 74 BTU/Hr. System AC input VA requirement: 402.5VA.

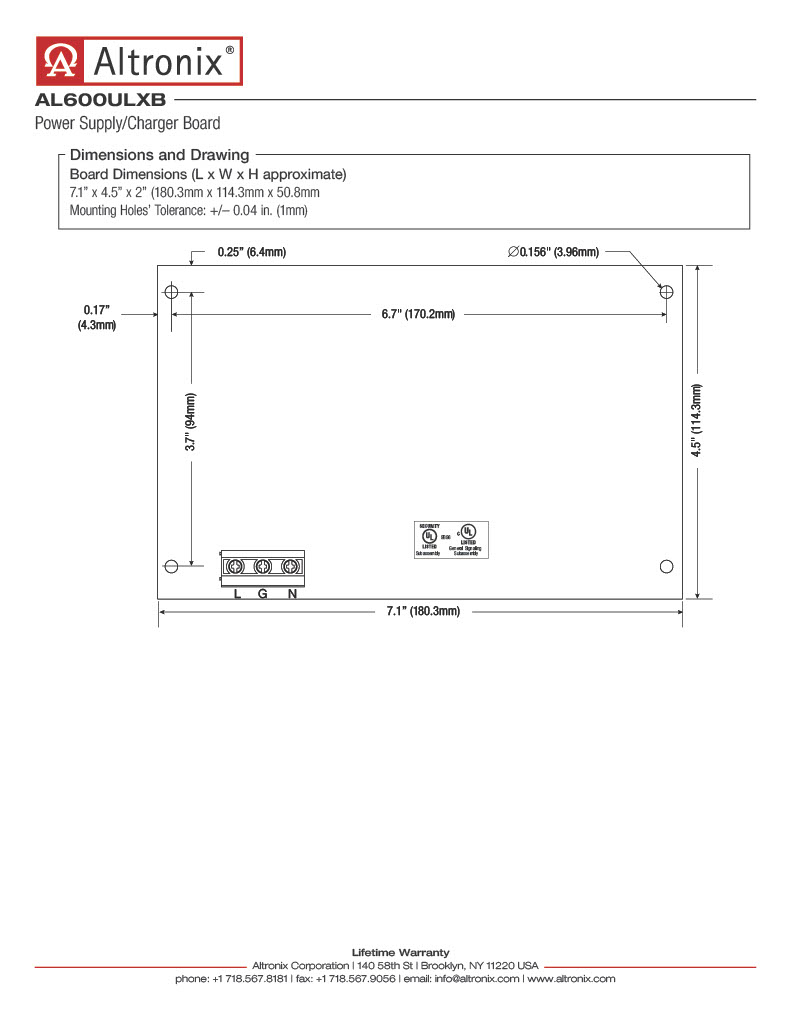

Dimensions (approximate): 4.5"W x 7.1"L x 2.6"H (114.3 mm W x 180.3 mm L x 66.04 mm H).

Product Weight:0.8 Lbs. (0.36 kg). - Shipping Weight: 0.95 Lbs. (0.43 kg).
