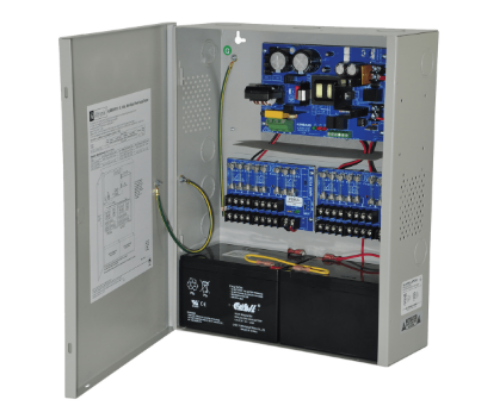

Altronix AL600ULXPD16 Power Supply/Charger, Input 115VAC 60Hz at 3.5A, 16 Fused Outputs, 12/24VDC at 6A, Grey Enclosure

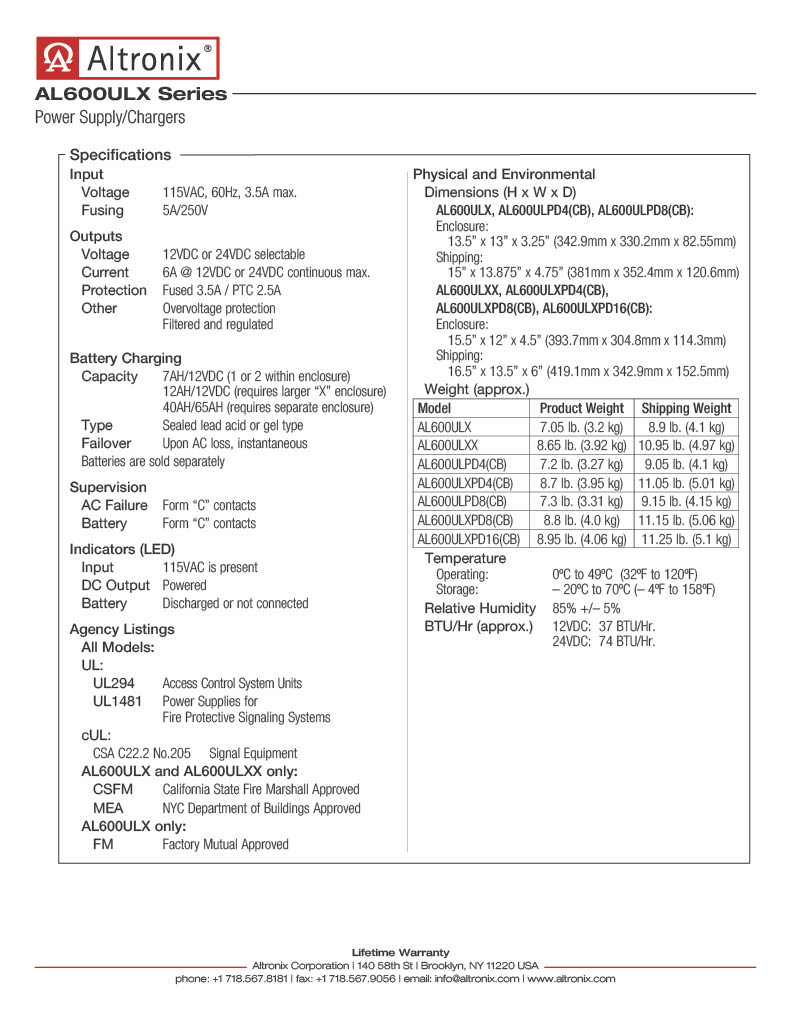

Altronix AL600ULXPD16 Power Supply/Charger, Input 115VAC 60Hz at 3.5A, 16 Fused Outputs, 12/24VDC at 6A, Grey Enclosure, Lifetime WarrantySpecifications:Input:

115VAC, 60Hz, 3.5A.

Output: 12VDC or 24VDC selectable output. 6A continuous supply current. 16 fuse protected outputs. Output fuses are rated @ 3.5A/250VAC. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.):*12VDC: 37 BTU/Hr. - 24VDC: 74 BTU/Hr. System AC input VA requirement:*402.5VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/12AH Batteries.

*Batteries sold separately

Dimensions:12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D). 1.125" and 1.375" combination knockouts.

Product Weight:8.95 Lbs. (4.06 kg). - Shipping Weight: 11.25 Lbs. (5.1 kg).
