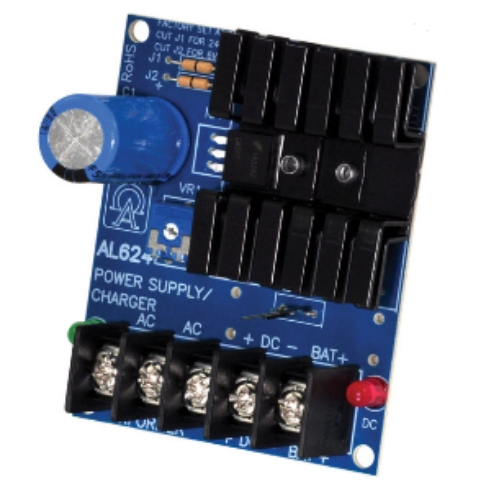

Altronix AL624 Linear Power Supply Board - Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC

Altronix AL624 Linear Power Supply Charger, Single Class 2 Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board, Lifetime Warranty

Input: 16VAC to 24VAC, 20VA to 40VA.

Output: Switch selectable 6VDC-12VDC-24VDC. 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. PTC battery protection.

Visual Indicators:AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%.

BTU/Hr.: 6VDC: 4 BTU/Hr. 12VDC: 7 BTU/Hr. 24VDC: 9 BTU/Hr.

System AC input VA requirement: 16.5VAC/20VA: 138. 16.5VAC/40VA: 276. 24VAC/20VA: 92. 24VAC/40VA: 192.05.

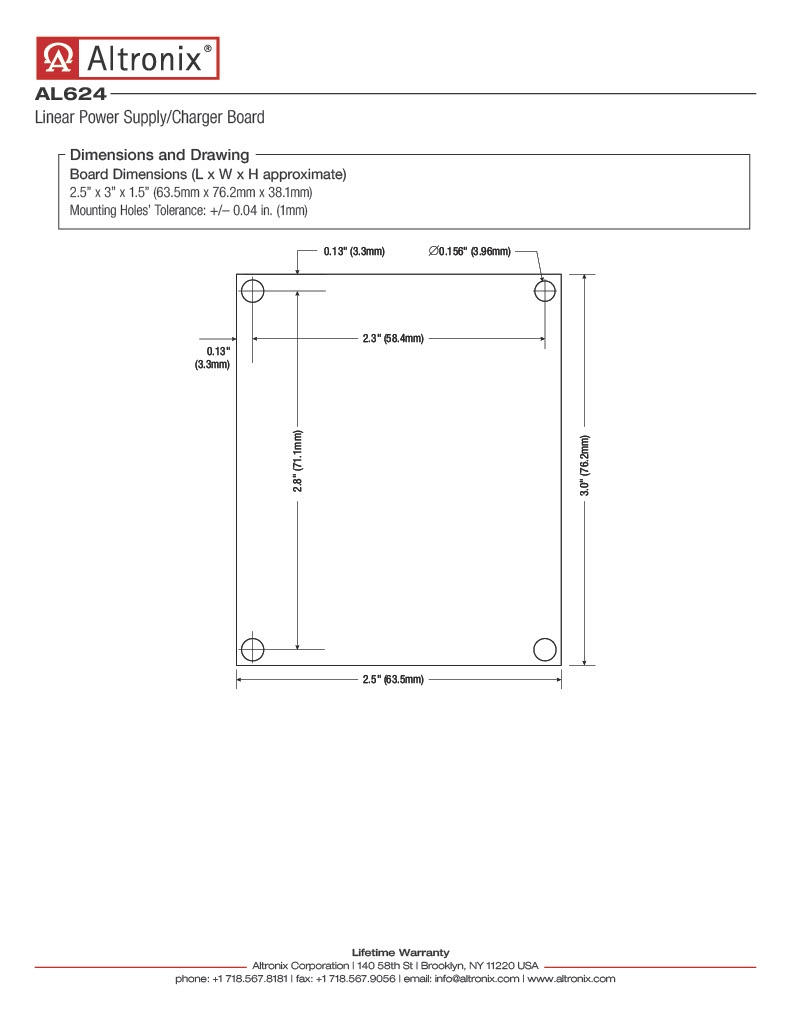

Dimensions (approximate): 2.5"W x 3"L x 1.5"H (63.5 mm W x 76.2 mm L x 38.1 mm H).

Weights (approximate): Product Weight: 0.1 Lbs. (0.05 kg). Shipping Weight: 0.15 Lbs. (0.07 kg).
