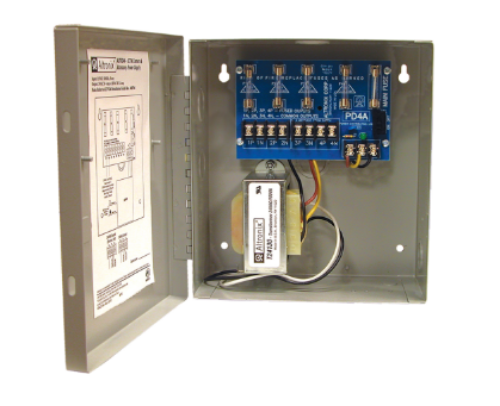

Altronix ALTV244 CCTV Power Supply, Input 115VAC 50/60Hz at 0.9A, 4 Fuse Protected Outputs, 24VAC at 4A or 28VAC at 3.5A, Grey Enclosure

**Altronix ALTV244 CCTV Power Supply, Input 115VAC 50/60Hz at 0.9A, 4 Fuse Protected Outputs, 24VAC at 4A or 28VAC at 3.5A, Grey Enclosure, Lifetime Warranty

Specifications: Input:**

115VAC, 50/60Hz, 0.9A. Output: 4 fuse protected outputs. 24VAC @ 4A (100VA) supply current (1A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.875A per device, 3.5A max.). Outputs are rated @ 3.5A. Surge suppression.

Features: Secondary fuse rated @ 5A/250V. AC power LED. Power ON/OFF switch. Spare fuses provided. (all models w/primary and/or secondary fuses).

Electrical: * *Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 24VAC: 49 BTU/Hr. - 28VAC: 50 BTU/Hr. System AC input VA requirement: 103.5VA.

Enclosure: Wall mount enclosure for indoor use.

Dimensions : 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:6.2 Lbs. (2.8 kg). - Shipping Weight: 6.8 Lbs. (3.1 kg).

ALTV244 ALTRONIX, ALTRONIX ALTV244, ALTV244,
