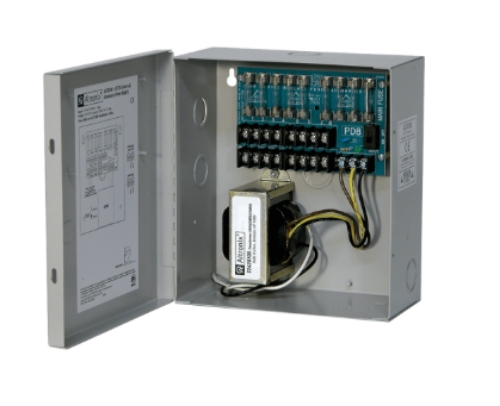

Altronix ALTV248 AC Wall Mount CCTV Power Supply - Input 115VAC 50/60Hz at 0.9A, 8 Fuse Protected Outputs, 24VAC at 4A or 28VAC at 3.5A

Altronix ALTV248 AC Wall Mount  CCTV Power Supply, Grey Enclosure, Lifetime Warranty

Specifications:Input:

115VAC, 50/60Hz, 0.9A.

Output:8 fuse protected outputs. 24VAC @ 4A (100VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.438A per device, 3.5A max.). Outputs are rated @ 3.5A. Surge suppression.

Features:

Secondary fuse rated @ 5A/250V. AC power LED. Power ON/OFF switch. Spare fuses provided. (all models w/primary and/or secondary fuses).

Electrical:Temperature: Operating: 0 Degree C to 49 Degree C (32 Degree F to 120 Degree F). Storage: - 20 Degree C to 70 Degree C ( - 4 Degree F to 158 Degree F). Relative Humidity: 85% +/- 5%. BTU/Hr (approx.): 24VAC: 49 TU/Hr. 28VAC: 50 BTU/Hr.

System AC input VA requirement:103.5VA.

Enclosure:Wall mount enclosure for indoor use.   Dimensions:7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).            1/2" and 3/4" combination knockouts.

Weights (approximate): product Weight: 6.5 Lbs. (2.9 kg). Shipping Weight: 7 Lbs. (3.2 kg).

ALTV248 ALTRONIX, ALTRONIXALTV248,Altronix Power Supply/Charger,
