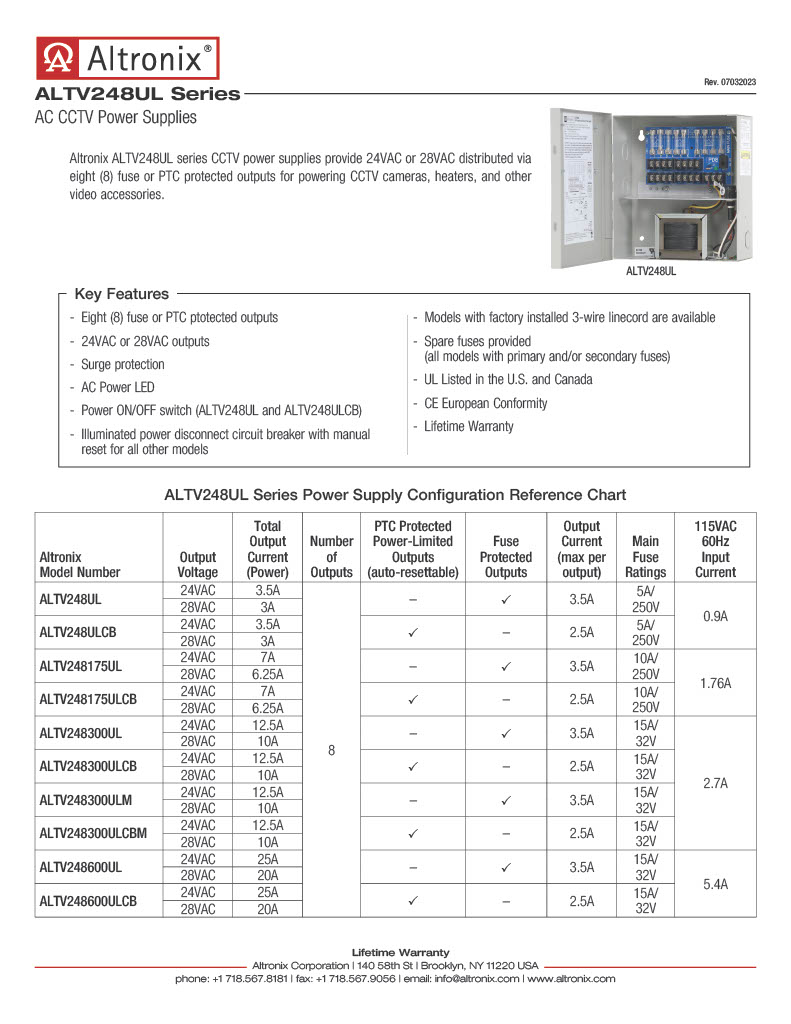

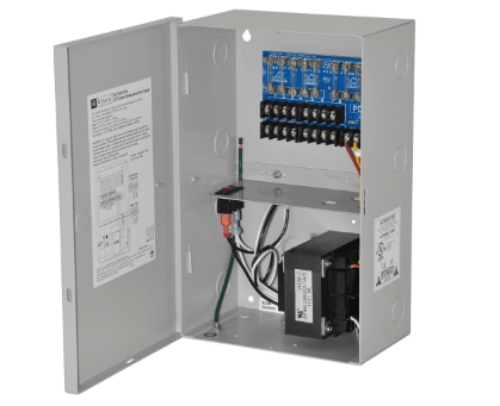

Altronix ALTV248175UL CCTV Power Supply, Input 115VAC 50/60Hz at 1.73A, 8 Fuse Protected Outputs, 24VAC at 7A or 28VAC at 6.25A, Grey Enclosure

Altronix ALTV248175UL CCTV Power Supply, Input 115VAC 50/60Hz at 1.73A, 8 Fuse Protected Outputs, 24VAC at 7A or 28VAC at 6.25A, Grey Enclosure, Lifetime Warranty

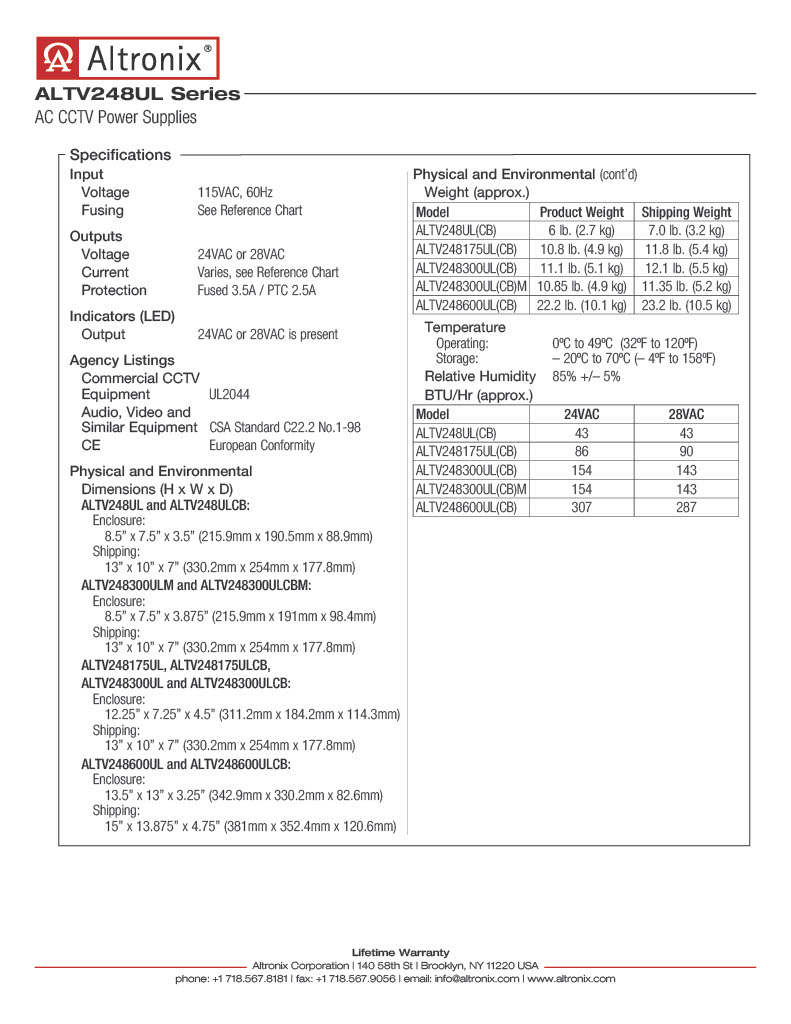

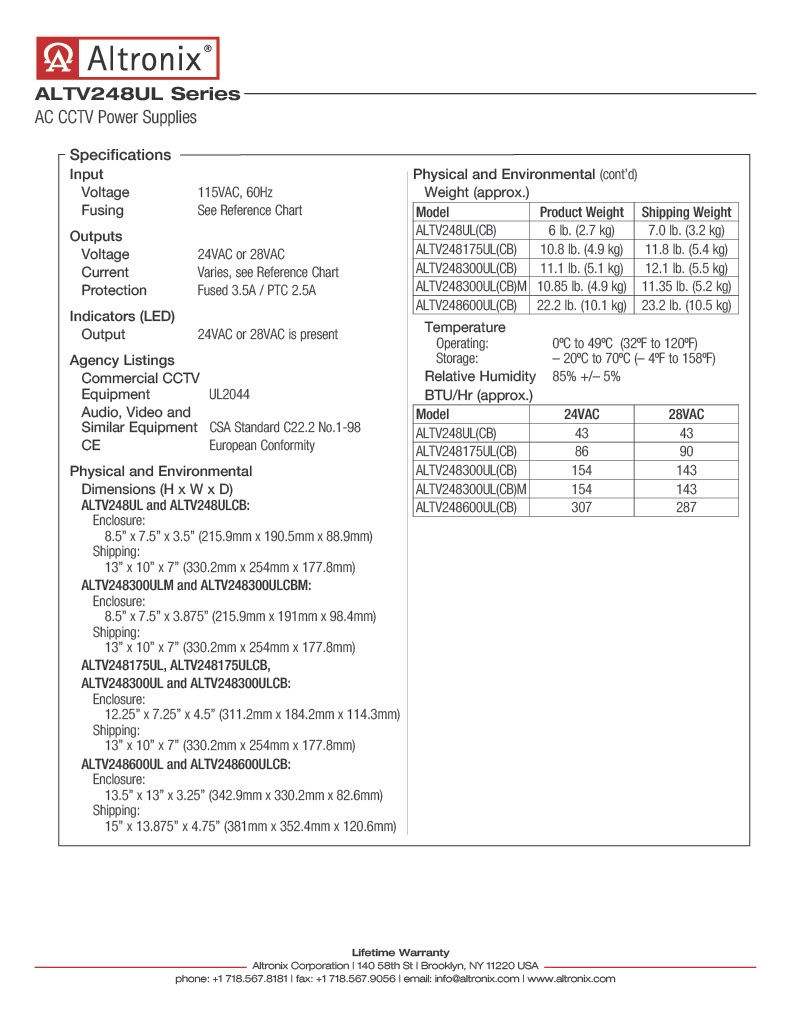

Specifications: Input:

115VAC, 50/60Hz, 1.73A. Output: 8 fuse protected outputs. 24VAC @ 7A (170VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (0.781A per device, 3.5A max.). Outputs are rated @ 3.5A. Surge suppression.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 24VAC: 86 BTU/Hr. 28VAC: 90 BTU/Hr. System AC input VA requirement: 198.95VA.

Features: Secondary fuse rated @ 10A/250V. AC power LED. Power ON/OFF switch. Spare fuses provided. (all models w/primary and/or secondary fuses).

Enclosure: Wall mount enclosure for indoor use.

Dimensions:7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:8.5 Lbs. (3.855 kg). - Shipping Weight: 9.5 Lbs. (4.309 kg).

Altronix ALTV248175UL,  ALTV248175UL,  ALTV248175UL Altronix,
