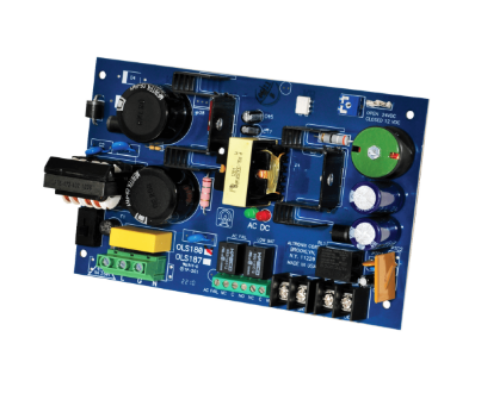

Altronix OLS180 Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board

Altronix OLS180 Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, Board, Lifetime Warranty

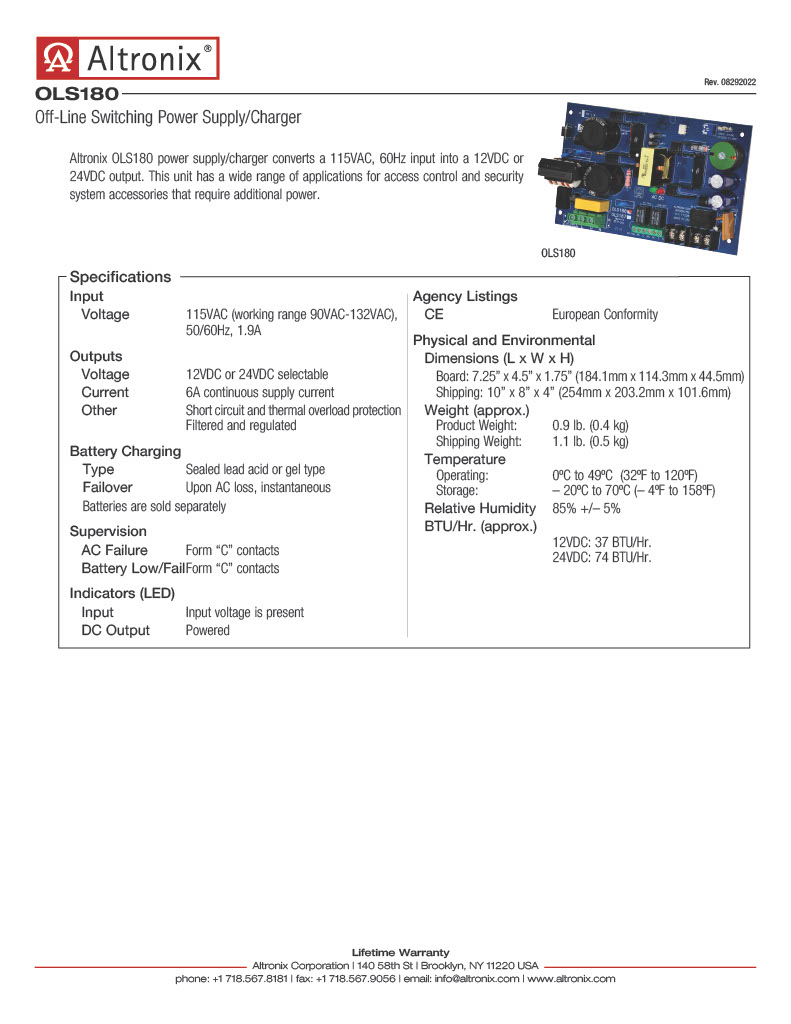

Specifications:

Input: 115VAC (working range 90VAC-132VAC), 50/60Hz, 1.9A. Output:

12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Features: Power ON/OFF switch. Includes battery leads.

Electrical:

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 37 BTU/Hr. - 24VDC: 74 BTU/Hr. System AC input VA requirement: 218.5VA.

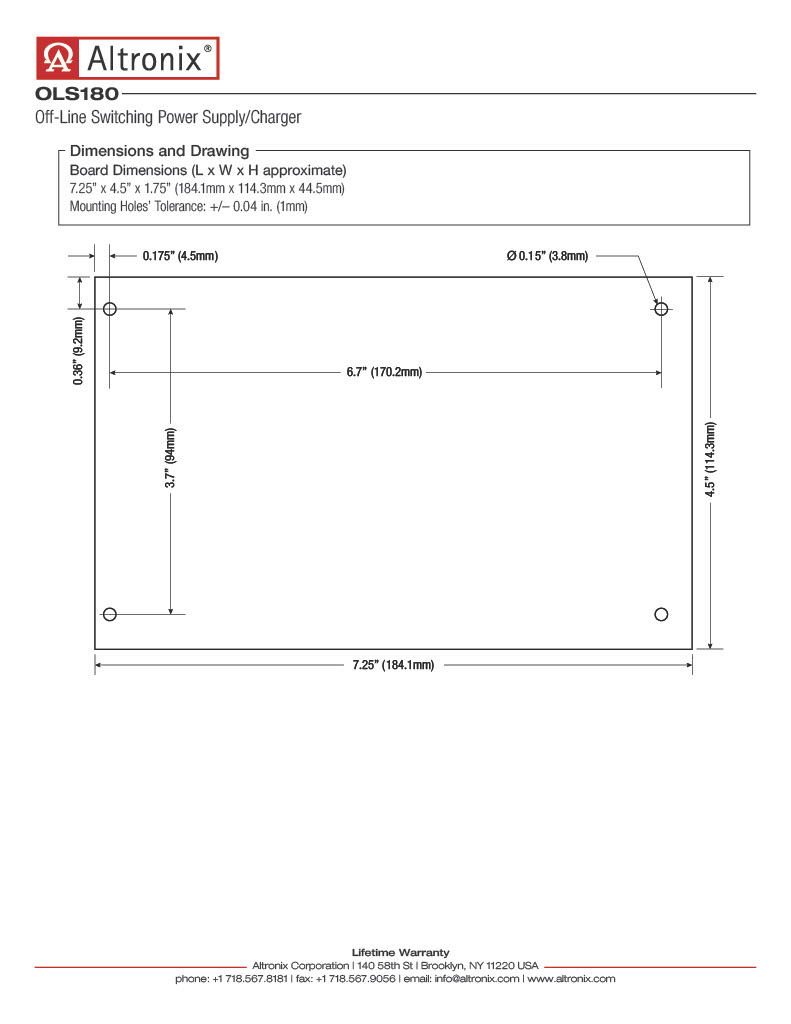

Dimensions (approximate): 4.5"W x 7.25"L x 1.79"H (114.3 mm W x 184.15 mm L x 45.466 mm H).

Product Weight:0.9 Lbs. (0.4 kg). - Shipping Weight: 1.1 Lbs. (0.5 kg).
