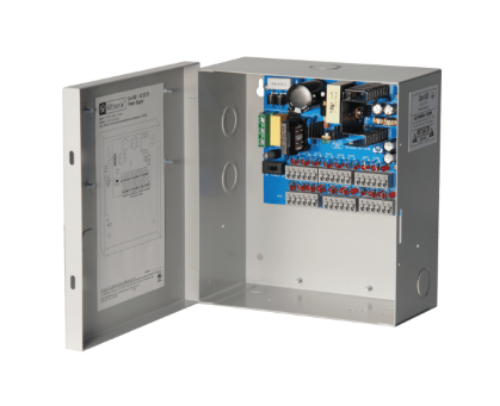

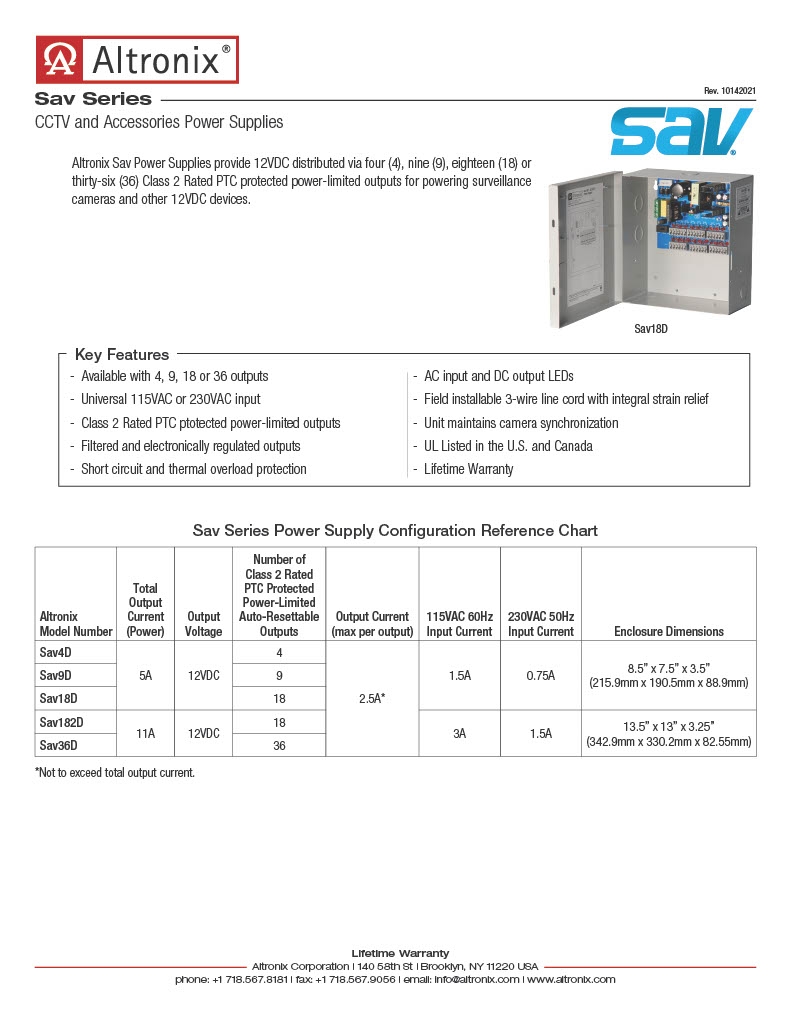

Altronix SAV18D CCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC,Grey Enclosure

Altronix SAV18D CCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC,Grey Enclosure, Lifetime Warranty

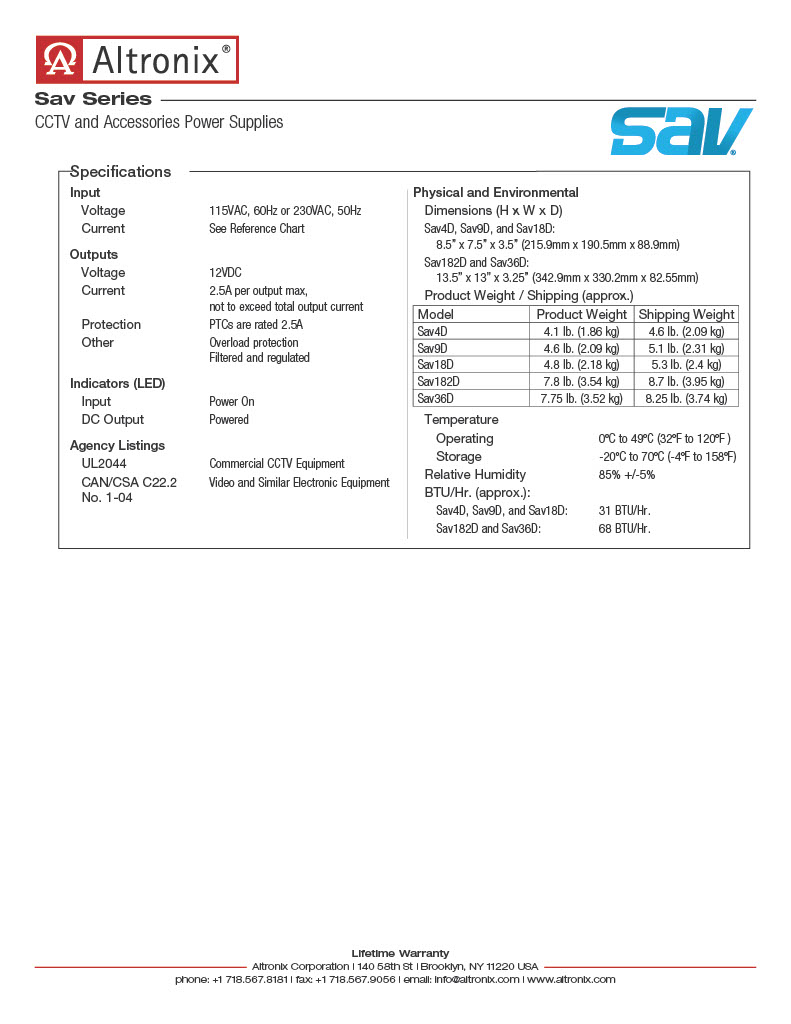

Specifications:

Input:115VAC60Hz, 1.5A / 230VAC 50Hz, 0.75A. Output:12VDC @ 5A total output current (0.27A per device, 2.5A max.). Eighteen (18) Class 2 Rated PTC protected power limited auto-resettable outputs. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Features:

Power LEDs. Field installable 3-wire line cord with integral strain relief. Unit maintains camera synchronization. Ease of installation saves time & eliminates costly labor.

Temperature:Operating 0 C to 49 C (32 Degree F to 120 Degree F). - Storage:  20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 31 BTU/Hr. System AC input VA requirement: 172.5VA.

Enclosure:Wall mount enclosure for indoor use.

Dimensions:7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts. Product Weight: 4.8 Lbs. (2.18 kg). Shipping Weight: 5.3 Lbs. (2.4 kg).   Lifetime Warranty

*Batteries sold separately
